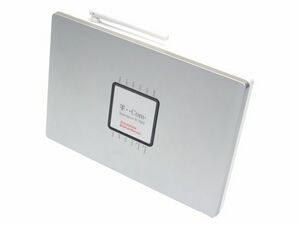

T-Com Speedport W700V

bg (G54)
ADSL Home Gateway
3rd Party Firmware
dd-wrt	Incompatible
OpenWrt	Incompatible
Tomato any flavor	Incompatible
Platform
Brand • Model • Rev	T-Com Speedport W700V
FCC ID	none specified
Board ID	ARV4528KW
Type	wireless router, dsl modem, analog phone gateway
CPU1	Infineon (Lantiq) PSB 50505
CPU1 Type	MIPS 4KEc
CPU1 Speed	235 MHz
Flash1 Chip	Eon EN29LV320B-70TCP
Flash1 Size	4 MiB4,194,304 B <br />32,768 Kib <br />4,096 KiB <br />32 Mib <br />0.00391 GiB <br />
RAM1 Size	32 MiB33,554,432 B <br />262,144 Kib <br />32,768 KiB <br />256 Mib <br />0.0313 GiB <br />
RAM1 Chip	PSC A2V28S40CTP-G6 x 2
ETH chip1	Infineon (Lantiq) PSB 50505
Switch	Infineon ADM6996I
Ethernet Port Count	1-100MbE-WAN 4-100MbE-LAN
Wired Standard	IEEE 802.3i/3u
802dot11 OUI: none specified Ethernet OUI: 00:12:BF (1 E, 6 W)
Stock FW OS	SuperTask!
Expansion IF types	none specified
Power	12 VDC, 1.2 A
Connector type	barrel 5.5 mm (OD) 2.1 mm (ID) 9 mm (LEN)
Serial Port (UART)	yes
Other
Default SSID: WLAN-mac Default IP address: 192.168.2.1 the IP 192.168.2.1 is used by 297 additional devices of which 6 are T-Com devices Default login user: blank Default login password: 0000 blank:0000 credentials used by 2 additional devices of which 1 are T-Com devices
Manuf/OEM/ODM	Arcadyan ARV4528 KW
Retail
(Est.) release date	June 2008
Radio 1
Chip1	Atheros AR2413A
Chip2	Atheros AR5212
Chip3	Atheros AR5112
Wireless interface OUI	none specified
Antenna Connector Type	none specified
Wireless Standard	IEEE 802.11b/g
802.11g	up to 54 Mbps
802.11b	up to 11 Mbps
WiFi Operating Frequency	2.4 GHz

For a list of all currently documented Atheros (QCA) chipsets with specifications, see Atheros.
For a list of all currently documented Infineon (Lantiq) chipsets with specifications, see Infineon.
For a list of all currently documented Infineon (Lantiq) chipsets with specifications, see Infineon.

For a list of all currently documented T-Com device with specifications, see T-Com.

• 54 Mbps - 2.4GHz 802.11g = G54 class

Overview

aka Speedport W 700V

Supported DSL standards:

ADSL2 = G.992.3, ADSL2+ = G.992.5, ADSL=G.992.1

This device would appear to be using the SuperTask! RTOS.

Specifications

• Speedport W700V Hardware on Kessler-Design (PCB)

• CPU: Infineon Amazon ADSL2+ (MIPS 4KEc Hard IP Core)

(OpenSSL 0.9.6a Crypto library, SSL/TLS Library

and CCL/ITRI VoIP Middleware SIP, SIPTX, UAcore)

• WLAN: Atheros AR2413 Single-Chip MAC/Baseband/Radio

Atheros AR5212 Multiprotocol MAC/Baseband Processor

Atheros AR5112 Dual Band Radio-on-a-Chip (RoC)

• VoIP: Infineon VINETIC-2CPE Voice Processor/Analog Termination

Infineon SLIC-DC Ringing SLIC with Integrated DC/DC Convertor

Infineon ISDN ST Transceiver on a Single Chip

• Switch: Infineon ADM6996 Samurai (5+1 port 10/100)

Links of Interest

Manual

JTAG-Serial Info

Serial

Boot log

boot log • >>

Version 1.0.1 Read EEPROM Jump to Flash ======================================================================= Wireless ADSL Gateway AMAZON Loader V0.93.0 build Nov 10 2006 17:16:22 Broad Net Technology, INC. ======================================================================= EON EN29LV320B bottom boot 16-bit mode found [GPIO FLOW] SetGpio() Begin .. [GPIO FLOW] SetGpio() End. Copying boot params.....DONE Press Space Bar 3 times to enter command mode ... Flash Checking [0] Passed. Unzipping firmware [0(2)] at 0x80002000 ... [ZIP 1] done In c_entry() function ... CPU : Yangtse Version Chip V1.3, CPU Speed 235 MHz, FPI Speed 117 MHz install_exception [INIT] Interrupt ... [GPIO FLOW] SetGpio() Begin .. [GPIO FLOW] SetGpio() End. ##### _ftext = 0x80002000 ##### _fdata = 0x804E56E0 ##### __bss_start = 0x80560E00 ##### end = 0x81907214 ##### Backup Data from 0x804E56E0 to 0x8190F214~0x8198A934 len 505632 ##### Backup Data completed ##### Backup Data verified [INIT] System Log Pool startup ... [INIT] MTinitialize .. [INIT] usrclk mips_counter_frequency:117500000 r4k_offset: 0001cafc(117500) init_US_counter : time1 = 14 , time2 = 32000055, diff 32000041 US_counter = 59 cnt1 32470186 cnt2 32471421, diff 1235 Runtime code version: 3.30.000 System startup... [INIT] Memory COLOR 0, 2012000 bytes .. [INIT] Memory COLOR 1, 1048576 bytes .. [INIT] Memory COLOR 2, 6096928 bytes .. InitCommSys: RESOURCE_BASE = 29, NUMRES = 640 InitCommSys: EVENT_BASE = 131, NUMEVT = 768 InitCommSys: MAILBOX_BASE = 6, NUMMBX = 64 rzMemory start: 0x80C8D7A4, end 0x810718B4, size 4079888 EON EN29LV320B bottom boot 16-bit mode found Set flash memory layout to Boot Parameters found !!! Bootcode version: V0.93.0 Serial number: J630328053 Hardware version: 01B fread_config_b> sizeof(struct III_Config_t) is 301108 EON EN29LV320B bottom boot 16-bit mode found fread_config_b> 27218 bytes read from flash fread_config_b> 312207 bytes decompressed successfully. my CFGVersionMagic = 33343536 my CFGsize = 301120, my CFGDescSize = 41520 my Version = 3.30.000 My CfgHexSize:11079 My CFGDescSize:41520 old CFGVersionMagic on flash = 33343536 CFGsize on flash = 301120, CFGDescSize on flash = 41520 Version on flash = 3.30.000 === Old CfgHexSize = 11079, Old CFGDescSize = 41520 Unzipping from 80A9E548 to 80A94308 ... [ZIP1] done Uncompressed size = 41518 Tail1 : END_III_Config_t Size of Old CFG_DESC is :41518!!! 1.useCfgDesc:1 Unzipping from 80A917A8 to 80A87568 ... [ZIP1] done Uncompressed size = 41518 2.useCfgDesc:1 Tail : END_III_Config_t useCfgDesc:3 Restore Config file from ver: 3.30.000 !!! DS_Tail:[t_ARV4528KW] RELEASE_BUF_AND_RETURN_OK - fread_config_b() #12550, in amazon/config.c - fread_config_b() #12555, in amazon/config.c ====xxx============================== -->425@-230;*(.4/.4/1,.4/3/1) -->425@-230;30(.1/.25/1,.1/3/1) -->600(.9/4.8) -->600(.3/.5,.3/3) -->600(.9/3.9) GPIO15 = 0 check_WAN_switch returns 0 GPIO15 = 0 default route: 0.0.0.0 BufferInit: BUF_HDR_SZ=128 BUF_ALIGN_SZ=4 BUFFER_OFFSET=192 BUF_BUFSZ0=384 BUF_BUFSZ1=2464 NUM_OF_B0=0 NUM_OF_B1=1000 BUF_POOL0_SZ=0 BUF_POOL1_SZ=2592000 sizeof(BUFFER0)=512,sizeof(BUFFER1)=2592 *BUF0=0x81389924 *BUF1=0x81110c14 Altgn *BUF0=0x81389930 *BUF1=0x81110c20 End at BUF0:0x81389930, BUF1:0x81389920 BUF0[0]=0x81389930 BUF1[0]=0x81110c20 buffer0 pointer init OK! buffer1 pointer init OK! [qm_lnk_init] CLOCKHZ=1000 ... [qm_lnk_init] add if 3 into QM link 0 [qm_cbq_enable] no QM attached [qm_cbq_detach] no QM is attached at link 0 f=3492148201/100000, ns_per_byte=1090005888/100000 New cls: id=0, bw=8080 ns/byte, maxd=0 ms, maxb=32, minb=2, avgpktsz=0, maxpktsz=0, offtime=1, parent=0, borrow=0 pri=0, maxidle=1, minidle=0, maxq=96, clsfg=17 f=2002645667/100000, ns_per_byte=1083109375/100000 New cls: id=1, bw=808080 ns/byte, maxd=0 ms, maxb=16, minb=1, avgpktsz=0, maxpktsz=0, offtime=1, parent=81905fcc, borrow=81905fcc pri=5, maxidle=1, minidle=0, maxq=48, clsfg=21 qm_cbq_attach(): cbqp->cbq_res=22 f=90439747/100000, ns_per_byte=1089990048/100000 New cls: id=2, bw=8162 ns/byte, maxd=0 ms, maxb=32, minb=4, avgpktsz=0, maxpktsz=0, offtime=1, parent=81905fcc, borrow=81905fcc pri=5, maxidle=1, minidle=0, maxq=48, clsfg=21 f=3846176767/100000, ns_per_byte=1072693248/100000 New cls: id=3, bw=799999999 ns/byte, maxd=0 ms, maxb=16, minb=4, avgpktsz=0, maxpktsz=0, offtime=1, parent=819049cc, borrow=819049cc pri=0, maxidle=0, minidle=0, maxq=96, clsfg=21 f=3846176767/100000, ns_per_byte=1072693248/100000 New cls: id=4, bw=799999999 ns/byte, maxd=0 ms, maxb=16, minb=4, avgpktsz=0, maxpktsz=0, offtime=1, parent=819049cc, borrow=819049cc pri=1, maxidle=0, minidle=0, maxq=48, clsfg=23 f=3846176767/100000, ns_per_byte=1072693248/100000 New cls: id=5, bw=799999999 ns/byte, maxd=0 ms, maxb=16, minb=4, avgpktsz=0, maxpktsz=0, offtime=1, parent=819049cc, borrow=819049cc pri=2, maxidle=0, minidle=0, maxq=48, clsfg=23 f=3846176767/100000, ns_per_byte=1072693248/100000 New cls: id=6, bw=799999999 ns/byte, maxd=0 ms, maxb=16, minb=4, avgpktsz=0, maxpktsz=0, offtime=1, parent=819049cc, borrow=819049cc pri=3, maxidle=0, minidle=0, maxq=48, clsfg=23 f=3846176767/100000, ns_per_byte=1072693248/100000 New cls: id=7, bw=799999999 ns/byte, maxd=0 ms, maxb=16, minb=4, avgpktsz=0, maxpktsz=0, offtime=1, parent=819049cc, borrow=819049cc pri=4, maxidle=0, minidle=0, maxq=48, clsfg=23 f=90439747/100000, ns_per_byte=1089990048/100000 New cls: id=8, bw=8162 ns/byte, maxd=0 ms, maxb=16, minb=4, avgpktsz=0, maxpktsz=0, offtime=1, parent=819049cc, borrow=819049cc pri=6, maxidle=1, minidle=0, maxq=48, clsfg=20 CLOCKHZ=1000 gConfig.Interface[0].IP_Addr = 127.0.0.1 gConfig.Interface[0].Subnet_Mask = 255.255.255.255 time = 08/01/2003, 00:00:00 TRAP(linkUp) : send ok! Interface 0 ip = 127.0.0.1 gConfig.Interface[1].IP_Addr = 192.168.2.1 gConfig.Interface[1].Subnet_Mask = 255.255.255.0 ether_register_vlan(1): binding not found ether_init(1): no tagged VLAN vlan=0, vid=1, port_mask=0xf switch_init ... Reg 0xA0: 0x1023 0xA1:0x7 0x12:0x3602 MAC Address: 00:12:bf:93:fd:5d time = 08/01/2003, 00:00:00 TRAP(linkUp) : send ok! Interface 1 ip = 192.168.2.1 gConfig.Interface[2].IP_Addr = 0.0.0.0 gConfig.Interface[2].Subnet_Mask = 0.0.0.0 ether_register_vlan(2): binding not found ether_init(2): no tagged VLAN PCI: Probing PCI hardware on host bus 0. *(AMAZON_RST_REQ)=0 *(AMAZON_RST_REQ+4)=fffc0002 *(AMAZON_PMU_PWDCR)=3fff CLOCK_CONTROL=0x2 FPI_SEGMENT_ENABLE=0x3ff PCI_MODE=0x1000103 1a168c 2900000 2000001 0 0 0 0 0 0 0 5001 44131113 0 44 0 1c0a0100 Autoconfig PCI channel 0x8054B43C Scanning bus 0, I/O 0xb2400000:0xb2600001, Mem 0xb2000000:0xb2400001 201 203 pci_devfn=0x70 vid=0x168c 201 203 00:0e.0 Class 0200: 168c:001a (rev 01) Mem at 0xb2000000 [size=0x10000] 108 Scanning bus 00 Found 00:70 [168c/001a] 000200 00 201 203 201 203 Fixups for bus 00 Bus scan for 00 returning with max=00 1a168c 2900006 2000001 8000 b2000000 0 0 0 0 0 5001 44131113 0 44 0 1c0a014e [HWLAN] ifno=2 irno=7 port=0x00000000 [INFO] wlan: 0.8.4.2 (Atheros/multi-bss) [INFO] ath_hal: 0.9.17.1 (AR5212, RF5111, RF5112, RF2413, DEBUG, REGOPS_FUNC) [INFO] ath_rate_atheros: Version 2.0.1 Copyright (c) 2001-2004 Atheros Communications, Inc, All Rights Reserved [INFO] ath_pci: 0.9.4.5 (Atheros/multi-bss) [PCI] devtag=00000070 probe=80069b10 [HWLAN] devtag = 00000070 [HWLAN] Vendor ID 0x168c [HWLAN] Device ID 0x1a [HWLAN] Base Addr 0xb2000000 [HWLAN] SVendor ID 0x1113 [HWLAN] SDevice ID 0x4413 [HWLAN] Revision ID 0x1 [HWLAN] interrupt vector 0x1 ath_pci_probe : ath_pci_probe : dev->name wifi0 call ath_attach 1 : dev 810fb6bc name 810fc368 wifi0 ath_attach: devid 0x1a dev 810fb6bc name wifi0 call ath_attach : dev 810fb6bc name 810fc368 wifi0 ATH_LOCK_INIT called ... ATH_INIT_TQUEUE() : 800776d4 ??? ATH_INIT_TQUEUE() : 8006fc9c ??? ATH_INIT_TQUEUE() : 800729bc ??? ATH_INIT_TQUEUE() : 8006fc64 ??? ATH_INIT_TQUEUE() : 8006fc2c ??? ATH_INIT_SCHED_TASK() ????? ATH_INIT_TQUEUE() : 80073e4c ??? ath_hal_attach : devid 26 ar5212Attach 1 ar5212Attach 2 [HWLAN] domain from EEPROM 8114 RF silent : 1 [HWLAN] Set HWLAN MAC as LAN MAC .. ar5212Attach: mac address read : 00:12:bf:93:fd:5f _ath_hal_attach: should call AH_MOD_INC_USE_COUNT??? Chan 2412: MaxPow = 90 MinPow = 0 Chan 2412: MaxPow = 88 MinPow = 0 Chan 2417: MaxPow = 90 MinPow = 0 Chan 2417: MaxPow = 87 MinPow = 0 Chan 2422: MaxPow = 90 MinPow = 0 Chan 2422: MaxPow = 87 MinPow = 0 Chan 2427: MaxPow = 90 MinPow = 0 Chan 2427: MaxPow = 87 MinPow = 0 Chan 2432: MaxPow = 90 MinPow = 0 Chan 2432: MaxPow = 86 MinPow = 0 Chan 2437: MaxPow = 90 MinPow = 0 Chan 2437: MaxPow = 86 MinPow = 0 Chan 2442: MaxPow = 90 MinPow = 0 Chan 2442: MaxPow = 86 MinPow = 0 Chan 2447: MaxPow = 90 MinPow = 0 Chan 2447: MaxPow = 86 MinPow = 0 Chan 2452: MaxPow = 90 MinPow = 0 Chan 2452: MaxPow = 86 MinPow = 0 Chan 2457: MaxPow = 90 MinPow = 0 Chan 2457: MaxPow = 86 MinPow = 0 Chan 2462: MaxPow = 90 MinPow = 0 Chan 2462: MaxPow = 86 MinPow = 0 Chan 2467: MaxPow = 90 MinPow = 0 Chan 2467: MaxPow = 86 MinPow = 0 Chan 2472: MaxPow = 90 MinPow = 0 Chan 2472: MaxPow = 86 MinPow = 0 ath_descdma_setup: rx DMA: 40 buffers 1 desc/buf ath_descdma_setup: rx DMA map: A0562DC0 (1600) -> 5647808x (1600) ath_descdma_setup: tx DMA: 200 buffers 2 desc/buf ath_descdma_setup: tx DMA map: A0563400 (16000) -> 5649408x (16000) ath_descdma_setup: beacon DMA: 4 buffers 1 desc/buf ath_descdma_setup: beacon DMA map: A0567280 (160) -> 5665408x (160) ath_xr_rate_setup: rate table too small (13 > 15) should assign open and hard_start_xmit in dev structure ?? SuperG is disabled ???????????????????????????? ieee80211_ifattach : should call _MOD_INC_USE RUNTASK id=2 rapi_tmr_task ... should call register_netdev() ??? wifi0: 11b rates: 1Mbps 2Mbps 5.5Mbps 11Mbps wifi0: 11g rates: 1Mbps 2Mbps 5.5Mbps 11Mbps 6Mbps 9Mbps 12Mbps 18Mbps 24Mbps 36Mbps 48Mbps 54Mbps wifi0: mac 7.8 phy 4.5 radio 5.6 wifi0: Use hw queue 1 for WME_AC_BE traffic wifi0: Use hw queue 0 for WME_AC_BK traffic wifi0: Use hw queue 2 for WME_AC_VI traffic wifi0: Use hw queue 3 for WME_AC_VO traffic wifi0: Use hw queue 8 for CAB traffic wifi0: Use hw queue 9 for beacons call ath_attach 2 : dev 810fb6bc name 810fc368 wifi0 [wifi0] : Atheros 5212 : mem=0xb2000000, irq=0 hw_base=0x00000005 time = 08/01/2003, 00:00:00 TRAP(linkUp) : send ok! [HWLAN] hwlan_ioctl() .. Interface 2 ip = 192.168.2.1 [HWLAN] hwlan_ioctl() .. gConfig.Interface[3].IP_Addr = 0.0.0.0 gConfig.Interface[3].Subnet_Mask = 0.0.0.0 ether_register_vlan(3): phy_idx=0 ether_register_vlan(3): record vlan-id 7 in entry 0 ether_init(3): registered to vlan 0, trunk 0 ether_init(3): vlan_tagged=0 ether_init(3): map to physical ifno 3 Init SAR ifno:3 QID:1 VPI/VCI:1/32 CBM_CELL_SIZE(64) * dev->cbm.free_cell_cnt(16384)=1048576 Addr=0x80b8c000 CBM_QD_SIZE(16) * AMAZON_ATM_MAX_QUEUE_NUM(32)=512 Addr=0x80b8bc00 amazon_atm_devs[0] = 0x80b8b890 registering device 0 ATM_UBR vpi 1 vci 32 itf 0 aal 5 tx cl 1 bw 0 mtu 0 rx cl 1 bw 4000 mtu 0 Class=1 QSB_CLK=58750000 MAX_PCR=0 PCR=4000 MIN_PCR=0 SCR=4000 MBS=10 CDV=0 tprs:0 twfq:16383 ts:0 taus:0 MAC Address: 00:12:bf:93:fd:5e Interface 3 ip = 0.0.0.0 gConfig.Interface[11].IP_Addr = 0.0.0.0 gConfig.Interface[11].Subnet_Mask = 0.0.0.0 IFLNK_PPPOE init : (Linkp)ifno = 11 idx = 2 IFLNK_PPPOE init : (Driverp)ifno = 11 idx = 3 Perferred method at Start = 0 Interface 11 ip = 0.0.0.0 gConfig.Interface[18].IP_Addr = 0.0.0.0 gConfig.Interface[18].Subnet_Mask = 0.0.0.0 ether_register_vlan(18): phy_idx=0 ether_register_vlan(18): record vlan-id 8 in entry 1 ether_init(18): registered to vlan 1, trunk 0 ether_init(18): vlan_tagged=1 ether_init(18): phy already initialized Interface 18 ip = 0.0.0.0 gConfig.Interface[20].IP_Addr = 0.0.0.0 gConfig.Interface[20].Subnet_Mask = 0.0.0.0 ether_register_vlan(20): binding not found ether_init(20): no tagged VLAN PCI: Probing PCI hardware on host bus 0. *(AMAZON_RST_REQ)=0 *(AMAZON_RST_REQ+4)=fffc0002 *(AMAZON_PMU_PWDCR)=3fff CLOCK_CONTROL=0x2 FPI_SEGMENT_ENABLE=0x3ff PCI_MODE=0x1000103 1a168c 2900000 2000001 0 0 0 0 0 0 0 5001 44131113 0 44 0 1c0a0100 Autoconfig PCI channel 0x8054B43C Scanning bus 0, I/O 0xb2400000:0xb2600001, Mem 0xb2000000:0xb2400001 201 203 pci_devfn=0x70 vid=0x168c 201 203 00:0e.0 Class 0200: 168c:001a (rev 01) Mem at 0xb2000000 [size=0x10000] 108 PCI: Bus 00 already known 1a168c 2900006 2000001 8000 b2000000 0 0 0 0 0 5001 44131113 0 44 0 1c0a014e [HWLAN] ifno=20 irno=7 port=0x00000000 time = 08/01/2003, 00:00:00 TRAP(linkUp) : send ok! [HWLAN] hwlan_ioctl() .. Interface 20 ip = 192.168.2.1 [HWLAN] hwlan_ioctl() .. gConfig.Interface[21].IP_Addr = 0.0.0.0 gConfig.Interface[21].Subnet_Mask = 0.0.0.0 ether_register_vlan(21): binding not found ether_init(21): no tagged VLAN PCI: Probing PCI hardware on host bus 0. *(AMAZON_RST_REQ)=0 *(AMAZON_RST_REQ+4)=fffc0002 *(AMAZON_PMU_PWDCR)=3fff CLOCK_CONTROL=0x2 FPI_SEGMENT_ENABLE=0x3ff PCI_MODE=0x1000103 1a168c 2900000 2000001 0 0 0 0 0 0 0 5001 44131113 0 44 0 1c0a0100 Autoconfig PCI channel 0x8054B43C Scanning bus 0, I/O 0xb2400000:0xb2600001, Mem 0xb2000000:0xb2400001 201 203 pci_devfn=0x70 vid=0x168c 201 203 00:0e.0 Class 0200: 168c:001a (rev 01) Mem at 0xb2000000 [size=0x10000] 108 PCI: Bus 00 already known 1a168c 2900006 2000001 8000 b2000000 0 0 0 0 0 5001 44131113 0 44 0 1c0a014e [HWLAN] ifno=21 irno=7 port=0x00000000 time = 08/01/2003, 00:00:00 TRAP(linkUp) : send ok! [HWLAN] hwlan_ioctl() .. Interface 21 ip = 192.168.2.1 [HWLAN] hwlan_ioctl() .. gConfig.Interface[22].IP_Addr = 0.0.0.0 gConfig.Interface[22].Subnet_Mask = 0.0.0.0 ether_register_vlan(22): binding not found ether_init(22): no tagged VLAN PCI: Probing PCI hardware on host bus 0. *(AMAZON_RST_REQ)=0 *(AMAZON_RST_REQ+4)=fffc0002 *(AMAZON_PMU_PWDCR)=3fff CLOCK_CONTROL=0x2 FPI_SEGMENT_ENABLE=0x3ff PCI_MODE=0x1000103 1a168c 2900000 2000001 0 0 0 0 0 0 0 5001 44131113 0 44 0 1c0a0100 Autoconfig PCI channel 0x8054B43C Scanning bus 0, I/O 0xb2400000:0xb2600001, Mem 0xb2000000:0xb2400001 201 203 pci_devfn=0x70 vid=0x168c 201 203 00:0e.0 Class 0200: 168c:001a (rev 01) Mem at 0xb2000000 [size=0x10000] 108 PCI: Bus 00 already known 1a168c 2900006 2000001 8000 b2000000 0 0 0 0 0 5001 44131113 0 44 0 1c0a014e [HWLAN] ifno=22 irno=7 port=0x00000000 time = 08/01/2003, 00:00:00 TRAP(linkUp) : send ok! [HWLAN] hwlan_ioctl() .. Interface 22 ip = 192.168.2.1 [HWLAN] hwlan_ioctl() .. gConfig.Interface[23].IP_Addr = 0.0.0.0 gConfig.Interface[23].Subnet_Mask = 0.0.0.0 ether_register_vlan(23): binding not found ether_init(23): no tagged VLAN PCI: Probing PCI hardware on host bus 0. *(AMAZON_RST_REQ)=0 *(AMAZON_RST_REQ+4)=fffc0002 *(AMAZON_PMU_PWDCR)=3fff CLOCK_CONTROL=0x2 FPI_SEGMENT_ENABLE=0x3ff PCI_MODE=0x1000103 1a168c 2900000 2000001 0 0 0 0 0 0 0 5001 44131113 0 44 0 1c0a0100 Autoconfig PCI channel 0x8054B43C Scanning bus 0, I/O 0xb2400000:0xb2600001, Mem 0xb2000000:0xb2400001 201 203 pci_devfn=0x70 vid=0x168c 201 203 00:0e.0 Class 0200: 168c:001a (rev 01) Mem at 0xb2000000 [size=0x10000] 108 PCI: Bus 00 already known 1a168c 2900006 2000001 8000 b2000000 0 0 0 0 0 5001 44131113 0 44 0 1c0a014e [HWLAN] ifno=23 irno=7 port=0x00000000 time = 08/01/2003, 00:00:00 TRAP(linkUp) : send ok! [HWLAN] hwlan_ioctl() .. Interface 23 ip = 192.168.2.1 [HWLAN] hwlan_ioctl() .. ruleCheck()> Group: 0, Error: Useless rule index will be truncated ruleCheck()> Group: 1, Error: Useless rule index will be truncated ruleCheck()> Group: 2, Error: Useless rule index will be truncated CBAC rule format check succeed !! reqCBACBuf()> init match pool, Have: 1000 Memory Address: 0x818a0a58 ~ 0x818a77d4 reqCBACBuf()> init timeGap pool, Have: 10000 Memory Address: 0x818a77d4 ~ 0x818d8528 reqCBACBuf()> init sameHost pool, Have: 2000 Memory Address: 0x818d8528 ~ 0x818e7f48 CBAC rule pool initialized !! [init_if] local_if_mask=0xf00007 [init_if] local_wiredif_mask=0x2 [init_if] local_wirelessif_mask=0xf00004 [init_if] localorVPN_if_mask=0xf00007 1 set_timer: ti=0 type=1 ina[00000000] gid[00000000] 2 set_timer: ti=0 type=1 ina[00000000] gid[00000000] 3 set_timer: ti=0 type=1 ina[00000000] gid[00000000] 11 set_timer: ti=0 type=1 ina[00000000] gid[00000000] 18 set_timer: ti=0 type=1 ina[00000000] gid[00000000] 20 set_timer: ti=0 type=1 ina[00000000] gid[00000000] 21 set_timer: ti=0 type=1 ina[00000000] gid[00000000] 22 set_timer: ti=0 type=1 ina[00000000] gid[00000000] 23 set_timer: ti=0 type=1 ina[00000000] gid[00000000] Init NAT data structure RUNTASK id=3 if_task if0... RUNTASK id=4 if_task if1... RUNTASK id=5 if_task if2... RUNTASK id=6 if_task if3... RUNTASK id=7 if_task if18... RUNTASK id=8 if_task if20... RUNTASK id=9 if_task if21... RUNTASK id=10 if_task if22... RUNTASK id=11 if_task if23... RUNTASK id=12 timer_task... RUNTASK id=13 conn_mgr... RUNTASK id=14 main_8021x... Build Day = Sep 7 2009 RUNTASK id=15 period_task... ========== ADSL Modem initialization OK ! ====== RUNTASK id=16 dhcp_daemon... RUNTASK id=17 dhcp_clt...on interface 18 [absread] flash_init: RAM's limitation is 32M [absread] flash_init: can not find any existing PFS image Try to extract it from flash Primary image: 0, flash area 2 ---[ ZIP1 head start in 0xB3050000 ]--- found signature: 78h 56h 34h 12h ulImgLens=1310401, LENGTH[2]-12=1900532 length checking OK [0] find End at 0xB318FC00 len=1310401 ---[ ZIP1 head start in 0xB3190000 ]--- found signature: 78h 56h 34h 12h ulImgLens=258336, LENGTH[2]-12=1900532 length checking OK [1] find End at 0xB31CF000 len=258336 ---[ ZIP1 head start in 0xB31CF400 ]--- found signature: 78h 56h 34h 12h ulImgLens=93086, LENGTH[2]-12=1900532 length checking OK [2] find End at 0xB31E5C00 len=93086 ---[ ZIP1 head start in 0xB31E6000 ]--- found signature: 78h 56h 34h 12h ulImgLens=150854, LENGTH[2]-12=1900532 length checking OK [3] find End at 0xB320AC00 len=150854 Image[1] at 0x0013FEC1, len = 1310401 Image[2] at 0x0003F120, len = 258336 Image[3] at 0x00016B9E, len = 93086 Image[4] at 0x00024D46, len = 150854 Unzipping from B3190000 to 81E42000 ... [ZIP1] done Uncompressed size = 1826183 lang_idx == 0 and img_cnt = 1 httpd: listen at 192.168.2.1:80 httpd: listen at 127.0.0.1:9000 RUNTASK httpd... RUNTASK id=21 SSLServer ... g_Server_Cert_Array=0x80b8b7fc RUNTASK id=22 SSLClient ... g_Client_Cert_Array=0x80b8b768 RUNTASK id=23 dnsproxy... RUNTASK id=24 dhcpd_mgmt_task... UPnP is disabled TR64 is enabled TR64 Device initialize success! slot=25 [0] Allocate mailbox 6 [0] Allocate mailbox 7 FirstUseDate:2010-06-22T10:46:37 Starting Multitask... RUNTASK id=28 CMV_task... [0] Allocate resource 29, FreeResource = 1 ifx_ssc_init : nbytes 136 ifx_ssc_set_baud: br = 2 call ifx_ssc_init() = 0 call ifx_ssc_open() = 0 SPI_Init! T_WLAN_INT=2 gSetting.CountryCode=0x8114 gSetting.Interface[T_WLAN_INT].Link_Type=1 RUNTASK id=30 apAppInit... RUNTASK id=33 ScanMIH_task... [qm_outbnd_bw_update] ... [qm_cbq_resetclst] n_totalcls=9 aft rst: id=0, bw=8080 ns/byte, maxd=0 ms, maxb=32, minb=2, avgpktsz=0, maxpktsz=0, offtime=1, parent=0, borrow=0 pri=0, maxidle=1, minidle=0, maxq=96, clsfg=17 aft rst: id=1, bw=808080 ns/byte, maxd=0 ms, maxb=16, minb=1, avgpktsz=0, maxpktsz=0, offtime=1, parent=81905fcc, borrow=81905fcc pri=5, maxidle=1, minidle=0, maxq=48, clsfg=21 aft rst: id=2, bw=8162 ns/byte, maxd=0 ms, maxb=32, minb=4, avgpktsz=0, maxpktsz=0, offtime=1, parent=81905fcc, borrow=81905fcc pri=5, maxidle=1, minidle=0, maxq=48, clsfg=21 aft rst: id=3, bw=800000000 ns/byte, maxd=0 ms, maxb=16, minb=4, avgpktsz=0, maxpktsz=0, offtime=1, parent=819049cc, borrow=819049cc pri=0, maxidle=0, minidle=0, maxq=96, clsfg=21 aft rst: id=4, bw=800000000 ns/byte, maxd=0 ms, maxb=16, minb=4, avgpktsz=0, maxpktsz=0, offtime=1, parent=819049cc, borrow=819049cc pri=1, maxidle=0, minidle=0, maxq=48, clsfg=23 aft rst: id=5, bw=800000000 ns/byte, maxd=0 ms, maxb=16, minb=4, avgpktsz=0, maxpktsz=0, offtime=1, parent=819049cc, borrow=819049cc pri=2, maxidle=0, minidle=0, maxq=48, clsfg=23 aft rst: id=6, bw=800000000 ns/byte, maxd=0 ms, maxb=16, minb=4, avgpktsz=0, maxpktsz=0, offtime=1, parent=819049cc, borrow=819049cc pri=3, maxidle=0, minidle=0, maxq=48, clsfg=23 aft rst: id=7, bw=800000000 ns/byte, maxd=0 ms, maxb=16, minb=4, avgpktsz=0, maxpktsz=0, offtime=1, parent=819049cc, borrow=819049cc pri=4, maxidle=0, minidle=0, maxq=48, clsfg=23 aft rst: id=8, bw=8162 ns/byte, maxd=0 ms, maxb=16, minb=4, avgpktsz=0, maxpktsz=0, offtime=1, parent=819049cc, borrow=819049cc pri=6, maxidle=1, minidle=0, maxq=48, clsfg=20 Unzip DSP firmware ... Unzipping from B31E6000 to 817DFE18 ... [ZIP1] [qm_cbq_enable] CBQ enabled at link: 0, DeQTask=34, wakeup event=12 low_pri_mtu: 2475 [qm_outbnd_bw_update] ok done Uncompressed size = 469056 ADSL Firmware: 1.4.2.4.0.2 [Annex B:0x4208 0x0] Code Swap Request, Page[ 3] Code Swap Request, Page[ 4] ifno2dot1x_if[2]=0 ifno2dot1x_if[24]=81 dot1x_wireless_if_mask=0x1000004 [main_8021x] dot1x_build_if_mapping() completed. apAppInit called ???? VOICE_DRV_Init Reset Duslic 2 High begin Reset Duslic end VINETIC module, version : 1.1.17.3 loaded Board_InitPlatform! Board_InitIrq! ADSL> READY [31] Allocate resource 30, FreeResource = 2 [31] Allocate resource 31, FreeResource = 3 [31] Allocate resource 32, FreeResource = 4 [31] Allocate resource 33, FreeResource = 5 [31] Allocate resource 34, FreeResource = 6 [31] Allocate resource 35, FreeResource = 7 Devnum 1, Ch 0 opened VINETIC_Open /dev/vin10: -2139504624 VINETIC_BasicDeviceInit! VINETIC_BasicDeviceInit: ret = 0! state ------> 20 Devnum 1, Ch 1 opened VINETIC_Open /dev/vin11: -2139504540 [31] Allocate resource 36, FreeResource = 8 [31] Allocate resource 37, FreeResource = 9 [31] Allocate resource 38, FreeResource = 10 [31] Allocate resource 39, FreeResource = 11 initVineticTapi: pInit = 0x80a3f450 bbd_get_block: bbd->buf = 0x80499300, bbd->size = 288 bbd_get_block: bbd->buf = 0x80499300, bbd->size = 288 bbd_get_block: bbd->buf = 0x80499300, bbd->size = 288 bbd_get_block: bbd->buf = 0x80499300, bbd->size = 288 VINETIC_Host_InitChip: nRev= 20832 VINETIC_Host_InitChip: pDev->nChipRev = 96 Dwld_LoadFirmware: P_RAM ret = 0 Dwld_LoadFirmware: D_RAM ret = 0 Dwld_LoadFirmware: ActivateEdsp ret = 0 Host_DownloadCram: bbd->buf = 0x80499300, bbd->size = 288 bbd_get_block: bbd->buf = 0x80499300, bbd->size = 288 bbd_get_block: bbd->buf = 0x80499300, bbd->size = 288 Host_SetSlic: bbd->buf = 0x80499300, bbd->size = 288 bbd_get_block: bbd->buf = 0x80499300, bbd->size = 288 Host_SetSlic: bbd_slic.data = 0x804993fa, bbd_slic.size = 2 bbd_get_block: bbd->buf = 0x80499300, bbd->size = 288 bbd_get_block: bbd->buf = 0x80499300, bbd->size = 288 initVineticTapi: ret = 0 VINETIC_Ioctl: Phone 1 IFXPHONE_INIT ok! VINETIC_Ioctl: Phone 1 IFXPHONE_SET_LINEFEED ok! Devnum 1, Ch 2 opened VINETIC_Open /dev/vin12: -2139503156 VINETIC_Ioctl: Phone 2 IFXPHONE_INIT ok! VINETIC_Ioctl: Phone 2 IFXPHONE_SET_LINEFEED ok! Devnum 1, Ch 3 opened VINETIC_Open /dev/vin13: -2139501772 VINETIC_Ioctl: Phone 3 IFXPHONE_INIT ok! VINETIC_Ioctl: Phone 3 IFXPHONE_SET_LINEFEED ok! Devnum 1, Ch 4 opened VINETIC_Open /dev/vin14: -2139500388 VINETIC_Ioctl: Phone 4 IFXPHONE_INIT ok! VINETIC_Ioctl: Phone 4 IFXPHONE_SET_LINEFEED ok! RUNTASK id=35 VINETIC_DRV_Task... [36] Allocate mailbox 8 RUNTASK id=36 VINETIC_T38_Task... RUNTASK id=38 FXO_flash_task... RUNTASK id=37 VOICE_API_task... Step 0 Duslic debug: open device! Board_DevOpen Board_DevOpen 4 77 ---------------------duslic_ResetChMember begin DUSLIC_GpioInit begin DUSLIC_GpioInit end ---------------------duslic_ResetChMember end DUSLIC_Init begin DUSLIC_GpioInit begin DUSLIC_GpioInit end Dwld_LoadCram begin 0 ----> Dwld_LoadCram end DUSLIC_GpioInit begin DUSLIC_GpioInit end Dwld_LoadCram begin 1 ----> Dwld_LoadCram end DUSLIC_Init end DUSLIC_Set_Pcm begin DUSLIC_Set_Pcm End init_DTMF_data: time 3095 cpc5621_open: open devNum=0, chNum=0, pDev=00000000, CPC5621_Devices=8054b9f0 Drv_CPC5621_Init: 0, 1 Drv_CPC5621_Init end pDev->devHandle 807A7AA4 cpc5621_open: open devNum=0, chNum=0, pDev=80b7ff70 before pDev->bOpen == TRUE after pDev->bOpen == TRUE CPC_IO_InstanceInit pDev 80B7FF70 begin before DUSLIC_GpioReserve pDev 80B7FF70 pDev->devHandle 807A7AA4 before DUSLIC_GpioConfig 0 :::::::::::::_GpioConfig begin 807A7AA4 Gpio->nIO 0 :::GPIO_MODE_OUTPUT :::GPIO_INT_DUP_605 :::::::::::::_GpioConfig end before DUSLIC_GpioConfig 1 before DUSLIC_GpioConfig 2 :::::::::::::_GpioConfig begin 807A7AA4 Gpio->nIO 1 :::GPIO_MODE_INPUT :::GPIO_MODE_INT :::GPIO_INT_FALLING :::GPIO_INT_DUP_605 :::::::::::::_GpioConfig end before DUSLIC_GpioConfig 3 :::::::::::::_GpioConfig begin 807A7AA4 Gpio->nIO 2 :::GPIO_MODE_INPUT :::GPIO_MODE_INT :::GPIO_INT_RISING :::GPIO_INT_FALLING :::GPIO_INT_DUP_605 :::::::::::::_GpioConfig end before DUSLIC_GpioConfig 4 :::::::::::::_GpioConfig begin 807A7AA4 Gpio->nIO 3 :::GPIO_MODE_INPUT :::GPIO_MODE_INT :::GPIO_INT_FALLING :::GPIO_INT_DUP_605 :::::::::::::_GpioConfig end force_daa_offhook ch 2 onoff 1 time 3111 CID_Detect CH 2 onoff 0 TAPI_LL_Phone_CidRx_Stop------------------->clear FIFO FOR CID DATA FXO_PolState_DTMFCID --> Disable DTMF CID [HWLAN] [2] rapi_tmr_task running [dhcp_clt] enable dhcp client in interface THS[18] force_daa_offhook ch 2 onoff 0 time 3144 CID_Detect CH 2 onoff 1 FXO_PolState_DTMFCID --> Detect Polarity Changed Enable DTMF CID TEL_DRV_Init TEL_DRV_StartDetVOIPHook TEL_DRV_StartDetDTMF TEL_DRV_StartDetCEDTone TEL_DRV_StartDetVOIPHook TEL_DRV_StartDetDTMF TEL_DRV_StartDetCEDTone TEL_DRV_InitTone When * the value is 60000 When * the value is 60000 sys_voip_cfg->cpt.reorder = 425@-230;20(0.24/0.24/1) TEL_DRV_TONE_REORDER duration = 480 TEL_DRV_InitRing TEL_DRV_SetImpedance >>>> STUN Setting <<<< stun Enable : 1 stun Test Enable : 1 stun Server : "", IP : 0.0.0.0 stun Port : 3478 stun Server : "", IP : 0.0.0.0 stun Port : 3478 stun Server : "", IP : 0.0.0.0 stun Port : 3478 stun Server : "", IP : 0.0.0.0 stun Port : 3478 stun Server : "", IP : 0.0.0.0 stun Port : 3478 stun Server : "", IP : 0.0.0.0 stun Port : 3478 stun Server : "", IP : 0.0.0.0 stun Port : 3478 stun Server : "", IP : 0.0.0.0 stun Port : 3478 stun Server : "", IP : 0.0.0.0 stun Port : 3478 stun Server : "", IP : 0.0.0.0 stun Port : 3478 stun Server : "", IP : 0.0.0.0 stun Port : 3478 stun Server : "", IP : 0.0.0.0 stun Port : 3478 stun Server : "", IP : 0.0.0.0 stun Port : 3478 stun Server : "", IP : 0.0.0.0 stun Port : 3478 stun Server : "", IP : 0.0.0.0 stun Port : 3478 stun Server : "", IP : 0.0.0.0 stun Port : 3478 stun Server : "", IP : 0.0.0.0 stun Port : 3478 stun Server : "", IP : 0.0.0.0 stun Port : 3478 stun Server : "", IP : 0.0.0.0 stun Port : 3478 stun Server : "", IP : 0.0.0.0 stun Port : 3478 RUNTASK id=39 STUNC_InitTask() ... [31] Allocate resource 40, FreeResource = 12 [31] Allocate mailbox 9 VOICE_DRV_SetRxDataHookFunc VOICE_DRV_SetRxDataHookFunc TEL_MGR_Init [31] Allocate resource 41, FreeResource = 13 tel_mgr_mutex=41 [31] Allocate mailbox 10 TEL_DM_Init [31] Allocate resource 42, FreeResource = 14 [31] Allocate resource 43, FreeResource = 15 TEL_DRV_SetPhoneEvtHookFunc TEL_DRV_SetLineEvtHookFunc TEL_MGR_VoiceChannelInit TEL_MGR_SetVoiceChannel 1 TEL_MGR_SetVoiceChannel: ec mode is 16ms TEL_MGR_SetPhoneEC VOICE_DRV_SetEC TEL_MGR_SetPhoneVAD VOICE_DRV_SetVAD TEL_MGR_SetPhoneGain VOICE_DRV_SetGain ------------------------>TAPI_LL_Phone_Volume Ch 0 TxGain 0 RxGain -7 TEL_MGR_SetPhoneJitter VOICE_DRV_SetJitter TEL_MGR_SetVoiceChannel 2 TEL_MGR_SetVoiceChannel: ec mode is 16ms TEL_MGR_SetPhoneEC VOICE_DRV_SetEC TEL_MGR_SetPhoneVAD VOICE_DRV_SetVAD TEL_MGR_SetPhoneGain VOICE_DRV_SetGain ------------------------>TAPI_LL_Phone_Volume Ch 1 TxGain 0 RxGain -7 TEL_MGR_SetPhoneJitter VOICE_DRV_SetJitter Create task ISDN_GetCCBSCFStatus 41 SIP_CALLBACK_EnableDebug SIP_CORE_EnableDebug SIP_CORE_Init [31] Allocate resource 44, FreeResource = 16 [31] Allocate mailbox 11 SIP_CORE_SetSipStatus SIP_CORE_CreateTask >>> SIP_CORE_Task SIP_CORE_Set_Codec_Bandwidth : Bandwidth_Control = 1 SIP_CORE_Set_Codec_Bandwidth : ADSL / VDSL SIP_CORE_Set_Codec_Bandwidth : Codec_Bandwidth[def_fax_call] = 106 SIP_CORE_Set_Codec_Bandwidth : Codec_Bandwidth[def_g711_call] = 106 SIP_CORE_Set_Codec_Bandwidth : Codec_Bandwidth[def_g726_32_call] = 85 SIP_CORE_Set_Codec_Bandwidth : Codec_Bandwidth[def_g726_24_call] = 64 SIP_CORE_Set_Codec_Bandwidth : Codec_Bandwidth[def_g729_call] = 43 [31] Allocate resource 45, FreeResource = 17 [21] SSLServer> SSLServer() run [21] ssld_conf_init> ssl server info: [21] PrivateKey= [21] MyCertificate= [21] CaCertificate= [21] SSL_method=31 [21] verify_mode=0 [21] cipher_suites=ADH:SHA1:HIGH:EXP [21] tftp_server_ip=140.92.61.131 [21] fn_myCerttificate=ServCert.pem [21] fn_privateKey=PrivKey.pem [21] fn_caCertificate=CaCert.pem [21] ssld_conf_init> ssl server info end: PKCS12_PBE_add> PKCS12_PBE_add> support RC4 PKCS12_PBE_add> support DES PKCS12_PBE_add> support RC2 [21] pCtx=0x80b7da60 in ssld_conf_init [21] ssld_ctx_reset_cert> re-LoadCACertificate( 3rdCA ) ok!! [21] ssld_ctx_reset_cert> re-LoadCACertificate( 2ndCA ) ok!! [21] ssld_ctx_reset_cert> re-LoadCACertificate( 1stCA ) ok!!ssld_ctx_reset_cert> this is pkcs12 type certificate [21] CRYPTO_realloc_clean> malloc_ex_func=0x802b3a58, /cygdrive/e/projects/ipone/source/firmware-ipone/secure/ssl/0.9.8e/openssl/crypto/mem.c 480 parse_pk12> /cygdrive/e/projects/ipone/source/firmware-ipone/secure/ssl/0.9.8e/openssl/crypto/pkcs12/p12_kiss.c 154 parse_pk12> /cygdrive/e/projects/ipone/source/firmware-ipone/secure/ssl/0.9.8e/openssl/crypto/pkcs12/p12_kiss.c 156 parse_pk12> /cygdrive/e/projects/ipone/source/firmware-ipone/secure/ssl/0.9.8e/openssl/crypto/pkcs12/p12_kiss.c 158 parse_pk12> /cygdrive/e/projects/ipone/source/firmware-ipone/secure/ssl/0.9.8e/openssl/crypto/pkcs12/p12_kiss.c 160 parse_pk12> /cygdrive/e/projects/ipone/source/firmware-ipone/secure/ssl/0.9.8e/openssl/crypto/pkcs12/p12_kiss.c 162 parse_pk12> /cygdrive/e/projects/ipone/source/firmware-ipone/secure/ssl/0.9.8e/openssl/crypto/pkcs12/p12_kiss.c 168 parse_pk12> /cygdrive/e/projects/ipone/source/firmware-ipone/secure/ssl/0.9.8e/openssl/crypto/pkcs12/p12_kiss.c 170 parse_pk12> /cygdrive/e/projects/ipone/source/firmware-ipone/secure/ssl/0.9.8e/openssl/crypto/pkcs12/p12_kiss.c 176 parse_pk12> /cygdrive/e/projects/ipone/source/firmware-ipone/secure/ssl/0.9.8e/openssl/crypto/pkcs12/p12_kiss.c 184 parse_pk12> /cygdrive/e/projects/ipone/source/firmware-ipone/secure/ssl/0.9.8e/openssl/crypto/pkcs12/p12_kiss.c 158 parse_pk12> /cygdrive/e/projects/ipone/source/firmware-ipone/secure/ssl/0.9.8e/openssl/crypto/pkcs12/p12_kiss.c 160 parse_pk12> /cygdrive/e/projects/ipone/source/firmware-ipone/secure/ssl/0.9.8e/openssl/crypto/pkcs12/p12_kiss.c 162 parse_pk12> /cygdrive/e/projects/ipone/source/firmware-ipone/secure/ssl/0.9.8e/openssl/crypto/pkcs12/p12_kiss.c 165 parse_pk12> /cygdrive/e/projects/ipone/source/firmware-ipone/secure/ssl/0.9.8e/openssl/crypto/pkcs12/p12_kiss.c 170 parse_pk12> /cygdrive/e/projects/ipone/source/firmware-ipone/secure/ssl/0.9.8e/openssl/crypto/pkcs12/p12_kiss.c 176 parse_pk12> /cygdrive/e/projects/ipone/source/firmware-ipone/secure/ssl/0.9.8e/openssl/crypto/pkcs12/p12_kiss.c 184 parse_pk12> /cygdrive/e/projects/ipone/source/firmware-ipone/secure/ssl/0.9.8e/openssl/crypto/pkcs12/p12_kiss.c 188 parse_pk12> /cygdrive/e/projects/ipone/source/firmware-ipone/secure/ssl/0.9.8e/openssl/crypto/pkcs12/p12_kiss.c 190 [21] CRYPTO_realloc_clean> malloc_ex_func=0x802b3a58, /cygdrive/e/projects/ipone/source/firmware-ipone/secure/ssl/0.9.8e/openssl/crypto/mem.c 480 [21] CRYPTO_realloc_clean> malloc_ex_func=0x802b3a58, /cygdrive/e/projects/ipone/source/firmware-ipone/secure/ssl/0.9.8e/openssl/crypto/mem.c 480 [21] CRYPTO_realloc_clean> malloc_ex_func=0x802b3a58, /cygdrive/e/projects/ipone/source/firmware-ipone/secure/ssl/0.9.8e/openssl/crypto/mem.c 480 [21] ssld_ctx_reset_cert : re-LoadServerCertAndKey() ok!! [21] ssld_conf_init> ssld_conf_init() ok [21] SSLServer> bind SSL server socket! [21] SSLServer> listen SSL's basic IO socket! [22] SSLClient> SSLClient() run [22] sslc_conf_init> ssl client info: [22] PrivateKey= [22] MyCertificate= [22] CaCertificate= [22] SSL_method=31 [22] verify_mode=1 [22] cipher_suites=ADH:SHA1:HIGH:EXP [22] tftp_server_ip=140.92.61.131 [22] fn_myCerttificate=ServCert.pem [22] fn_privateKey=PrivKey.pem [22] fn_caCertificate=CaCert.pem [22] sslc_conf_init> ssl client info end: [22] sslc_conf_init> pCtx=0x80b66d5c in ssld_conf_init [22] sslc_ctx_reset_cert> re-LoadCACertificate( 3rdCA ) ok!! [22] sslc_ctx_reset_cert> re-LoadCACertificate( 2ndCA ) ok!! [22] sslc_ctx_reset_cert> re-LoadCACertificate( 1stCA ) ok!!sslc_ctx_reset_cert> this is pkcs12 type certificate [22] CRYPTO_realloc_clean> malloc_ex_func=0x802b3a58, /cygdrive/e/projects/ipone/source/firmware-ipone/secure/ssl/0.9.8e/openssl/crypto/mem.c 480 parse_pk12> /cygdrive/e/projects/ipone/source/firmware-ipone/secure/ssl/0.9.8e/openssl/crypto/pkcs12/p12_kiss.c 154 parse_pk12> /cygdrive/e/projects/ipone/source/firmware-ipone/secure/ssl/0.9.8e/openssl/crypto/pkcs12/p12_kiss.c 156 parse_pk12> /cygdrive/e/projects/ipone/source/firmware-ipone/secure/ssl/0.9.8e/openssl/crypto/pkcs12/p12_kiss.c 158 parse_pk12> /cygdrive/e/projects/ipone/source/firmware-ipone/secure/ssl/0.9.8e/openssl/crypto/pkcs12/p12_kiss.c 160 parse_pk12> /cygdrive/e/projects/ipone/source/firmware-ipone/secure/ssl/0.9.8e/openssl/crypto/pkcs12/p12_kiss.c 162 parse_pk12> /cygdrive/e/projects/ipone/source/firmware-ipone/secure/ssl/0.9.8e/openssl/crypto/pkcs12/p12_kiss.c 168 parse_pk12> /cygdrive/e/projects/ipone/source/firmware-ipone/secure/ssl/0.9.8e/openssl/crypto/pkcs12/p12_kiss.c 170 parse_pk12> /cygdrive/e/projects/ipone/source/firmware-ipone/secure/ssl/0.9.8e/openssl/crypto/pkcs12/p12_kiss.c 176 parse_pk12> /cygdrive/e/projects/ipone/source/firmware-ipone/secure/ssl/0.9.8e/openssl/crypto/pkcs12/p12_kiss.c 184 parse_pk12> /cygdrive/e/projects/ipone/source/firmware-ipone/secure/ssl/0.9.8e/openssl/crypto/pkcs12/p12_kiss.c 158 parse_pk12> /cygdrive/e/projects/ipone/source/firmware-ipone/secure/ssl/0.9.8e/openssl/crypto/pkcs12/p12_kiss.c 160 parse_pk12> /cygdrive/e/projects/ipone/source/firmware-ipone/secure/ssl/0.9.8e/openssl/crypto/pkcs12/p12_kiss.c 162 parse_pk12> /cygdrive/e/projects/ipone/source/firmware-ipone/secure/ssl/0.9.8e/openssl/crypto/pkcs12/p12_kiss.c 165 parse_pk12> /cygdrive/e/projects/ipone/source/firmware-ipone/secure/ssl/0.9.8e/openssl/crypto/pkcs12/p12_kiss.c 170 parse_pk12> /cygdrive/e/projects/ipone/source/firmware-ipone/secure/ssl/0.9.8e/openssl/crypto/pkcs12/p12_kiss.c 176 parse_pk12> /cygdrive/e/projects/ipone/source/firmware-ipone/secure/ssl/0.9.8e/openssl/crypto/pkcs12/p12_kiss.c 184 parse_pk12> /cygdrive/e/projects/ipone/source/firmware-ipone/secure/ssl/0.9.8e/openssl/crypto/pkcs12/p12_kiss.c 188 parse_pk12> /cygdrive/e/projects/ipone/source/firmware-ipone/secure/ssl/0.9.8e/openssl/crypto/pkcs12/p12_kiss.c 190 [22] CRYPTO_realloc_clean> malloc_ex_func=0x802b3a58, /cygdrive/e/projects/ipone/source/firmware-ipone/secure/ssl/0.9.8e/openssl/crypto/mem.c 480 [22] CRYPTO_realloc_clean> malloc_ex_func=0x802b3a58, /cygdrive/e/projects/ipone/source/firmware-ipone/secure/ssl/0.9.8e/openssl/crypto/mem.c 480 [22] CRYPTO_realloc_clean> malloc_ex_func=0x802b3a58, /cygdrive/e/projects/ipone/source/firmware-ipone/secure/ssl/0.9.8e/openssl/crypto/mem.c 480 [22] sslc_ctx_reset_cert : re-LoadServerCertAndKey() ok!! [22] sslc_conf_init> sslc_conf_init() ok [22] SSLClient> want to bind socket for client application! SSDP Initialization completed... ScanMIH_task> DHCP ip give: 192.168.2.100 ~ 199, range: 100 >> Parse Service 'urn:dslforum-org:service:DeviceInfo:1' : TRUE >> Parse Service 'urn:dslforum-org:service:DeviceConfig:1' : TRUE >> Parse Service 'urn:dslforum-org:service:Layer3Forwarding:1' : TRUE >> Parse Service 'urn:dslforum-org:service:LANConfigSecurity:1' : TRUE >> Parse Service 'urn:dslforum-org:service:ManagementServer:1' : TRUE >> Parse Service 'urn:dslforum-org:service:Time:1' : TRUE >> Parse Service 'urn:dslforum-org:service:UserInterface:1' : TRUE >> Parse Service 'urn:dslforum-org:service:X_VoIP:1' : TRUE >> Parse Service 'urn:dslforum-org:service:LANHostConfigManagement:1' : TRUE >> Parse Service 'urn:dslforum-org:service:LANEthernetInterfaceConfig:1' : TRUE >> Parse Service 'urn:dslforum-org:service:WLANConfiguration:1' : TRUE >> Parse Service 'urn:dslforum-org:service:Hosts:1' : TRUE >> Parse Device 'urn:dslforum-org:device:LANDevice:1' : TRUE >> Parse Service 'urn:dslforum-org:service:WANCommonInterfaceConfig:1' : TRUE >> Parse Service 'urn:dslforum-org:service:WANDSLInterfaceConfig:1' : TRUE >> Parse Service 'urn:dslforum-org:service:WANEthernetInterfaceConfig:1' : TRUE >> Parse Service 'urn:dslforum-org:service:WANDSLConnectionManagement:1' : TRUE >> Parse Service 'urn:dslforum-org:service:WANDSLLinkConfig:1' : TRUE >> Parse Service 'urn:dslforum-org:service:WANEthernetLinkConfig:1' : TRUE >> Parse Service 'urn:dslforum-org:service:WANPPPConnection:1' : TRUE >> Parse Device 'urn:dslforum-org:device:WANConnectionDevice:1' : TRUE >> Parse Device 'urn:dslforum-org:device:WANDevice:1' : TRUE >> Parse Device 'urn:dslforum-org:device:InternetGatewayDevice:1' : TRUETR64::TR64_Init> RUNTASK id=31 TR64_ProcessRequest... RUNTSK l2s3 25 RUNTSK l3l2 45 RUNTSK lll2 46 RUNTSK decrTout 47 ISDN: Q_L2S3:3, Q_L3L2:4, Q_LLL2:5 !IFX_FA_Init: IFIN_FA_StatusBitsInfo error TEL_DRV_EOFEvtCB: channelId(0) !TEL_MGR_ProcPhoneFaxStop !TEL_MGR_ProcPhoneFaxStop: no active call !TEL_MGR_ProcMsg: TEL_MGR_ProcPhoneFaxStop apAppInit called 2 ???? Atheros_NetTask running ... ATH_LOCK called ... GetWdsIfno : return 2 , T_WDS_INT 20 dev 8107d0cc sizeof(struct ath_vap) 1728 sc->sc_rc->arc_vap_space 4 ieee80211_vap_setup : name wlan0 should asigned hard_start_xmit and open in dev structure ??? vap->iv_myaddr : 00:12:bf:93:fd:5f ic->ic_myaddr : 00:12:bf:93:fd:5f should call ieee80211_sysctl_vattach() ??? ===ath_vap_create opmode 6=== ===ath_vap_create:1 avp->av_bcbuf 8089bdc8=== ath_vap_create : sc->sc_stagbeacons 1 814f4448 ===ath_vap_create:2 avp->av_bcbuf 8089bdc8=== ieee80211_reset_bss: old bss 00000000 should call register_netdevice ??? ===ath_vap_create:3 avp->av_bcbuf 8089bdc8=== ATH_UNLOCK called ... Basic 11g Rates: (1,2, 5.5, 11) wlan_confree_do> start ... ------------------->change mode to 3 ,Success wlan_confree_do> start ... Set ESSID to WLAN-93FD23, Success wlan_confree_do> start ... Set channel to 9, Success [HWLAN] gSetting.BasicRate=f Basic 11g Rates: (1,2, 5.5, 11) wlan_confree_do> start ... ------------------->change mode to 3 ,Success request_module : wlan_acl ??? ATH_LOCK called ... should call ath_hal_setcapability -> HAL_CAP_TPC??? ar5212SetTransmitPower : AH_PRIVATE(ah)->ah_tpScale 0 ar5212SetTransmitPower : AH_PRIVATE(ah)->ah_tpScale 0 ----> ieee80211_start_running : dev : 8107d0cc flags 00000000 ATH_UNLOCK called ... rapi_tmr_cancel: cookie 814f4d84, Initialized=1 00000000 814f4020 cookie 814f4d84 814f4020 rapi_tmr_cancel: can't find time structure cookie 814f4d84 rapi_tmr_cancel: cookie 8089a2f0, Initialized=1 00000000 814f4020 cookie 8089a2f0 814f4020 rapi_tmr_cancel: can't find time structure cookie 8089a2f0 ar5212SetTransmitPower : AH_PRIVATE(ah)->ah_tpScale 0 rapi_tmr_cancel: cookie 814f4d84, Initialized=1 00000000 814f4020 cookie 814f4d84 814f4020 rapi_tmr_cancel: can't find time structure cookie 814f4d84 ath_beacon_alloc : rapi_tmr_cancel: cookie 8089a2f0, Initialized=1 00000000 814f4020 cookie 8089a2f0 814f4020 rapi_tmr_cancel: can't find time structure cookie 8089a2f0 apAppInit : dev->flags 00001001 [HWLAN] Ready Atheros_NetTask return ... [signal_1x_reset] ... rapi_tmr_cancel: cookie 814f4d84, Initialized=1 00000000 814f4d84 814f35bc 814f4020 cookie 814f4d84 814f4d84 cookie 814f4d84 814f35bc cookie 814f4d84 814f4020 rapi_tmr_cancel: can't find time structure cookie 814f4d84 rapi_tmr_cancel: cookie 8089a2f0, Initialized=1 00000000 814f35bc 814f4020 cookie 8089a2f0 814f35bc cookie 8089a2f0 814f4020 rapi_tmr_cancel: can't find time structure cookie 8089a2f0 ieee80211_reset_bss: old bss 80899034<00:12:bf:93:fd:5f> ND 6 ??? ND7 ??? rapi_tmr_cancel: cookie 8089a2f0, Initialized=1 00000000 814f35bc 814f4020 cookie 8089a2f0 814f35bc cookie 8089a2f0 814f4020 rapi_tmr_cancel: can't find time structure cookie 8089a2f0 ATH_LOCK called ... ath_stop_locked : Shutdown the hardware and driver ???? ATH_UNLOCK called ... wlan_confree_do> start ... Set channel to 0, Success ap_deauth_sta called ??? wlan_confree_do> start ... wlan_confree_do> start ... wlan_confree_do> start ... wlan_confree_do> start ... wlan_confree_do> start ... wlan_confree_do> start ... wlan_confree_do> start ... ATH_LOCK called ... should call ath_hal_setcapability -> HAL_CAP_TPC??? ar5212SetTransmitPower : AH_PRIVATE(ah)->ah_tpScale 0 ----> ieee80211_start_running : dev : 8107d0cc flags 00000000 ATH_UNLOCK called ... rapi_tmr_cancel: cookie 814f4d84, Initialized=1 00000000 814f35bc 814f4020 cookie 814f4d84 814f35bc cookie 814f4d84 814f4020 rapi_tmr_cancel: can't find time structure cookie 814f4d84 rapi_tmr_cancel: cookie 8089a2f0, Initialized=1 00000000 814f35bc 814f4020 cookie 8089a2f0 814f35bc cookie 8089a2f0 814f4020 rapi_tmr_cancel: can't find time structure cookie 8089a2f0 ap_attach : should call _MOD_INC_USE??? dump channel ... wlan0: scan set 1g, 2g, 3g, 4g, 5g, 6g, 7g, 8g, 9g, 10g, 11g, 12g, 13g dwell min 200 max 300 dump channel 2... ath_sysctl_diversity: call ath_hal_setdiversity!!! ath_sysctl_diversity: call ath_hal_setdiversity!!! ar5212SetTransmitPower : AH_PRIVATE(ah)->ah_tpScale 0 ar5212SetTransmitPower : AH_PRIVATE(ah)->ah_tpScale 0 ar5212SetTransmitPower : AH_PRIVATE(ah)->ah_tpScale 0 ar5212SetTransmitPower : AH_PRIVATE(ah)->ah_tpScale 0 ar5212SetTransmitPower : AH_PRIVATE(ah)->ah_tpScale 0 ar5212SetTransmitPower : AH_PRIVATE(ah)->ah_tpScale 0 ar5212SetTransmitPower : AH_PRIVATE(ah)->ah_tpScale 0 ar5212SetTransmitPower : AH_PRIVATE(ah)->ah_tpScale 0 ar5212SetTransmitPower : AH_PRIVATE(ah)->ah_tpScale 0 ar5212SetTransmitPower : AH_PRIVATE(ah)->ah_tpScale 0 ar5212SetTransmitPower : AH_PRIVATE(ah)->ah_tpScale 0 ar5212SetTransmitPower : AH_PRIVATE(ah)->ah_tpScale 0 ar5212SetTransmitPower : AH_PRIVATE(ah)->ah_tpScale 0 ar5212SetTransmitPower : AH_PRIVATE(ah)->ah_tpScale 0 ar5212SetTransmitPower : AH_PRIVATE(ah)->ah_tpScale 0 rapi_tmr_cancel: cookie 814f4d84, Initialized=1 00000000 814f35bc 814f4020 cookie 814f4d84 814f35bc cookie 814f4d84 814f4020 rapi_tmr_cancel: can't find time structure cookie 814f4d84 ath_beacon_alloc : rapi_tmr_cancel: cookie 8089a2f0, Initialized=1 00000000 814f35bc 814f4020 cookie 8089a2f0 814f35bc cookie 8089a2f0 814f4020 rapi_tmr_cancel: can't find time structure cookie 8089a2f0 /cygdrive/e/projects/ipone/source/firmware-ipone/linklayer/hwlan_11ag/madwifi/net80211/ieee80211_linux.c-268 : call wireless_send_event ??? [reset_802dot1x] wireless module ready [init_wpa] dot1x_ready[0]=3 [dot1x] : func blob_portstatus_set_global <--------------------- [dot1x] : func blob_set_bcast_key <--------------------- wlan_confree_do> start ... ND 6 ??? tkip_attache: should call _MOD_INC_USE??? ND7 ??? [dot1x] : func blob_set_bcast_keyid <--------------------- [dot1x] : func blob_get_mcast_packets <--------------------- [dot1x] : func blob_deauthenticate_all <--------------------- [init_wpa] dot1x_ready[1]=3 [init_wpa] dot1x_ready[2]=3 [init_wpa] dot1x_ready[3]=3 [init_wpa] dot1x_ready[4]=3 [init_wpa] dot1x_ready[5]=3 [reset_802dot1x] 802.1Xv2 ready ifno2dot1x_if[2]=0 ifno2dot1x_if[24]=81 dot1x_wireless_if_mask=0x1000004 [main_8021x] dot1x_build_if_mapping() completed. [reset_802dot1x] wireless module ready [init_wpa] dot1x_ready[0]=3 [dot1x] : func blob_portstatus_set_global <--------------------- [dot1x] : func blob_set_bcast_key <--------------------- wlan_confree_do> start ... ND 6 ??? ND7 ??? [dot1x] : func blob_set_bcast_keyid <--------------------- [dot1x] : func blob_get_mcast_packets <--------------------- [dot1x] : func blob_deauthenticate_all <--------------------- [init_wpa] dot1x_ready[1]=3 [init_wpa] dot1x_ready[2]=3 [init_wpa] dot1x_ready[3]=3 [init_wpa] dot1x_ready[4]=3 [init_wpa] dot1x_ready[5]=3 [reset_802dot1x] 802.1Xv2 ready ADSL Firmware: 1.4.2.4.0.2 [Annex B:0x4208 0x0] Code Swap Request, Page[ 3] Code Swap Request, Page[ 4] ADSL> READY
