Hardware
WRTnode 1 series

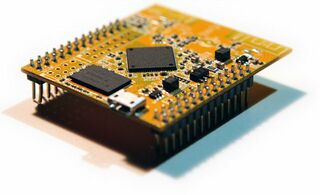

- WRTnode 1
- 320px
- MT7620N @580MHz, 64MB RAM, 16MB Flash
- 802.11bgn 2T2R (300Mbps)
- SPI, I2C, GPIO, USB 2.0
- 50 x 45 mm (2.54 mm x52)
- [WRTnode 1 Starting]
- [WRTnode 1 Specifications]
- [WRTnode 1 Pin Map]
- WRTnode (MT7620N) - Engineering Edition
- 320px
- MT7620N @580MHz, 64MB RAM, 16MB Flash
- 802.11bgn 2T2R (300Mbps)
- SPI, I2C, GPIO, USB 2.0
- 50 x 25 mm (1.27 mm Stamp hole x36)
- [WRTnode 1 工程版的特色]
- [WRTnode 1 工程版详细参数]
- [WRTnode 1 工程版针脚定义]
- WRTnode GitHub
- WRTnode Demo
- WRTnode Schematic
- WRTnode Hi
- 320px
- Hi3516A ARM Cortex-A7 @600MHz
- RAM: 512MB (DDR3), Flash: 32MB (SPI)
- UART, I2C, I2S, SPI, GPIO, SDXC
- Mini PCI
- [WRTnode Hi 开箱指南]
- [WRTnode Hi 的特色]
- [WRTnode Hi 详细参数]
- [WRTnode Hi 针脚定义]
WRTnode 2 series
- WRTnode 2R
- 320px
- MT7688AN @580MHz + STM32F103T8U6, 256MB RAM, 32MB Flash
- 802.11bgn 1T1R (150Mbps)
- SPI, I2C, GPIO, PCIe, SDXC, USB2.0
- 60 x 29 mm Mini PCI
- [WRTnode 2R Starting]
- [WRTnode 2R Specifications]
- [WRTnode 2R Pin Map]
- WRTnode 2P
- 320px
- MT7628AN @580MHz, 128MB RAM, 16MB Flash
- 802.11bgn 2T2R (300Mbps)
- SPI, I2C, GPIO, PCIe, SDXC, USB2.0
- 22 x 42 mm NGFF (M.2 2242 Key B)
- [WRTnode 2P Starting Guide]
- [WRTnode 2P Specifications]
- [WRTnode 2P Pin Map]
- [WRTnode 2P Design Changed]
- [WRTnode 2P Base Board Pin Map]
- [Apply WRTnode 2P in mass manufacturing products]
- WRTnode 2Q
- 320px
- QCA9531 @560MHz, 128MB RAM, 16MB Flash
- 802.11bgn 2T2R (300Mbps)
- SPI, I2C, GPIO, PCIe, USB 2.0
- 22 x 42 mm NGFF (M.2 2242 Key B)
- [WRTnode 2Q 开箱指南]
- [WRTnode 2Q 的特色]
- [WRTnode 2Q 详细参数]
- [WRTnode 2Q 针脚定义]
