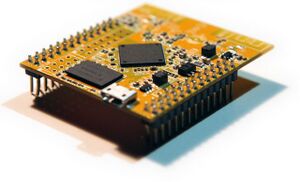

WRTnode (MT7620N) v0.1
From TechInfoDepot
(Redirected from WRTnode (MT7620N))
Jump to navigationJump to search
bgn (N300) | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Mini OpenWRT Dev Board | |||||||||||||
![]() | |||||||||||||
Homepage | Product page | ||||||||||||
WikiDevi.wi-cat.ru | WRTnode | ||||||||||||
3rd Party Firmware | |||||||||||||
dd-wrt | Status Unknown | ||||||||||||
OpenWrt | Supported | ||||||||||||
Tomato any flavor | Incompatible | ||||||||||||
Gargoyle | Status Unknown | ||||||||||||
Platform | |||||||||||||
Brand • Model • Rev | WRTnode (MT7620N) v0.1 | ||||||||||||
FCC ID | none specified | ||||||||||||
Type | mini module | ||||||||||||
CPU1 ![]() | MediaTek MT7620N | ||||||||||||
CPU1 Type | MIPS 24KEc | ||||||||||||
CPU1 Speed | 600 MHz | ||||||||||||
Flash1 Chip | Brand? Model? | ||||||||||||
Flash1 Size | 16 MiB 16,777,216 B <br />131,072 Kib <br />16,384 KiB <br />128 Mib <br />0.0156 GiB <br /> | ||||||||||||
RAM1 Size | 64 MiB 67,108,864 B <br />524,288 Kib <br />65,536 KiB <br />512 Mib <br />0.0625 GiB <br /> | ||||||||||||
RAM1 Chip | Brand? Model? | ||||||||||||
ETH chip1 | MediaTek MT7620N | ||||||||||||
Ethernet Port Count | 5-100MbE-LAN | ||||||||||||
Wired Standard | IEEE 802.3i/3u | ||||||||||||
802dot11 OUI: none specified | |||||||||||||
Stock bootloader | U-Boot | ||||||||||||
Stock FW OS | Linux 3.10.26 OpenWrt | ||||||||||||
Expansion IF types | USB | ||||||||||||
USB ports | 1 | ||||||||||||
USB Hub Compatible | Untested | ||||||||||||
Power | 5 VDC, 0.5 A | ||||||||||||
Connector type | µUSB | ||||||||||||
Serial Port (UART) | yes, 3.3V TTL, (115200 8N1) | ||||||||||||
| |||||||||||||
| |||||||||||||
Other | |||||||||||||
| |||||||||||||
3rd Party Firmware Support |
OpenWrt • (List | Dev | DLs) | ||||||||||||
Retail | |||||||||||||
Availability | End of Life | ||||||||||||
(Est.) release date | May 2014 | ||||||||||||
(Est.) initial retail price (in USD): | $25 | ||||||||||||
Country of manuf | China | ||||||||||||
Radio 1 | |||||||||||||
Chip1 | MediaTek MT7620N | ||||||||||||
Wireless interface OUI | none specified | ||||||||||||
Antenna Connector Type | none | ||||||||||||
MIMO status | 2x2:2 | ||||||||||||
Wireless Standard | IEEE 802.11b/g/n | ||||||||||||
802.11n | up to 300 Mbps | ||||||||||||
802.11g | up to 54 Mbps | ||||||||||||
802.11b | up to 11 Mbps | ||||||||||||
WiFi Operating Frequency | 2.4 GHz | ||||||||||||
|
For a list of all currently documented MediaTek chipsets with specifications, see MediaTek.
For a list of all currently documented WRTnode devices with specifications, see WRTnode.
- • 300 Mbps - 2SS 2.4GHz 802.11n (40MHz chan.) = N300 class
Overview
As of Aug. 2014, this module is available for purchase at the following www locations..
- seeedstudio (in China, global shipping)
- DFRobot (in China, global shipping)
- eleduino (in China, global shipping)
- taobao (from OpenJumper) (in China, shipping to China only)
Links of Interest
Flashing
![]() | NOTE: During configuration or flashing a device, the only things that should be hooked to the device is the computer and power. |
Flashing OpenWrt
![]() | This device is NOT RECOMMENDED for future use with OpenWrt due to low flash/ram.
DO NOT BUY DEVICES WITH 8MB FLASH / 64MB RAM if you intend to flash an up-to-date and secure OpenWrt version onto it! See 8/64 warning for details. This device does not have sufficient resources (flash and/or RAM) to provide secure and reliable operation. This means that you will not be able to install many packages, and that you might experience crashes due to OOM situations more or less often. See OpenWrt on 8/64 devices what you can do now. |
On the OpenWrt ToH (techdata entry)
On the OpenWrt Wiki
OpenWrt Target: ramips
OpenWrt Subtarget: mt7620
OpenWrt Package architecture: mipsel_24kc
Support started version: 14.07
Current supported version: 24.10.2
LAN Comment:
Ports are not RJ45, available via JTAG
On the OpenWrt Wiki
OpenWrt Target: ramips
OpenWrt Subtarget: mt7620
OpenWrt Package architecture: mipsel_24kc
Support started version: 14.07
Current supported version: 24.10.2
LAN Comment:
Ports are not RJ45, available via JTAG
Please insert instructions here
