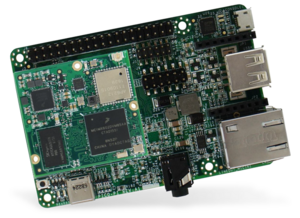

Wandboard PICO-PI-IMX7
abgn+ac (AC600) | |||||
---|---|---|---|---|---|
Single-board Computer | |||||
![]() | |||||
Homepage | Product page | ||||
3rd Party Firmware | |||||
dd-wrt | Status Unknown | ||||
OpenWrt | Supported | ||||
Tomato any flavor | Incompatible | ||||
Gargoyle | Status Unknown | ||||
Platform | |||||
Brand • Model • Rev | Wandboard PICO-PI-IMX7 B1 | ||||
FCC ID | 2AKZA-QCA9377 | ||||
IC ID | 22364-QCA9377 | ||||
Type | single-board computer | ||||
CPU1 ![]() | Freescale (NXP) i.MX7D | ||||
CPU1 Type | ARM Cortex-A7 | ||||
CPU1 Type2 | ARM Cortex-M4 | ||||
CPU1 Speed | 800 MHz ( 1 cores ) | ||||
CPU1 Speed2 | 200 MHz ( 1 cores ) | ||||
Flash1 Chip | Kingston EMMC04G-M627 | ||||
Flash1 Size | 4 GiB 4,096 MiB <br />4,294,967,296 B <br />33,554,432 Kib <br />4,194,304 KiB <br />32,768 Mib <br /> (eMMC) | ||||
RAM1 Size | 512 MiB536,870,912 B <br />4,194,304 Kib <br />524,288 KiB <br />4,096 Mib <br />0.5 GiB <br /> (DDR3L SDRAM) | ||||
RAM1 Chip | SK hynix H5TC2G63GFR-PBA x 2 | ||||
ETH chip1 | Freescale (NXP) i.MX7D | ||||
ETH chip2 | Atheros AR8035-A | ||||
Ethernet Port Count | 1-1GbE-LAN | ||||
Wired Standard | IEEE 802.3i/3u/3ab | ||||
Stock bootloader | U-Boot 2015.04 | ||||
Stock FW OS | Linux 4.1.33 AndroidThings | ||||
Expansion IF types | USB 2.0, MikroBus | ||||
USB ports | 1 | ||||
USB Hub Compatible | Untested | ||||
Power | 5 VDC, 3 A | ||||
Connector type | USB (Type C) | ||||
Serial Port (UART) | yes, USB Female Micro-B, 3.3V TTL, (115200 8N1), | ||||
Flags: | |||||
Additional chips | |||||
Other | |||||
| |||||
Manuf/OEM/ODM | TechNexion PICO-PI-IMX7 | ||||
3rd Party Firmware Support |
OpenWrt • (List | Dev | DLs) | ||||
Radio 1 | |||||
Radio1 module | AMPAK AP6335 | ||||
Radio1 module IF | SDIO 3.0 | ||||
Chip1 | Broadcom BCM4339 | ||||
Wireless interface OUI | none specified | ||||
Antenna Connector Type | U.FL | ||||
MIMO status | 1x1:1 | ||||
Wireless Standard | IEEE 802.11a/b/g/n/ac | ||||
802.11ac | up to 433 Mbps | ||||
802.11n | up to 150 Mbps | ||||
802.11g | up to 54 Mbps | ||||
802.11b | up to 11 Mbps | ||||
802.11a | up to 54 Mbps | ||||
WiFi Operating Frequency | 2.4 or 5 GHz | ||||
|
For a list of all currently documented Atheros (QCA) chipsets with specifications, see Atheros.
For a list of all currently documented Broadcom chipsets with specifications, see Broadcom.
For a list of all currently documented Freescale (NXP) SoC's with specifications, see Freescale.
For a list of all currently documented Wandboard devices with specifications, see Wandboard.
Overview
PICO-PI REV: B1 is silkscreened on the carrier board.
This device is included as part of the androidthings Pico Pro Maker kit.
Hardware specification
- CPU: Freescale (NXP) i.MX7D (MCIMX7D7DVM10SC) ARM
- @800MHz Dual Core (Cortex-A7)/@200MHz (Cortex-M4)
- Memory: 512MB (DDR3L) SDRAM
- Onboard Storage: 4GB (eMMC)
- Wi-Fi: 802.11abgn/ac (1T1R)
- Network: 1x Gigabit Ethernet
- USB: 1x USB 2.0 port
- Power Source: 5V (USB-C)
Flashing
![]() | NOTE: During configuration or flashing a device, the only things that should be hooked to the device is the computer and power. |
Flashing OpenWrt
![]() | Devices with Broadcom WiFi chipsets have limited OpenWrt supportability (due to limited FLOSS driver availability for Broadcom chips). Consider this when choosing a device to buy, or when deciding to flash OpenWrt on your device because it is listed as supported. See Broadcom WiFi for details. |
OpenWrt Target: imx
OpenWrt Subtarget: cortexa7
OpenWrt Package architecture: arm_cortex-a7_neon-vfpv4
Support started version: 23.05.0
Current supported version: 24.10.2
WLAN Comment:
1x1:1 MIMO
Please insert instructions here
