WatchGuard Firebox T35 (MS3AE5)

multiple revisions of this device, use caution

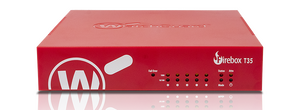

Watchguard Firebox T35
WikiDevi.wi-cat.ru	WatchGuard Firebox T35 (MS3AE5)
3rd Party Firmware
dd-wrt	Incompatible
OpenWrt	Incompatible
Tomato any flavor	Incompatible
Platform
Brand • Model • Rev	WatchGuard Firebox T35
Model Part Number	MS3AE5
Board ID	7016A1378004
Type	router, security appliance
CPU1 N	Freescale (NXP) T1024
CPU1 Speed	1.2 GHz ( 2 cores )
Flash1 Chip	Winbond W25Q32JVSIQ
Flash1 Size	4 MiB4,194,304 B <br />32,768 Kib <br />4,096 KiB <br />32 Mib <br />0.00391 GiB <br />
Flash2 Chip	Toshiba TC58TEG6
Flash2 Size	16 GiB 16,384 MiB <br />17,179,869,184 B <br />134,217,728 Kib <br />16,777,216 KiB <br />131,072 Mib <br />
RAM1 Size	2 GiB 2,048 MiB <br />2,147,483,648 B <br />16,777,216 Kib <br />2,097,152 KiB <br />16,384 Mib <br />
RAM1 Chip	Nanya NT5CC256M16DP-DI x 4
ETH chip1	Freescale (NXP) T1024
Switch	Marvell 88E6176
Ethernet Port Count	1-1GbE-WAN 4-1GbE-LAN
Wired Standard	IEEE 802.3i/3u/3ab
Ethernet OUI: 00:90:7F (27 E, 20 W)
Stock bootloader	U-Boot 2015.01
Stock FW OS	Linux 3.12.19-rt30 WatchGuard Fireware OS Version 12.5.6.B633773
Expansion IF types	mSATA, USB 2.0
USB ports	2
SATA Ports	1
USB Hub Compatible	Untested
Power	54 VDC, 1.2 A
Connector type	DIN (3-pin)
Serial Port (UART)	yes, console port, RJ45, (115200 8N1)
JTAG Port	yes, 16-pin header, unpopulated
Flags: RTC w/ battery, PoE out, power switch, heatsink
Additional chips 2-Wire RTC;Seiko;S-35390A;;1; 1-Channel Photocoupler;LiteOn;LTV-816;;1; 1-Channel Photocoupler;LiteOn;LTV-817;;1; 3-17V, 3A Step-Down Converter;TI;TVL62130;;4; Multichannel RS-232 Line Driver;TI;MA3232C;;1; 2Kbit I2C 2-wire Serial EEPROM;Atmel;AT24C02C;;1; 8-bit Parallel-Out Serial Shift Register;TI;SN74LV164A;;1; 4 Output PCIe Gen 1/2 Synthesizer;Renesas;IDT5V41186;; SPI Interface Trusted Platform Module;Atmel;AT97SC3205;;1; 4.5-18V, 4A Synchronous Step-Down Converter;TI;TPS54426;;1; 4.1A, 150V N-Channel MOSFET;ON Semiconductor;FDS86242;;1; 1.5-18V, 8A Single Synchronous Step-Down Converter;TI;TPS53513;;1; Positive High-Voltage Power-Limiting Hotswap Controller;TI;TPS2493;;1; Bidirectional Voltage Level Translator For Open-Drain;NXP;NVT2002;;5; 802.3af/at PoE Powered Device 1-port PSE Manager;Microsemi;PD69101;;1;
Other
Default IP address: 10.0.1.1 the IP 10.0.1.1 is used by 23 additional devices of which 21 are WatchGuard devices Default login user: admin Default login password: readwrite admin:readwrite credentials used by 26 additional devices of which 26 are WatchGuard devices
Manuf/OEM/ODM	Senao
Retail
Availability	End of Life
End of Life date	31 December 2025
(Est.) release date	November 2017
ASIN	B0777RDJVL
Country of manuf	Taiwan
CPU1 brand FLA1 RAM1 WatchGuard Firebox T35 (MS3AE5) Freescale (NXP) 4 MiB4,194,304 B <br />32,768 Kib <br />4,096 KiB <br />32 Mib <br />0.00391 GiB <br /> 2,048 MiB2,147,483,648 B <br />16,777,216 Kib <br />2,097,152 KiB <br />16,384 Mib <br />2 GiB <br /> WatchGuard Firebox T35-W (MS3AE5W) Freescale (NXP) 4 MiB4,194,304 B <br />32,768 Kib <br />4,096 KiB <br />32 Mib <br />0.00391 GiB <br /> 2,048 MiB2,147,483,648 B <br />16,777,216 Kib <br />2,097,152 KiB <br />16,384 Mib <br />2 GiB <br />

For a list of all currently documented Freescale (NXP) SoC's with specifications, see Freescale.
For a list of all currently documented Marvell chipsets with specifications, see Marvell.

For a list of all currently documented WatchGuard devices with specifications, see WatchGuard.

Overview

See also: Project:Network/Hardware Specific/WatchGuard and WatchGuard

"T35_MB", "7016A0856004" and "Ver: 1.00" are silkscreened on the board top.

Hardware specification

• CPU: Freescale (NXP) QorIQ T1024NS @1.2GHz

Dual Core e5500 PowerPC (64-bit)

• Memory: 2GB (DDR3L) SDRAM
• Storage: 4MB (SPI) Flash, 16GB (mSATA)
• Network: 4x GbE, 1x GbE ports w/ 802.3at PoE
• USB: 2x USB 2.0 ports
• Power: 54V/1.2A via 3-pin DIN

Links of Interest

Hardware Guide  • Quick Start Guide

• Watchguard T35 on rovi.dk blog

Pictures

User Images

•
  Internal View
•
  Board Top
•
  Board Bottom
