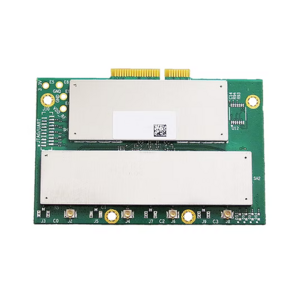

Z-Com AC-924

From TechInfoDepot
Jump to navigationJump to search
an+ac (AC1733)
Homepage Product page
Platform
BrandModelRev Z-Com AC-924
Interface Mini PCIe
Connector Mini PCIe
FCCID none specified
Chip1 Qualcomm Atheros QCA9984

OUI: none specified

Antenna Connection 4X u.FL RF
MIMO status 4x4:4
Wireless Standards IEEE 802.11a/n/ac
802.11ac up to 1733 Mbps
802.11n up to 600 Mbps
802.11a up to 54 Mbps
Operating Frequency 5 GHz
Transmit power 28 dBm

Probable Linux driver
unknown
(see also passys)

Windows driver
possibly see ath-drivers.eu

For a list of all currently documented Qualcomm Atheros (QCA) chipsets with specifications, see Qualcomm Atheros.

For a list of all currently documented Z-Com devices with specifications, see Z-Com.

1733 Mbps - 4SS 5GHz 802.11ac (80MHz chan.) = AC1733 class

Overview

The new Zcomax AC-924 is an Atheros QCA9984-based IEEE 802.11a/an/ac compliant mini PCI adapter. This unit operates in the 5GHz frequency range and is capable of an impressive 1.7 Gbps max throughput. This radio card offers 4X4 MIMO with four u.FL antenna connectors, and features MIMO VHT160 bandwidth support for 2 spatial streams.

Key Features
  • Atheros QCA9984 1.7 Gbps mPCIe module
  • 802.11a/an/ac (5 GHz)
  • 28 dBm Tx power
  • 4X4 MIMO
  • VHT160 Bandwidth (2 spatial streams)
  • 4X u.FL RF connector
