Z-Com ZCN-722M
From TechInfoDepot
Jump to navigationJump to search
| bgn (N150) | |||||
|---|---|---|---|---|---|
| 802.11b/g/n USB module | |||||
|
| |||||
| WikiDevi.wi-cat.ru | Z-Com ZCN-722M | ||||
| Platform | |||||
| Brand • Model • Rev | Z-Com ZCN-722M v1 | ||||
| Interface | USB 2.0 | ||||
| Connector | (non-standard connector) | ||||
|
| |||||
|
| |||||
| FCCID | M4Y-ZCN722MV1 | ||||
|
| |||||
| Chipset | Atheros AR9002U | ||||
| Chip1 | Atheros AR9271 | ||||
| Antenna Connection | U.FL | ||||
| MIMO status | 1x1:1 | ||||
| Wireless Standards | IEEE 802.11b/g/n | ||||
| 802.11n | up to 150 Mbps | ||||
| 802.11g | up to 54 Mbps | ||||
| 802.11b | up to 11 Mbps | ||||
| Operating Frequency | 2.4 GHz | ||||
| Other | |||||
| Manuf/OEM/ODM | Z-Com | ||||
|
| |||||
|
Probable Linux driver | |||||
|
Windows driver | |||||
| Retail | |||||
| FCC approval date | 15 August 2011 | ||||
| Country of manuf | China | ||||
| |||||
For a list of all currently documented Atheros (QCA) chipsets with specifications, see Atheros.
For a list of all currently documented Z-Com devices with specifications, see Z-Com.
- • 150 Mbps - 1SS 2.4GHz 802.11n (40MHz chan.) = N150 class
Overview

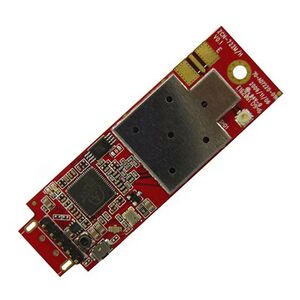

"ZCN-722M/H", "V0.1", "70-A07220-01N", and "2010/01/14" appears
- to be silkscreened on the board in the FCC photos.
Possible 00:19:70 OUI (Z-Com, Inc.)
