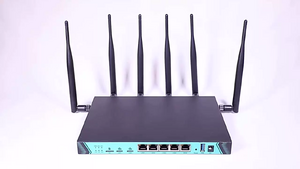

ZBT WG1602 V04 (16M)

multiple revisions of this device, use caution

abgn+ac (AC1200)
AC1200 Wireless Router
3rd Party Firmware
dd-wrt	Status Unknown
OpenWrt	Supported
Tomato any flavor	Incompatible
Gargoyle	Status Unknown
Platform
Brand • Model • Rev	ZBT WG1602 V04 (16M)
FCC ID	none specified
Type	wireless router
CPU1 Y	MediaTek MT7621A
CPU1 Type	MIPS 1004Kc
CPU1 Speed	880 MHz ( 2 cores ) 16-bit
Flash1 Chip	Brand? Model?
Flash1 Size	16 MiB 16,777,216 B <br />131,072 Kib <br />16,384 KiB <br />128 Mib <br />0.0156 GiB <br />
RAM1 Size	256 MiB 268,435,456 B <br />2,097,152 Kib <br />262,144 KiB <br />2,048 Mib <br />0.25 GiB <br />
RAM1 Chip	Brand? Model?
ETH chip1	MediaTek MT7621A
Switch	MediaTek MT7621A
Ethernet Port Count	1-1GbE-WAN 4-1GbE-LAN
Wired Standard	IEEE 802.3i/3u/3ab
802dot11 OUI: none specified
Stock bootloader	U-Boot
Expansion IF types	microSD, Mini PCIe, USB 3.0
Mini PCIe slots	3
USB ports	1
SD/MMC Slots	1
USB Hub Compatible	Untested
Power	12 VDC, 2.5 A
Connector type	barrel
Serial Port (UART)	yes, 3.3V TTL, (115200 8N1)
Other
3rd Party Firmware Support	OpenWrt • (List | Dev | DLs)
Radio 1
Chip1	MediaTek MT7603E
Wireless interface OUI	none specified
Antenna Connector Type	none specified
MIMO status	2x2:2
Wireless Standard	IEEE 802.11b/g/n
802.11n	up to 300 Mbps
802.11g	up to 54 Mbps
802.11b	up to 11 Mbps
WiFi Operating Frequency	2.4 GHz
Radio 2
Chip1	MediaTek MT7662E
Wireless interface OUI	none specified
Antenna Connector Type	none specified
MIMO status	2x2:2
Wireless Standard	IEEE 802.11a/n/ac
802.11ac	up to 867 Mbps
802.11n	up to 300 Mbps
802.11a	up to 54 Mbps
WiFi Operating Frequency	5 GHz
CPU1 brand Radio1 chip1 brand Radio2 chip1 brand ZBT WG1602 MediaTek MediaTek MediaTek ZBT WG1602 V04 (16M) MediaTek MediaTek MediaTek ZBT WG1602 V04 (32M) MediaTek MediaTek MediaTek

For a list of all currently documented MediaTek chipsets with specifications, see MediaTek.

For a list of all currently documented ZBT devices with specifications, see ZBT.

• 300 Mbps - 2SS 2.4GHz 802.11n (40MHz chan.),

• 867 Mbps - 2SS 5GHz 802.11ac (80MHz chan.) = AC1200 class

Overview

Zbtlink ZBT-WG1602-V04 is a Wi-Fi router intendend for use with WWAN (UMTS/LTE/3G/4G) modems. The router board offers a couple of miniPCIe slots with USB and SIM only and another one which is a pure miniPCIe slot as well as five Gigabit Ethernet ports (4xLAN + WAN).

Flashing

Flashing OpenWrt

On the OpenWrt ToH (techdata entry)

Target: ramips
Subtarget: mt7621
Package architecture: mipsel_24kc
Supported Since Commit
Support started version: 23.05.0
Current supported version: 25.12.2

LAN Hardware: MediaTek MT7621A
WLAN Hardware: MediaTek MT7603E, MediaTek MT7662E
WLAN Comment: MIMO 2x2:2 for each band, 2 antennas shared by Wifi 4 intended for WWAN
Installation method(s):
see git-commit
Recovery method(s):
see git-commit
Comment:
2x slots with USB&SIM + 1x slot with regular PCIe bus

git • >>

ramips: add support for Zbtlink ZBT-WG1602-V04 Description heavily based on commit 7e89421a7c3855d66a20350a5bf9ca4cc7a2caf9 by Sergey Ryazanov <ryazanov.s.a@gmail.com> Details I cannot confirm have been removed Completed with great help from \x on IRC. Thanks, \x! Zbtlink ZBT-WG1602-V04 is a Wi-Fi router intendend for use with WWAN (UMTS/LTE/3G/4G) modems. The router board offers a couple of miniPCIe slots with USB and SIM only and another one which is a pure miniPCIe slot as well as five Gigabit Ethernet ports (4xLAN + WAN). Specification: * SoC: MT7621A * RAM: 256/512 MiB * Flash: 16/32 MiB * Eth: 10/100/1000 Mbps Ethernet x5 ports (4xLAN + WAN) * WLAN 2GHz: MT7603E (.11bgn, MIMO 2x2) * WLAN 5GHz: MT7662E (.11nac, MIMO 2x2) * WLAN Ants: detachable x2, shared by 2GHz & 5GHz radios * miniPCIe: 2x slots with USB&SIM + 1x slot with regular PCIe bus * WWAN Ants: detachable x4 * External storage: microSD (SDXC) slot * USB: 3.0 Type-A port * LED: 11 (5 per Eth phy, 3 SoC controlled, 2 WLAN 2/5 controlled, 1 power indicator) * Button: 1 (reset) * UART: console (115200 baud) * Power: DC jack (12 V / 2.5 A) Additional HW information: * SoC USB port 1 is shared by internal miniPCIe slot and external Type-A USB port, USB D+/D- lines are toggled between ports using a GPIO controlled DPDT switch. Installation: The kernel image can be installed directly onto the device via a browser to 192.168.1.1 using the built in firmware recovery Web UI available. It can be accessed by pushing the reset button in, applying power and holding the reset button for approximately 10 seconds. When the kernel image has been flashed, you can access LuCI and upload the sysupgrade as normal.
