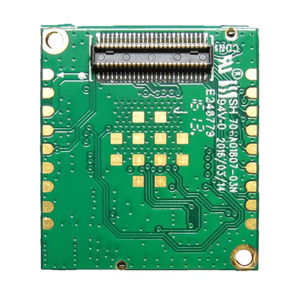

Zcomax AC-180M

From TechInfoDepot
Jump to navigationJump to search
multiple revisions of this device, use caution
abgn+ac (AC600)
SDIO 433 Mbps module
Homepage Product page
WikiDevi.wi-cat.ru Zcomax AC-180M
Platform
BrandModelRev Zcomax AC-180M
Interface SDIO (module)
Connector SDIO (module)
FCCID none specified
Chip1 Marvell 88W8887

OUI: none specified

Antenna Connection U.FL
MIMO status 1x1:1
Wireless Standards IEEE 802.11a/b/g/n/ac
802.11ac up to 433 Mbps
802.11n up to 150/150 Mbps
802.11g up to 54 Mbps
802.11b up to 11 Mbps
802.11a up to 54 Mbps
Operating Frequency 2.4 or 5 GHz
Other
Manuf/OEM/ODM Zcomax

Probable Linux driver
probably not
(see also passys)

Retail
Country of manuf China
 Chip1 brandChip2 brand
Zcomax AC-180LMarvell
Zcomax AC-180MMarvell

For a list of all currently documented Marvell chipsets with specifications, see Marvell.

For a list of all currently documented Zcomax devices with specifications, see Zcomax.

433 Mbps - 1SS 5GHz 802.11ac (80MHz chan.),
150 Mbps - 1SS 2.4GHz 802.11n (40MHz chan.) = AC600 class

Overview

The AC-180M-BT is an Marvell 88W8887 SDIO 433 Mbps module 802.11a/ac/b/g/n draft 2.0, IEEE compliant SDIO adapter supporting a max Tx throughput of 433 Mbps. It operates in the FCC license-exempt 2.4 and 5GHz frequency ranges. The AC-180M-BT also features Bluetooth 4.2 Dual-Mode + High Speed. This radio card is a superb choice for any wireless application where excellent performance, reliability and flexibility are key.

Key Features
  • Marvell 88W8887 SDIO 433 Mbps module
  • 802.11ac (2.4/5 GHz)
  • Bluetooth 4.2 Dual-Mode + High Speed
  • 18 dBm Tx Power
  • Board to board interface
  • u.FL RF connector
