ZyXEL WSQ50
From TechInfoDepot
Jump to navigationJump to search
| abgn+ac (AC3000) | |
|---|---|
| AC3000 Tri-Band WiFi System - Multy X | |
|
| |
| Support | Support page |
| Wikipedia | ZyXEL |
| WikiDevi.wi-cat.ru | ZyXEL WSQ50 |
| 3rd Party Firmware | |
| dd-wrt | Status Unknown |
| OpenWrt | Status Unknown |
| Tomato any flavor | Incompatible |
| Platform | |
| Brand • Model • Rev | ZyXEL WSQ50 (Multy Plus) |
| FCC ID | I88WSQ50 |
| Board ID | WRTQ-334ACN_407WW |
| Type | wireless system |
| CPU1 | Qualcomm IPQ4019 |
| CPU1 Type | ARMv7 Cortex-A7 |
| CPU1 Speed | 716 MHz ( 4 cores ) |
| Flash1 Chip | Brand? Model? |
| Flash1 Size | 4 GiB 4,096 MiB <br />4,294,967,296 B <br />33,554,432 Kib <br />4,194,304 KiB <br />32,768 Mib <br /> (eMMC) |
| RAM1 Size | 512 MiB 536,870,912 B <br />4,194,304 Kib <br />524,288 KiB <br />4,096 Mib <br />0.5 GiB <br /> (DDR3) |
| RAM1 Chip | Brand? Model? |
| ETH chip1 | Qualcomm IPQ4019 |
| Switch | Qualcomm Atheros QCA8075 |
| Ethernet Port Count |
1-WAN 3-1GbE-LAN |
| Wired Standard | IEEE 802.3i/3u/3ab |
| Expansion IF types | USB 2.0 |
| USB ports | 1 |
| USB Hub Compatible | Untested |
| Power | 12 VDC, 3 A |
| Connector type | barrel |
|
Flags: | |
|
Additional chips | |
| Other | |
|
| |
| Manuf/OEM/ODM | Gemtek |
| Retail | |
| FCC approval date | 28 June 2018 |
| ASIN |
B075F7YKJ6 multiple uses |
| Country of manuf | China |
| Radio 1 | |
| Chip1 | Qualcomm IPQ4019 |
| Wireless interface OUI | 1C:74:0D,0F:17:28 |
| Antenna Connector Type | none specified |
| MIMO status | 2x2:2 |
| Wireless Standard | IEEE 802.11b/g/n |
| N-QAM | up to 400 Mbps |
| 802.11n | up to 300 Mbps |
| 802.11g | up to 54 Mbps |
| 802.11b | up to 11 Mbps |
| WiFi Operating Frequency | 2.4 GHz |
| Radio 2 | |
| Chip1 | Qualcomm IPQ4019 |
| Wireless interface OUI | 1C:74:0D,0F:17:28 |
| Antenna Connector Type | none specified |
| MIMO status | 2x2:2 |
| Wireless Standard | IEEE 802.11a/n/ac |
| 802.11ac | up to 867 Mbps |
| N-QAM | up to 400 Mbps |
| 802.11n | up to 300 Mbps |
| 802.11a | up to 54 Mbps |
| WiFi Operating Frequency | 5 GHz |
| Radio 3 | |
| Chip1 | Qualcomm Atheros QCA9984 |
| Wireless interface OUI | 1C:74:0D,0F:17:28 |
| Antenna Connector Type | none specified |
| MIMO status | 4x4:4 |
| Wireless Standard | IEEE 802.11a/n/ac |
| 802.11ac | up to 1733 Mbps |
| N-QAM | up to 600 Mbps |
| 802.11n | up to 450 Mbps |
| 802.11a | up to 54 Mbps |
| WiFi Operating Frequency | 5 GHz |
For a list of all currently documented Qualcomm chipsets with specifications, see Qualcomm.
For a list of all currently documented Qualcomm Atheros (QCA) chipsets with specifications, see Qualcomm Atheros.
For a list of all currently documented ZyXEL devices with specifications, see ZyXEL.
Overview
"WRTQ-334ACN V0.1" is silkscreened on the sticker.
See also: Luma WRTQ-329ACN and Gemtek
This device was under short-term confidentiality, but that expired 03/11/2018 ⚠.
"WRTQ-334ACN_407WW_V01" is silkscreened on the board.
- Initially sold as a 2-pack for $299.99
The DTS Test Report BT LE and a few of the other FCC docs
- show the following table:
| Function | Model No. |
|---|---|
| Main Chipset | IPQ4019 |
| 2.4GHz 2T2R | IPQ4019 |
| 5GHz 2T2R | IPQ4019 |
| 5GHz 4T4R | QCA9984 |
| Bluetooth 4.1 LE | CSR8811 |

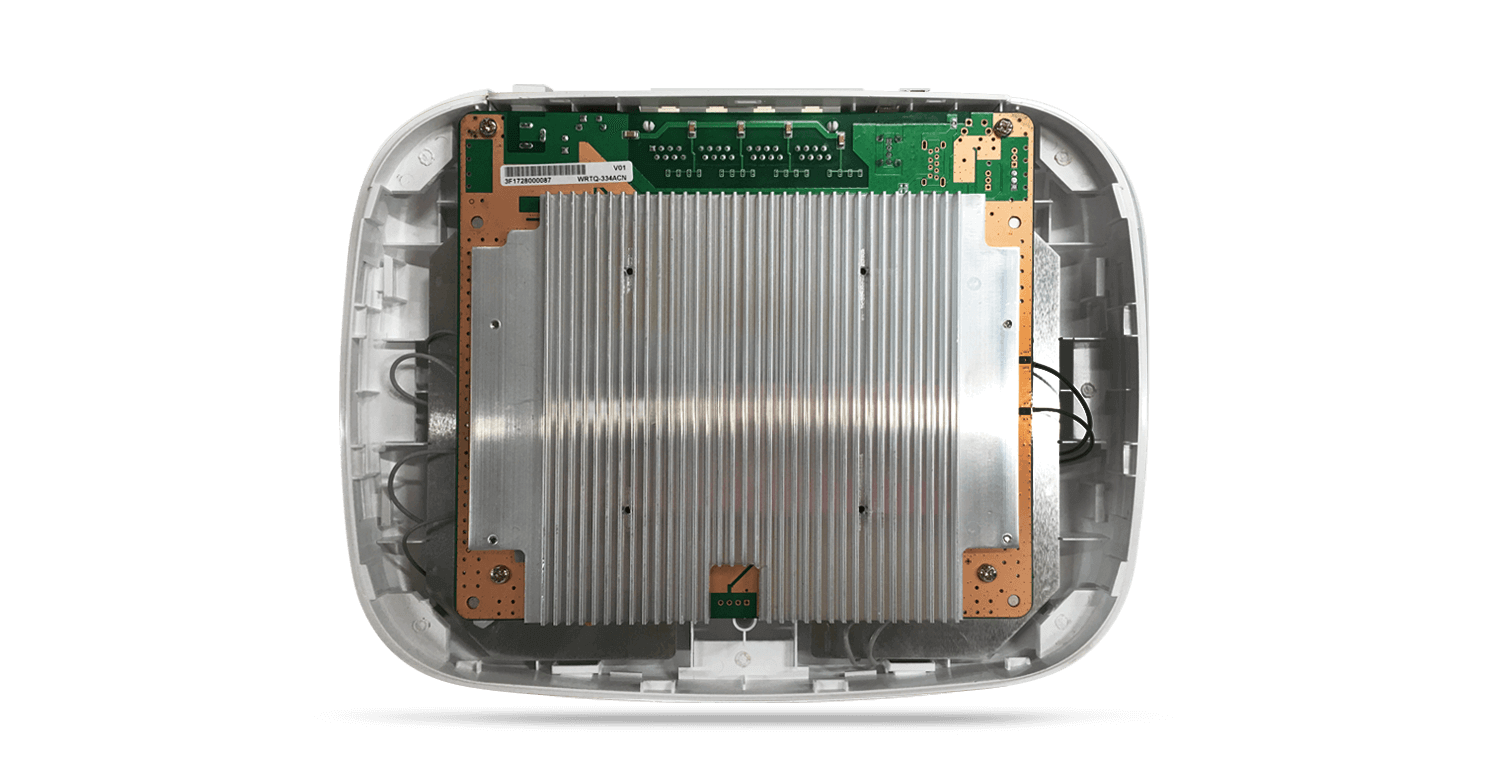

Pictures
