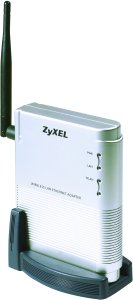

ZyXEL ZyAIR G-405

bg (G54)
bridge
Wikipedia	ZyXEL
3rd Party Firmware
dd-wrt	Incompatible
OpenWrt	Incompatible
Tomato any flavor	Incompatible
Platform
Brand • Model • Rev	ZyXEL ZyAIR G-405
FCC ID	N89-WA638I
Type	bridge
CPU1	Intersil ISL3893
CPU1 Type	ARM946E
CPU1 Speed	not specified
Flash1 Chip	Fujitsu 29LV320BE-90PFTN
Flash1 Size	4 MiB4,194,304 B <br />32,768 Kib <br />4,096 KiB <br />32 Mib <br />0.00391 GiB <br />
RAM1 Size	16 MiB16,777,216 B <br />131,072 Kib <br />16,384 KiB <br />128 Mib <br />0.0156 GiB <br />
RAM1 Chip	SK hynix HY57V281620HCT-H
ETH chip1	Intersil ISL3893
ETH chip2	Altima AC101L
Ethernet Port Count	1-100MbE-LAN
Wired Standard	IEEE 802.3i/3u
802dot11 OUI: none specified
Stock bootloader	ISL Rescueing Boot 0.5.2.0
Stock FW OS	μClinux 2.4.19-uc1 Intersil Duette APDK
Expansion IF types	none specified
Power	4.75 VDC, 2.5 A
Connector type	barrel
Serial Port (UART)	yes, internal, 4-pin header, unpopulated, 3.3V TTL, U302, (115200 8N1)
Flags: fix PSU data
Other
Default IP address: 192.168.1.11 the IP 192.168.1.11 is used by 1 additional devices of which 1 are ZyXEL devices Default login user: admin Default login password: 1234 admin:1234 credentials used by 185 additional devices of which 66 are ZyXEL devices
Manuf/OEM/ODM	CyberTAN WS638-I
Retail
FCC approval date	16 March 2004
EAN	4718937401567 (UPC DB, On eBay)
Radio 1
Chip1	Intersil ISL3893
Chip2	Intersil ISL3692
Wireless interface OUI	none specified
Antenna Connector Type	none specified
Wireless Standard	IEEE 802.11b/g
802.11g	up to 54 Mbps
802.11b	up to 11 Mbps
WiFi Operating Frequency	2.4 GHz
FCC ID CyberTAN WA638-I N89-WA638I

For a list of all currently documented Altima chipsets with specifications, see Altima.
For a list of all currently documented Intersil chipsets with specifications, see Intersil.

For a list of all currently documented ZyXEL device with specifications, see ZyXEL.

• 54 Mbps - 2.4GHz 802.11g = G54 class

Overview

"3751-06350002" is silkscreened on the board.

Links of Interest

Manual

JTAG-Serial Info

Serial

Serial Pinouts

(RxD)
(TxD)
(GND)
[3.3] J303

Info derived from

Boot log

Boot log

Rescueing Boot for the ISL3893, version 0.5.2.0 Copyright (C) 1993-2002 Intersil Americas Inc. All Rights Reserved. MAC Address: 00.a0.c5.94.82.e9 Forcing soft reset from Bootloader▒ Rescueing Boot for the ISL3893, version 0.5.2.0 Copyright (C) 1993-2002 Intersil Americas Inc. All Rights Reserved. MAC Address: 00.a0.c5.94.82.e9 Boot: start searching for image... Found Boot: Checking Image CRC32... ...skipped... Okay. OKA Uncompressing Linux (gzip)...................................................... ........................................................................................... done, booting the kernel. Linux version 2.4.19-uc1 (maxyin@Pluto) (gcc version 2.95.3.2 20010315 (release)) #238 Thu May 20 11:46:03 CST 2004 Processor: ARM ARM946 revision 1 Architecture: ISL3893 Boot Struct at 0003f000 Boot parameter block at 0003ffc8 SRAM size 0xfb7b40 On node 0 totalpages: 4087 zone(0): 0 pages. zone(1): 4087 pages. zone(2): 0 pages. Kernel command line: Calibrating delay loop... 72.29 BogoMIPS Memory: 15MB = 15MB total Memory: 11040KB available (1258K code, 3555K data, 44K init) Dentry cache hash table entries: 2048 (order: 2, 16384 bytes) Inode cache hash table entries: 1024 (order: 1, 8192 bytes) Mount-cache hash table entries: 512 (order: 0, 4096 bytes) Buffer-cache hash table entries: 1024 (order: 0, 4096 bytes) Page-cache hash table entries: 4096 (order: 2, 16384 bytes) POSIX conformance testing by UNIFIX Linux NET4.0 for Linux 2.4 Based upon Swansea University Computer Society NET3.039 Initializing RT netlink socket Starting kswapd JFFS version 1.0, (C) 1999, 2000 Axis Communications AB pty: 256 Unix98 ptys configured ISL3893 UART serial driver version 1.0 (2002-07-11) with no serial options enabled ttyS00 at 0xc0000500 (irq = 8) is a ISL3893 UART dev_elem, type 2, mtu 1568, head 224, tail 32 eth0: Prism Embedded MVC v2 packet IF version 0.4.0.0 found,Macaddress = 00:a0:c5:94:82:e9 dev_elem, type 1, mtu 1568, head 224, tail 32 eth1: Prism Embedded MVC v2 packet IF version 0.4.0.0 found,Macaddress = 00:a0:c5:94:82:e9 Could't get the RSSI Vector from the PDA. DUETTE APDK CLIENT MODE Blkmem copyright 1998,1999 D. Jeff Dionne Blkmem copyright 1998 Kenneth Albanowski Blkmem 2 disk images: 0: 188A24-4A2623 [VIRTUAL 188A24-4A2623] (RO) 1: 8236600-83001FF [VIRTUAL 8236600-83001FF] (RO) loop: loaded (max 8 devices) PPP generic driver version 2.4.2 PPP Deflate Compression module registered PPP BSD Compression module registered physmap flash device: 400000 at 8000000 Amd/Fujitsu Extended Query Table v1.1 at 0x0040 number of CFI chips: 1 Creating 3 MTD partitions on "Physically mapped flash": 0x00000000-0x00010000 : "Bootloader" 0x00010000-0x00300000 : "Access Point Firmware" 0x00300000-0x00400000 : "Flash Filesystem" NET4: Linux TCP/IP 1.0 for NET4.0 IP Protocols: ICMP, UDP, TCP, IGMP IP: routing cache hash table of 512 buckets, 4Kbytes TCP: Hash tables configured (established 512 bind 512) ip_conntrack (127 buckets, 1016 max) PPTP netfilter connection tracking: registered PPTP netfilter NAT helper: registered ip_tables: (C) 2000-2002 Netfilter core team NET4: Unix domain sockets 1.0/SMP for Linux NET4.0. Ebtables v2.0 registered<6>NET4: Ethernet Bridge 008 for NET4.0 cramfs: wrong magic JFFS: Trying to mount a non-mtd device. VFS: Mounted root (romfs filesystem) readonly. Mounting proc on /proc Bummer, can't write to log on /dev/tty5! console=/dev/ttyS0 init started: BusyBox v0.51 (2004.04.22-03:31+0000) multi-call binary # interface eth3 does not exist! device eth1 entered promiscuous mode device eth0 entered promiscuous mode can't find port eth3 in bridge br0 Jan 1 00:00:03 ucd-snmp[69]: UCD-SNMP version 4.2.6 TFTP Upgrade Server v0.0.2 (2004.04.22-03:32+0000) started shelld: applet not found bmp_initSocket(): eth0 HWADDR: 00:a0:c5:94:82:e9 bmp_initSocket(): socket created: 5 Couldn't Find /usr/etc/cybersupplicant_pid Failed opening device /usr/etc/images/webfileset.img: No such file or directory Failed opening device /usr/etc/images/uapfirmware.img: No such file or directory PDR_INTERFACE_LIST not present for interface 5, assuming ERP & OFDM Cannot get ifindex of interface eth3: No such device Failed to build PIMFOR packet Get: send_rcv failed RunAndRead: execv failed eth1mon: eth1 is going to down... eth1mon: eth1 is down eth1mon: eth1 is up eth1mon: eth1 is going to down... Failed to get SNMP password Error, couldn't open SNMP passwd file iptables: not found Cannot get ifindex of interface eth3: No such device Failed to build PIMFOR packet Get: send_rcv failed /bin/iptables-restore: not found killall: pptp_callmgr: no process killed killall: pppoe: no process killed killall: pppd: no process killed killall: pptp: no process killed dhcpcd not running on interface eth2 /bin/iptables: not found SIOCSIFADDR: No such device set(): cmd: /bin/echo "00:a0:c5:94:82:e9" > /proc/net/macnat/cloned_MAC SIOCDELRT: No such process dhcpcd not running on interface br0 bmp_initSocket(): eth0 HWADDR: 00:a0:c5:94:82:e9 bmp_initSocket(): socket created: 5 br0: port 1(eth1) entering listening state ifup uses obsolete (PF_INET,SOCK_PACKET) killall: autoip: no process killed SIOCSIFFLAGS: Cannot assign requested address killall: udhcpd: no process killed sided_multicast_init: Send router sollicitation for if br0:0 192.168.1.255 eth1mon: eth1 is going to down... br0: port 2(eth0) entering listening state Cannot get ifindex of interface eth3: No such device Failed to build PIMFOR packet Get: send_rcv failed Cannot get ifindex of interface eth3: No such device Failed to build PIMFOR packet Set: send_rcv failed Cannot get ifindex of interface eth3: No such device Failed to build PIMFOR packet Set: send_rcv failed Accepting connections on port 1122 eth1: link up br0: port 1(eth1) entering learning state br0: port 2(eth0) entering learning state br0: port 1(eth1) entering forwarding state br0: topology change detected, propagating br0: port 2(eth0) entering forwarding state br0: topology change detected, propagating Enter Infra mode Disable Security Settings

cat /proc/cpuinfo

# cat /proc/cpuinfo
Processor       : ARM ARM946 rev 1 (v5l)
BogoMIPS        : 72.29
Hardware        : ISL3893
Revision        : 0000
Serial          : 0000000000000000

ps aux

# ps aux
  PID  Uid      Gid State Command
    1 0         0         S init
    2 0         0         S [keventd]
    3 0         0         S [ksoftirqd_CPU0]
    4 0         0         S [kswapd]
    5 0         0         S [bdflush]
    6 0         0         S [kupdated]
    7 0         0         S [mtdblockd]
   22 0         0         S aplogd
   32 0         0         R /bin/sh
   33 0         0         S /bin/respawnd /var/respawnd/
   61 0         0         S /bin/datastore
   69 0         0         S /bin/snmpd -s -f
   77 0         0         S /bin/upgraded -f /bin/imginstall
   93 0         0         S /bin/testa
  171 0         0         S /bin/sysd
  199 0         0         S /bin/boa
  200 0         0         S [ssi]
  219 0         0         R ps aux

files

ls -la /bin

# ls -la drwxr-xr-x 1 0 0 32 Jan 1 00:00 . drwxr-xr-x 1 0 0 32 Jan 1 00:00 .. lrwxrwxrwx 1 0 0 7 Jan 1 00:00 [ -> busybox lrwxrwxrwx 1 0 0 7 Jan 1 00:00 aplog -> busybox lrwxrwxrwx 1 0 0 7 Jan 1 00:00 aplogd -> busybox lrwxrwxrwx 1 0 0 7 Jan 1 00:00 aplogview -> busybox -rwxr-xr-x 1 0 0 80691 Jan 1 00:00 boa -rwxr-xr-x 1 0 0 37472 Jan 1 00:00 brctl -rwxr-xr-x 1 0 0 270655 Jan 1 00:00 busybox lrwxrwxrwx 1 0 0 7 Jan 1 00:00 cat -> busybox lrwxrwxrwx 1 0 0 7 Jan 1 00:00 chgrp -> busybox lrwxrwxrwx 1 0 0 7 Jan 1 00:00 chmod -> busybox lrwxrwxrwx 1 0 0 7 Jan 1 00:00 chown -> busybox lrwxrwxrwx 1 0 0 7 Jan 1 00:00 clear -> busybox lrwxrwxrwx 1 0 0 7 Jan 1 00:00 cp -> busybox -rwxr-xr-x 1 0 0 562 Jan 1 00:00 cp_fileset lrwxrwxrwx 1 0 0 7 Jan 1 00:00 cut -> busybox -rwxr-xr-x 1 0 0 249 Jan 1 00:00 cyberCA.sh -rwxr-xr-x 1 0 0 216 Jan 1 00:00 cyberRoot.sh -rwxr-xr-x 1 0 0 1109765 Jan 1 00:00 cybersupplicant -rwxr-xr-x 1 0 0 232709 Jan 1 00:00 datastore lrwxrwxrwx 1 0 0 7 Jan 1 00:00 date -> busybox lrwxrwxrwx 1 0 0 7 Jan 1 00:00 dd -> busybox lrwxrwxrwx 1 0 0 7 Jan 1 00:00 df -> busybox -rwxr-xr-x 1 0 0 77120 Jan 1 00:00 dhcpcd lrwxrwxrwx 1 0 0 7 Jan 1 00:00 dmesg -> busybox lrwxrwxrwx 1 0 0 7 Jan 1 00:00 du -> busybox -rwxr-xr-x 1 0 0 61734 Jan 1 00:00 ebtables lrwxrwxrwx 1 0 0 7 Jan 1 00:00 echo -> busybox lrwxrwxrwx 1 0 0 7 Jan 1 00:00 env -> busybox -rwxr-xr-x 1 0 0 21888 Jan 1 00:00 erase_flash lrwxrwxrwx 1 0 0 7 Jan 1 00:00 free -> busybox lrwxrwxrwx 1 0 0 7 Jan 1 00:00 freeramdisk -> busybox -rwxr-xr-x 1 0 0 37835 Jan 1 00:00 getoid lrwxrwxrwx 1 0 0 7 Jan 1 00:00 grep -> busybox lrwxrwxrwx 1 0 0 7 Jan 1 00:00 head -> busybox lrwxrwxrwx 1 0 0 7 Jan 1 00:00 hostname -> busybox lrwxrwxrwx 1 0 0 7 Jan 1 00:00 id -> busybox lrwxrwxrwx 1 0 0 7 Jan 1 00:00 ifconfig -> busybox lrwxrwxrwx 1 0 0 7 Jan 1 00:00 ifup -> busybox -rwxr-xr-x 1 0 0 59050 Jan 1 00:00 imginstall lrwxrwxrwx 1 0 0 7 Jan 1 00:00 init -> busybox lrwxrwxrwx 1 0 0 7 Jan 1 00:00 insmod -> busybox lrwxrwxrwx 1 0 0 7 Jan 1 00:00 kill -> busybox lrwxrwxrwx 1 0 0 7 Jan 1 00:00 killall -> busybox lrwxrwxrwx 1 0 0 7 Jan 1 00:00 length -> busybox lrwxrwxrwx 1 0 0 7 Jan 1 00:00 ls -> busybox lrwxrwxrwx 1 0 0 7 Jan 1 00:00 lsmod -> busybox lrwxrwxrwx 1 0 0 7 Jan 1 00:00 makedevs -> busybox lrwxrwxrwx 1 0 0 7 Jan 1 00:00 mkdir -> busybox lrwxrwxrwx 1 0 0 7 Jan 1 00:00 mktemp -> busybox lrwxrwxrwx 1 0 0 7 Jan 1 00:00 more -> busybox lrwxrwxrwx 1 0 0 7 Jan 1 00:00 mount -> busybox lrwxrwxrwx 1 0 0 7 Jan 1 00:00 mv -> busybox lrwxrwxrwx 1 0 0 7 Jan 1 00:00 nc -> busybox lrwxrwxrwx 1 0 0 7 Jan 1 00:00 nslookup -> busybox lrwxrwxrwx 1 0 0 7 Jan 1 00:00 ping -> busybox lrwxrwxrwx 1 0 0 7 Jan 1 00:00 printf -> busybox lrwxrwxrwx 1 0 0 7 Jan 1 00:00 ps -> busybox lrwxrwxrwx 1 0 0 7 Jan 1 00:00 pwd -> busybox lrwxrwxrwx 1 0 0 7 Jan 1 00:00 randomseed -> busybox lrwxrwxrwx 1 0 0 7 Jan 1 00:00 rdate -> busybox lrwxrwxrwx 1 0 0 7 Jan 1 00:00 reboot -> busybox -rwxr-xr-x 1 0 0 34037 Jan 1 00:00 respawnd lrwxrwxrwx 1 0 0 7 Jan 1 00:00 rm -> busybox lrwxrwxrwx 1 0 0 7 Jan 1 00:00 rmmod -> busybox lrwxrwxrwx 1 0 0 7 Jan 1 00:00 route -> busybox -rwxr-xr-x 1 0 0 40773 Jan 1 00:00 setoid lrwxrwxrwx 1 0 0 7 Jan 1 00:00 sh -> busybox lrwxrwxrwx 1 0 0 7 Jan 1 00:00 shelld -> busybox lrwxrwxrwx 1 0 0 7 Jan 1 00:00 sleep -> busybox -rwxr-xr-x 1 0 0 217341 Jan 1 00:00 snmpd -rwxr-xr-x 1 0 0 40499 Jan 1 00:00 ssi -rwxr-xr-x 1 0 0 64569 Jan 1 00:00 sysd lrwxrwxrwx 1 0 0 7 Jan 1 00:00 tail -> busybox lrwxrwxrwx 1 0 0 7 Jan 1 00:00 test -> busybox -rwxr-xr-x 1 0 0 25174 Jan 1 00:00 testa lrwxrwxrwx 1 0 0 7 Jan 1 00:00 touch -> busybox lrwxrwxrwx 1 0 0 7 Jan 1 00:00 umount -> busybox lrwxrwxrwx 1 0 0 7 Jan 1 00:00 unc -> busybox -rwxr-xr-x 1 0 0 54990 Jan 1 00:00 upgraded

ls -laR /usr/*

# ls -laR * bin: drwxr-xr-x 1 0 0 32 Jan 1 00:00 . drwxr-xr-x 1 0 0 32 Jan 1 00:00 .. etc: drwxr-xr-x 1 0 0 0 Jan 1 00:00 . drwxr-xr-x 1 0 0 32 Jan 1 00:00 .. drwxr-xr-x 1 0 0 0 Jan 1 00:00 images etc/images: drwxr-xr-x 1 0 0 0 Jan 1 00:00 . drwxr-xr-x 1 0 0 0 Jan 1 00:00 .. local: drwxr-xr-x 1 0 0 32 Jan 1 00:00 . drwxr-xr-x 1 0 0 32 Jan 1 00:00 .. drwxr-xr-x 1 0 0 32 Jan 1 00:00 include drwxr-xr-x 1 0 0 32 Jan 1 00:00 lib drwxr-xr-x 1 0 0 32 Jan 1 00:00 share local/include: drwxr-xr-x 1 0 0 32 Jan 1 00:00 . drwxr-xr-x 1 0 0 32 Jan 1 00:00 .. drwxr-xr-x 1 0 0 32 Jan 1 00:00 ucd-snmp local/include/ucd-snmp: drwxr-xr-x 1 0 0 32 Jan 1 00:00 . drwxr-xr-x 1 0 0 32 Jan 1 00:00 .. local/lib: drwxr-xr-x 1 0 0 32 Jan 1 00:00 . drwxr-xr-x 1 0 0 32 Jan 1 00:00 .. local/share: drwxr-xr-x 1 0 0 32 Jan 1 00:00 . drwxr-xr-x 1 0 0 32 Jan 1 00:00 .. drwxr-xr-x 1 0 0 32 Jan 1 00:00 snmp local/share/snmp: drwxr-xr-x 1 0 0 32 Jan 1 00:00 . drwxr-xr-x 1 0 0 32 Jan 1 00:00 .. drwxr-xr-x 1 0 0 32 Jan 1 00:00 mibs local/share/snmp/mibs: drwxr-xr-x 1 0 0 32 Jan 1 00:00 . drwxr-xr-x 1 0 0 32 Jan 1 00:00 .. share: drwxr-xr-x 1 0 0 32 Jan 1 00:00 . drwxr-xr-x 1 0 0 32 Jan 1 00:00 .. lrwxrwxrwx 1 0 0 6 Jan 1 00:00 ssl -> ../etc www: drwxr-xr-x 1 0 0 32 Jan 1 00:00 . drwxr-xr-x 1 0 0 32 Jan 1 00:00 .. drwxr-xr-x 1 0 0 32 Jan 1 00:00 cgi-bin drwxr-xr-x 1 0 0 32 Jan 1 00:00 html www/cgi-bin: drwxr-xr-x 1 0 0 32 Jan 1 00:00 . drwxr-xr-x 1 0 0 32 Jan 1 00:00 .. -rwxr-xr-x 1 0 0 301 Jan 1 00:00 chkstatus -rwxr-xr-x 1 0 0 53798 Jan 1 00:00 cyber_cgi -rwxr-xr-x 1 0 0 52380 Jan 1 00:00 cyber_cgi_0422 -rwxr-xr-x 1 0 0 52110 Jan 1 00:00 cyber_cgi_orig -rwxr-xr-x 1 0 0 52349 Jan 1 00:00 cyber_cgi_orig2 -rwxr-xr-x 1 0 0 519 Jan 1 00:00 reset2def -rwxr-xr-x 1 0 0 44961 Jan 1 00:00 setobject -rwxr-xr-x 1 0 0 233 Jan 1 00:00 trigss -rwxr-xr-x 1 0 0 26774 Jan 1 00:00 webupgrade -rwxr-xr-x 1 0 0 26771 Jan 1 00:00 webuploadCA -rwxr-xr-x 1 0 0 26781 Jan 1 00:00 webuploadRoot -rwxr-xr-x 1 0 0 507 Jan 1 00:00 wifitest www/html: drwxr-xr-x 1 0 0 32 Jan 1 00:00 . drwxr-xr-x 1 0 0 32 Jan 1 00:00 .. -rw-r--r-- 1 0 0 770 Jan 1 00:00 .webprj drwxr-xr-x 1 0 0 32 Jan 1 00:00 _standardfiles -rwxr-xr-x 1 0 0 22207 Jan 1 00:00 admin_b.shtml -rwxr-xr-x 1 0 0 21416 Jan 1 00:00 admin_b.shtml.bak -rwxr-xr-x 1 0 0 21737 Jan 1 00:00 admin_b.shtml_0313 -rwxr-xr-x 1 0 0 666 Jan 1 00:00 cmddone_b.html -rwxr-xr-x 1 0 0 6924 Jan 1 00:00 cyber_cgi_head -rwxr-xr-x 1 0 0 213 Jan 1 00:00 cyber_cgi_tail -rwxr-xr-x 1 0 0 2036 Jan 1 00:00 cyber_cgi_weppage -rwxr-xr-x 1 0 0 2745 Jan 1 00:00 header_b.gif -rwxr-xr-x 1 0 0 715 Jan 1 00:00 header_b.shtml -rw-r--r-- 1 0 0 7828 Jan 1 00:00 hiyan.txt -rwxr-xr-x 1 0 0 105 Jan 1 00:00 index.html -rwxr-xr-x 1 0 0 339 Jan 1 00:00 index_b.shtml -rwxr-xr-x 1 0 0 492 Jan 1 00:00 info.js -rwxr-xr-x 1 0 0 9050 Jan 1 00:00 info_b.shtml drwxr-xr-x 1 0 0 32 Jan 1 00:00 js drwxr-xr-x 1 0 0 32 Jan 1 00:00 lib -rwxr-xr-x 1 0 0 8790 Jan 1 00:00 md5.js -rwxr-xr-x 1 0 0 415 Jan 1 00:00 popup_close.html -rwxr-xr-x 1 0 0 260 Jan 1 00:00 popup_close_wep.html -rwxr-xr-x 1 0 0 189 Jan 1 00:00 redirect2index.html -rwxr-xr-x 1 0 0 18667 Jan 1 00:00 security_b.shtml -rwxr-xr-x 1 0 0 611 Jan 1 00:00 security_b2.shtml -rwxr-xr-x 1 0 0 129 Jan 1 00:00 security_b3.shtml -rwxr-xr-x 1 0 0 2279 Jan 1 00:00 site.shtml -rwxr-xr-x 1 0 0 4164 Jan 1 00:00 site2.shtml drwxr-xr-x 1 0 0 32 Jan 1 00:00 status -rwxr-xr-x 1 0 0 2395 Jan 1 00:00 style.css -rwxr-xr-x 1 0 0 2244 Jan 1 00:00 style_b.css -rwxr-xr-x 1 0 0 4065 Jan 1 00:00 stylewpa.css -rwxr-xr-x 1 0 0 1159 Jan 1 00:00 success.html drwxr-xr-x 1 0 0 32 Jan 1 00:00 templates drwxr-xr-x 1 0 0 32 Jan 1 00:00 toolbars -rwxr-xr-x 1 0 0 190 Jan 1 00:00 trigss.html -rwxr-xr-x 1 0 0 2529 Jan 1 00:00 upgrade.html -rw-r--r-- 1 0 0 237 Jan 1 00:00 ver.txt -rwxr-xr-x 1 0 0 352 Jan 1 00:00 vssver.scc -rwxr-xr-x 1 0 0 1929 Jan 1 00:00 wait.html -rwxr-xr-x 1 0 0 1418 Jan 1 00:00 wait4ipchange.shtml -rwxr-xr-x 1 0 0 290 Jan 1 00:00 wep.shtml -rwxr-xr-x 1 0 0 14201 Jan 1 00:00 wep128.shtml -rwxr-xr-x 1 0 0 14203 Jan 1 00:00 wep128_adhoc.shtml -rwxr-xr-x 1 0 0 14722 Jan 1 00:00 wep64.shtml -rwxr-xr-x 1 0 0 14663 Jan 1 00:00 wep64_adhoc.shtml -rwxr-xr-x 1 0 0 302 Jan 1 00:00 wep_adhoc.shtml -rwxr-xr-x 1 0 0 29200 Jan 1 00:00 wireless_b.shtml -rwxr-xr-x 1 0 0 5982 Jan 1 00:00 wisoc_genbr_web_basedonubicom.webprj -rwxr-xr-x 1 0 0 4563 Jan 1 00:00 wlan.js www/html/_standardfiles: drwxr-xr-x 1 0 0 32 Jan 1 00:00 . drwxr-xr-x 1 0 0 32 Jan 1 00:00 .. drwxr-xr-x 1 0 0 32 Jan 1 00:00 cgi drwxr-xr-x 1 0 0 32 Jan 1 00:00 upgrade drwxr-xr-x 1 0 0 32 Jan 1 00:00 webserver www/html/_standardfiles/cgi: drwxr-xr-x 1 0 0 32 Jan 1 00:00 . drwxr-xr-x 1 0 0 32 Jan 1 00:00 .. drwxr-xr-x 1 0 0 32 Jan 1 00:00 setobject drwxr-xr-x 1 0 0 32 Jan 1 00:00 webupgrade www/html/_standardfiles/cgi/setobject: drwxr-xr-x 1 0 0 32 Jan 1 00:00 . drwxr-xr-x 1 0 0 32 Jan 1 00:00 .. -rw-r--r-- 1 0 0 552 Jan 1 00:00 posterror.shtml -rwxr-xr-x 1 0 0 234 Jan 1 00:00 posterror.shtml-saved -rwxr-xr-x 1 0 0 154 Jan 1 00:00 success.shtml www/html/_standardfiles/cgi/webupgrade: drwxr-xr-x 1 0 0 32 Jan 1 00:00 . drwxr-xr-x 1 0 0 32 Jan 1 00:00 .. -rwxr-xr-x 1 0 0 1838 Jan 1 00:00 uploadcomplete.shtml -rwxr-xr-x 1 0 0 955 Jan 1 00:00 uploaderror.shtml.orig www/html/_standardfiles/upgrade: drwxr-xr-x 1 0 0 32 Jan 1 00:00 . drwxr-xr-x 1 0 0 32 Jan 1 00:00 .. -rwxr-xr-x 1 0 0 5609 Jan 1 00:00 index.shtml -rwxr-xr-x 1 0 0 3663 Jan 1 00:00 index.shtmlold lrwxrwxrwx 1 0 0 19 Jan 1 00:00 status -> /tmp/upgrade_status www/html/_standardfiles/webserver: drwxr-xr-x 1 0 0 32 Jan 1 00:00 . drwxr-xr-x 1 0 0 32 Jan 1 00:00 .. drwxr-xr-x 1 0 0 32 Jan 1 00:00 errors www/html/_standardfiles/webserver/errors: drwxr-xr-x 1 0 0 32 Jan 1 00:00 . drwxr-xr-x 1 0 0 32 Jan 1 00:00 .. -rwxr-xr-x 1 0 0 755 Jan 1 00:00 301.html -rwxr-xr-x 1 0 0 755 Jan 1 00:00 302.html -rwxr-xr-x 1 0 0 729 Jan 1 00:00 400.html -rwxr-xr-x 1 0 0 730 Jan 1 00:00 401.html -rwxr-xr-x 1 0 0 716 Jan 1 00:00 403.html -rwxr-xr-x 1 0 0 734 Jan 1 00:00 404.html -rwxr-xr-x 1 0 0 753 Jan 1 00:00 500.html -rwxr-xr-x 1 0 0 782 Jan 1 00:00 501.html www/html/js: drwxr-xr-x 1 0 0 32 Jan 1 00:00 . drwxr-xr-x 1 0 0 32 Jan 1 00:00 .. -rw-r--r-- 1 0 0 115 Jan 1 00:00 1 -rw-r--r-- 1 0 0 79 Jan 1 00:00 2 -rw-r--r-- 1 0 0 31 Jan 1 00:00 3 -rw-r--r-- 1 0 0 27 Jan 1 00:00 4 -rw-r--r-- 1 0 0 1083 Jan 1 00:00 info.js -rw-r--r-- 1 0 0 112 Jan 1 00:00 vssver.scc www/html/lib: drwxr-xr-x 1 0 0 32 Jan 1 00:00 . drwxr-xr-x 1 0 0 32 Jan 1 00:00 .. drwxr-xr-x 1 0 0 32 Jan 1 00:00 form drwxr-xr-x 1 0 0 32 Jan 1 00:00 general drwxr-xr-x 1 0 0 32 Jan 1 00:00 help drwxr-xr-x 1 0 0 32 Jan 1 00:00 images drwxr-xr-x 1 0 0 32 Jan 1 00:00 js drwxr-xr-x 1 0 0 32 Jan 1 00:00 noform drwxr-xr-x 1 0 0 32 Jan 1 00:00 popup drwxr-xr-x 1 0 0 32 Jan 1 00:00 template drwxr-xr-x 1 0 0 32 Jan 1 00:00 tool www/html/lib/form: drwxr-xr-x 1 0 0 32 Jan 1 00:00 . drwxr-xr-x 1 0 0 32 Jan 1 00:00 .. -rw-r--r-- 1 0 0 170 Jan 1 00:00 begin.stm -rw-r--r-- 1 0 0 498 Jan 1 00:00 end.stm -rw-r--r-- 1 0 0 209 Jan 1 00:00 postbuttons.stm -rw-r--r-- 1 0 0 501 Jan 1 00:00 subend.stm -rw-r--r-- 1 0 0 335 Jan 1 00:00 subpostbuttons.stm www/html/lib/general: drwxr-xr-x 1 0 0 32 Jan 1 00:00 . drwxr-xr-x 1 0 0 32 Jan 1 00:00 .. -rw-r--r-- 1 0 0 1920 Jan 1 00:00 formatting.js -rw-r--r-- 1 0 0 853 Jan 1 00:00 functions.js -rw-r--r-- 1 0 0 8071 Jan 1 00:00 validation.js www/html/lib/help: drwxr-xr-x 1 0 0 32 Jan 1 00:00 . drwxr-xr-x 1 0 0 32 Jan 1 00:00 .. -rw-r--r-- 1 0 0 554 Jan 1 00:00 begin.stm -rw-r--r-- 1 0 0 4165 Jan 1 00:00 display.shtml -rw-r--r-- 1 0 0 32 Jan 1 00:00 empty.shtml -rw-r--r-- 1 0 0 90 Jan 1 00:00 end.stm www/html/lib/images: drwxr-xr-x 1 0 0 32 Jan 1 00:00 . drwxr-xr-x 1 0 0 32 Jan 1 00:00 .. -rw-r--r-- 1 0 0 1530 Jan 1 00:00 ap-pic.gif -rw-r--r-- 1 0 0 107 Jan 1 00:00 b-menu.gif -rw-r--r-- 1 0 0 49 Jan 1 00:00 bg-g.gif -rw-r--r-- 1 0 0 41 Jan 1 00:00 bg-r.gif -rw-r--r-- 1 0 0 49 Jan 1 00:00 bg-w.gif -rw-r--r-- 1 0 0 204 Jan 1 00:00 clb-gw.gif -rw-r--r-- 1 0 0 111 Jan 1 00:00 clb-rg.gif -rw-r--r-- 1 0 0 111 Jan 1 00:00 clb-rw.gif -rw-r--r-- 1 0 0 204 Jan 1 00:00 clb-wg.gif -rw-r--r-- 1 0 0 114 Jan 1 00:00 clb-wr.gif -rw-r--r-- 1 0 0 201 Jan 1 00:00 clt-gw.gif -rw-r--r-- 1 0 0 111 Jan 1 00:00 clt-rg.gif -rw-r--r-- 1 0 0 112 Jan 1 00:00 clt-rw.gif -rw-r--r-- 1 0 0 201 Jan 1 00:00 clt-wg.gif -rw-r--r-- 1 0 0 114 Jan 1 00:00 clt-wr.gif -rw-r--r-- 1 0 0 202 Jan 1 00:00 crb-gw.gif -rw-r--r-- 1 0 0 111 Jan 1 00:00 crb-rg.gif -rw-r--r-- 1 0 0 112 Jan 1 00:00 crb-rw.gif -rw-r--r-- 1 0 0 202 Jan 1 00:00 crb-wg.gif -rw-r--r-- 1 0 0 113 Jan 1 00:00 crb-wr.gif -rw-r--r-- 1 0 0 202 Jan 1 00:00 crt-gw.gif -rw-r--r-- 1 0 0 110 Jan 1 00:00 crt-rg.gif -rw-r--r-- 1 0 0 111 Jan 1 00:00 crt-rw.gif -rw-r--r-- 1 0 0 202 Jan 1 00:00 crt-wg.gif -rw-r--r-- 1 0 0 111 Jan 1 00:00 crt-wr.gif -rw-r--r-- 1 0 0 325 Jan 1 00:00 disabled.gif -rw-r--r-- 1 0 0 42 Jan 1 00:00 dot_clear.gif -rw-r--r-- 1 0 0 42 Jan 1 00:00 empty.gif -rw-r--r-- 1 0 0 323 Jan 1 00:00 enabled.gif -rw-r--r-- 1 0 0 242 Jan 1 00:00 i-conf.gif -rw-r--r-- 1 0 0 178 Jan 1 00:00 i-exp.gif -rw-r--r-- 1 0 0 242 Jan 1 00:00 i-fconf.gif -rw-r--r-- 1 0 0 240 Jan 1 00:00 i-fexp.gif -rw-r--r-- 1 0 0 238 Jan 1 00:00 i-fstat.gif -rw-r--r-- 1 0 0 226 Jan 1 00:00 i-fupg.gif -rw-r--r-- 1 0 0 238 Jan 1 00:00 i-stat.gif -rw-r--r-- 1 0 0 166 Jan 1 00:00 i-upg.gif -rw-r--r-- 1 0 0 67 Jan 1 00:00 item_folded.gif -rw-r--r-- 1 0 0 64 Jan 1 00:00 item_unfolded.gif -rw-r--r-- 1 0 0 607 Jan 1 00:00 logo.gif -rw-r--r-- 1 0 0 43 Jan 1 00:00 spacer.gif www/html/lib/js: drwxr-xr-x 1 0 0 32 Jan 1 00:00 . drwxr-xr-x 1 0 0 32 Jan 1 00:00 .. -rw-r--r-- 1 0 0 4479 Jan 1 00:00 interface.js -rw-r--r-- 1 0 0 162 Jan 1 00:00 shared.js -rw-r--r-- 1 0 0 13087 Jan 1 00:00 validation.js www/html/lib/noform: drwxr-xr-x 1 0 0 32 Jan 1 00:00 . drwxr-xr-x 1 0 0 32 Jan 1 00:00 .. -rw-r--r-- 1 0 0 65 Jan 1 00:00 begin.stm -rw-r--r-- 1 0 0 414 Jan 1 00:00 end.stm www/html/lib/popup: drwxr-xr-x 1 0 0 32 Jan 1 00:00 . drwxr-xr-x 1 0 0 32 Jan 1 00:00 .. -rw-r--r-- 1 0 0 290 Jan 1 00:00 close_window.shtml -rw-r--r-- 1 0 0 141 Jan 1 00:00 popup.js -rw-r--r-- 1 0 0 1932 Jan 1 00:00 popup.stm -rw-r--r-- 1 0 0 353 Jan 1 00:00 popup_parent.js www/html/lib/template: drwxr-xr-x 1 0 0 32 Jan 1 00:00 . drwxr-xr-x 1 0 0 32 Jan 1 00:00 .. -rw-r--r-- 1 0 0 1311 Jan 1 00:00 footer.stm -rw-r--r-- 1 0 0 4205 Jan 1 00:00 header.stm -rw-r--r-- 1 0 0 718 Jan 1 00:00 mid.stm -rw-r--r-- 1 0 0 27 Jan 1 00:00 pfooter.stm -rw-r--r-- 1 0 0 884 Jan 1 00:00 pheader.stm www/html/lib/tool: drwxr-xr-x 1 0 0 32 Jan 1 00:00 . drwxr-xr-x 1 0 0 32 Jan 1 00:00 .. -rw-r--r-- 1 0 0 933 Jan 1 00:00 begin.stm -rw-r--r-- 1 0 0 269 Jan 1 00:00 end.stm www/html/status: drwxr-xr-x 1 0 0 32 Jan 1 00:00 . drwxr-xr-x 1 0 0 32 Jan 1 00:00 .. lrwxrwxrwx 1 0 0 27 Jan 1 00:00 cloned_MAC.stm -> /proc/net/macnat/cloned_MAC lrwxrwxrwx 1 0 0 21 Jan 1 00:00 status-defgw.stm -> /var/run/status-defgw lrwxrwxrwx 1 0 0 15 Jan 1 00:00 status.stm -> /var/run/status www/html/templates: drwxr-xr-x 1 0 0 32 Jan 1 00:00 . drwxr-xr-x 1 0 0 32 Jan 1 00:00 .. www/html/toolbars: drwxr-xr-x 1 0 0 32 Jan 1 00:00 . drwxr-xr-x 1 0 0 32 Jan 1 00:00 ..# ls -laR * bin: drwxr-xr-x 1 0 0 32 Jan 1 00:00 . drwxr-xr-x 1 0 0 32 Jan 1 00:00 .. etc: drwxr-xr-x 1 0 0 0 Jan 1 00:00 . drwxr-xr-x 1 0 0 32 Jan 1 00:00 .. drwxr-xr-x 1 0 0 0 Jan 1 00:00 images etc/images: drwxr-xr-x 1 0 0 0 Jan 1 00:00 . drwxr-xr-x 1 0 0 0 Jan 1 00:00 .. local: drwxr-xr-x 1 0 0 32 Jan 1 00:00 . drwxr-xr-x 1 0 0 32 Jan 1 00:00 .. drwxr-xr-x 1 0 0 32 Jan 1 00:00 include drwxr-xr-x 1 0 0 32 Jan 1 00:00 lib drwxr-xr-x 1 0 0 32 Jan 1 00:00 share local/include: drwxr-xr-x 1 0 0 32 Jan 1 00:00 . drwxr-xr-x 1 0 0 32 Jan 1 00:00 .. drwxr-xr-x 1 0 0 32 Jan 1 00:00 ucd-snmp local/include/ucd-snmp: drwxr-xr-x 1 0 0 32 Jan 1 00:00 . drwxr-xr-x 1 0 0 32 Jan 1 00:00 .. local/lib: drwxr-xr-x 1 0 0 32 Jan 1 00:00 . drwxr-xr-x 1 0 0 32 Jan 1 00:00 .. local/share: drwxr-xr-x 1 0 0 32 Jan 1 00:00 . drwxr-xr-x 1 0 0 32 Jan 1 00:00 .. drwxr-xr-x 1 0 0 32 Jan 1 00:00 snmp local/share/snmp: drwxr-xr-x 1 0 0 32 Jan 1 00:00 . drwxr-xr-x 1 0 0 32 Jan 1 00:00 .. drwxr-xr-x 1 0 0 32 Jan 1 00:00 mibs local/share/snmp/mibs: drwxr-xr-x 1 0 0 32 Jan 1 00:00 . drwxr-xr-x 1 0 0 32 Jan 1 00:00 .. share: drwxr-xr-x 1 0 0 32 Jan 1 00:00 . drwxr-xr-x 1 0 0 32 Jan 1 00:00 .. lrwxrwxrwx 1 0 0 6 Jan 1 00:00 ssl -> ../etc www: drwxr-xr-x 1 0 0 32 Jan 1 00:00 . drwxr-xr-x 1 0 0 32 Jan 1 00:00 .. drwxr-xr-x 1 0 0 32 Jan 1 00:00 cgi-bin drwxr-xr-x 1 0 0 32 Jan 1 00:00 html www/cgi-bin: drwxr-xr-x 1 0 0 32 Jan 1 00:00 . drwxr-xr-x 1 0 0 32 Jan 1 00:00 .. -rwxr-xr-x 1 0 0 301 Jan 1 00:00 chkstatus -rwxr-xr-x 1 0 0 53798 Jan 1 00:00 cyber_cgi -rwxr-xr-x 1 0 0 52380 Jan 1 00:00 cyber_cgi_0422 -rwxr-xr-x 1 0 0 52110 Jan 1 00:00 cyber_cgi_orig -rwxr-xr-x 1 0 0 52349 Jan 1 00:00 cyber_cgi_orig2 -rwxr-xr-x 1 0 0 519 Jan 1 00:00 reset2def -rwxr-xr-x 1 0 0 44961 Jan 1 00:00 setobject -rwxr-xr-x 1 0 0 233 Jan 1 00:00 trigss -rwxr-xr-x 1 0 0 26774 Jan 1 00:00 webupgrade -rwxr-xr-x 1 0 0 26771 Jan 1 00:00 webuploadCA -rwxr-xr-x 1 0 0 26781 Jan 1 00:00 webuploadRoot -rwxr-xr-x 1 0 0 507 Jan 1 00:00 wifitest www/html: drwxr-xr-x 1 0 0 32 Jan 1 00:00 . drwxr-xr-x 1 0 0 32 Jan 1 00:00 .. -rw-r--r-- 1 0 0 770 Jan 1 00:00 .webprj drwxr-xr-x 1 0 0 32 Jan 1 00:00 _standardfiles -rwxr-xr-x 1 0 0 22207 Jan 1 00:00 admin_b.shtml -rwxr-xr-x 1 0 0 21416 Jan 1 00:00 admin_b.shtml.bak -rwxr-xr-x 1 0 0 21737 Jan 1 00:00 admin_b.shtml_0313 -rwxr-xr-x 1 0 0 666 Jan 1 00:00 cmddone_b.html -rwxr-xr-x 1 0 0 6924 Jan 1 00:00 cyber_cgi_head -rwxr-xr-x 1 0 0 213 Jan 1 00:00 cyber_cgi_tail -rwxr-xr-x 1 0 0 2036 Jan 1 00:00 cyber_cgi_weppage -rwxr-xr-x 1 0 0 2745 Jan 1 00:00 header_b.gif -rwxr-xr-x 1 0 0 715 Jan 1 00:00 header_b.shtml -rw-r--r-- 1 0 0 7828 Jan 1 00:00 hiyan.txt -rwxr-xr-x 1 0 0 105 Jan 1 00:00 index.html -rwxr-xr-x 1 0 0 339 Jan 1 00:00 index_b.shtml -rwxr-xr-x 1 0 0 492 Jan 1 00:00 info.js -rwxr-xr-x 1 0 0 9050 Jan 1 00:00 info_b.shtml drwxr-xr-x 1 0 0 32 Jan 1 00:00 js drwxr-xr-x 1 0 0 32 Jan 1 00:00 lib -rwxr-xr-x 1 0 0 8790 Jan 1 00:00 md5.js -rwxr-xr-x 1 0 0 415 Jan 1 00:00 popup_close.html -rwxr-xr-x 1 0 0 260 Jan 1 00:00 popup_close_wep.html -rwxr-xr-x 1 0 0 189 Jan 1 00:00 redirect2index.html -rwxr-xr-x 1 0 0 18667 Jan 1 00:00 security_b.shtml -rwxr-xr-x 1 0 0 611 Jan 1 00:00 security_b2.shtml -rwxr-xr-x 1 0 0 129 Jan 1 00:00 security_b3.shtml -rwxr-xr-x 1 0 0 2279 Jan 1 00:00 site.shtml -rwxr-xr-x 1 0 0 4164 Jan 1 00:00 site2.shtml drwxr-xr-x 1 0 0 32 Jan 1 00:00 status -rwxr-xr-x 1 0 0 2395 Jan 1 00:00 style.css -rwxr-xr-x 1 0 0 2244 Jan 1 00:00 style_b.css -rwxr-xr-x 1 0 0 4065 Jan 1 00:00 stylewpa.css -rwxr-xr-x 1 0 0 1159 Jan 1 00:00 success.html drwxr-xr-x 1 0 0 32 Jan 1 00:00 templates drwxr-xr-x 1 0 0 32 Jan 1 00:00 toolbars -rwxr-xr-x 1 0 0 190 Jan 1 00:00 trigss.html -rwxr-xr-x 1 0 0 2529 Jan 1 00:00 upgrade.html -rw-r--r-- 1 0 0 237 Jan 1 00:00 ver.txt -rwxr-xr-x 1 0 0 352 Jan 1 00:00 vssver.scc -rwxr-xr-x 1 0 0 1929 Jan 1 00:00 wait.html -rwxr-xr-x 1 0 0 1418 Jan 1 00:00 wait4ipchange.shtml -rwxr-xr-x 1 0 0 290 Jan 1 00:00 wep.shtml -rwxr-xr-x 1 0 0 14201 Jan 1 00:00 wep128.shtml -rwxr-xr-x 1 0 0 14203 Jan 1 00:00 wep128_adhoc.shtml -rwxr-xr-x 1 0 0 14722 Jan 1 00:00 wep64.shtml -rwxr-xr-x 1 0 0 14663 Jan 1 00:00 wep64_adhoc.shtml -rwxr-xr-x 1 0 0 302 Jan 1 00:00 wep_adhoc.shtml -rwxr-xr-x 1 0 0 29200 Jan 1 00:00 wireless_b.shtml -rwxr-xr-x 1 0 0 5982 Jan 1 00:00 wisoc_genbr_web_basedonubicom.webprj -rwxr-xr-x 1 0 0 4563 Jan 1 00:00 wlan.js www/html/_standardfiles: drwxr-xr-x 1 0 0 32 Jan 1 00:00 . drwxr-xr-x 1 0 0 32 Jan 1 00:00 .. drwxr-xr-x 1 0 0 32 Jan 1 00:00 cgi drwxr-xr-x 1 0 0 32 Jan 1 00:00 upgrade drwxr-xr-x 1 0 0 32 Jan 1 00:00 webserver www/html/_standardfiles/cgi: drwxr-xr-x 1 0 0 32 Jan 1 00:00 . drwxr-xr-x 1 0 0 32 Jan 1 00:00 .. drwxr-xr-x 1 0 0 32 Jan 1 00:00 setobject drwxr-xr-x 1 0 0 32 Jan 1 00:00 webupgrade www/html/_standardfiles/cgi/setobject: drwxr-xr-x 1 0 0 32 Jan 1 00:00 . drwxr-xr-x 1 0 0 32 Jan 1 00:00 .. -rw-r--r-- 1 0 0 552 Jan 1 00:00 posterror.shtml -rwxr-xr-x 1 0 0 234 Jan 1 00:00 posterror.shtml-saved -rwxr-xr-x 1 0 0 154 Jan 1 00:00 success.shtml www/html/_standardfiles/cgi/webupgrade: drwxr-xr-x 1 0 0 32 Jan 1 00:00 . drwxr-xr-x 1 0 0 32 Jan 1 00:00 .. -rwxr-xr-x 1 0 0 1838 Jan 1 00:00 uploadcomplete.shtml -rwxr-xr-x 1 0 0 955 Jan 1 00:00 uploaderror.shtml.orig www/html/_standardfiles/upgrade: drwxr-xr-x 1 0 0 32 Jan 1 00:00 . drwxr-xr-x 1 0 0 32 Jan 1 00:00 .. -rwxr-xr-x 1 0 0 5609 Jan 1 00:00 index.shtml -rwxr-xr-x 1 0 0 3663 Jan 1 00:00 index.shtmlold lrwxrwxrwx 1 0 0 19 Jan 1 00:00 status -> /tmp/upgrade_status www/html/_standardfiles/webserver: drwxr-xr-x 1 0 0 32 Jan 1 00:00 . drwxr-xr-x 1 0 0 32 Jan 1 00:00 .. drwxr-xr-x 1 0 0 32 Jan 1 00:00 errors www/html/_standardfiles/webserver/errors: drwxr-xr-x 1 0 0 32 Jan 1 00:00 . drwxr-xr-x 1 0 0 32 Jan 1 00:00 .. -rwxr-xr-x 1 0 0 755 Jan 1 00:00 301.html -rwxr-xr-x 1 0 0 755 Jan 1 00:00 302.html -rwxr-xr-x 1 0 0 729 Jan 1 00:00 400.html -rwxr-xr-x 1 0 0 730 Jan 1 00:00 401.html -rwxr-xr-x 1 0 0 716 Jan 1 00:00 403.html -rwxr-xr-x 1 0 0 734 Jan 1 00:00 404.html -rwxr-xr-x 1 0 0 753 Jan 1 00:00 500.html -rwxr-xr-x 1 0 0 782 Jan 1 00:00 501.html www/html/js: drwxr-xr-x 1 0 0 32 Jan 1 00:00 . drwxr-xr-x 1 0 0 32 Jan 1 00:00 .. -rw-r--r-- 1 0 0 115 Jan 1 00:00 1 -rw-r--r-- 1 0 0 79 Jan 1 00:00 2 -rw-r--r-- 1 0 0 31 Jan 1 00:00 3 -rw-r--r-- 1 0 0 27 Jan 1 00:00 4 -rw-r--r-- 1 0 0 1083 Jan 1 00:00 info.js -rw-r--r-- 1 0 0 112 Jan 1 00:00 vssver.scc www/html/lib: drwxr-xr-x 1 0 0 32 Jan 1 00:00 . drwxr-xr-x 1 0 0 32 Jan 1 00:00 .. drwxr-xr-x 1 0 0 32 Jan 1 00:00 form drwxr-xr-x 1 0 0 32 Jan 1 00:00 general drwxr-xr-x 1 0 0 32 Jan 1 00:00 help drwxr-xr-x 1 0 0 32 Jan 1 00:00 images drwxr-xr-x 1 0 0 32 Jan 1 00:00 js drwxr-xr-x 1 0 0 32 Jan 1 00:00 noform drwxr-xr-x 1 0 0 32 Jan 1 00:00 popup drwxr-xr-x 1 0 0 32 Jan 1 00:00 template drwxr-xr-x 1 0 0 32 Jan 1 00:00 tool www/html/lib/form: drwxr-xr-x 1 0 0 32 Jan 1 00:00 . drwxr-xr-x 1 0 0 32 Jan 1 00:00 .. -rw-r--r-- 1 0 0 170 Jan 1 00:00 begin.stm -rw-r--r-- 1 0 0 498 Jan 1 00:00 end.stm -rw-r--r-- 1 0 0 209 Jan 1 00:00 postbuttons.stm -rw-r--r-- 1 0 0 501 Jan 1 00:00 subend.stm -rw-r--r-- 1 0 0 335 Jan 1 00:00 subpostbuttons.stm www/html/lib/general: drwxr-xr-x 1 0 0 32 Jan 1 00:00 . drwxr-xr-x 1 0 0 32 Jan 1 00:00 .. -rw-r--r-- 1 0 0 1920 Jan 1 00:00 formatting.js -rw-r--r-- 1 0 0 853 Jan 1 00:00 functions.js -rw-r--r-- 1 0 0 8071 Jan 1 00:00 validation.js www/html/lib/help: drwxr-xr-x 1 0 0 32 Jan 1 00:00 . drwxr-xr-x 1 0 0 32 Jan 1 00:00 .. -rw-r--r-- 1 0 0 554 Jan 1 00:00 begin.stm -rw-r--r-- 1 0 0 4165 Jan 1 00:00 display.shtml -rw-r--r-- 1 0 0 32 Jan 1 00:00 empty.shtml -rw-r--r-- 1 0 0 90 Jan 1 00:00 end.stm www/html/lib/images: drwxr-xr-x 1 0 0 32 Jan 1 00:00 . drwxr-xr-x 1 0 0 32 Jan 1 00:00 .. -rw-r--r-- 1 0 0 1530 Jan 1 00:00 ap-pic.gif -rw-r--r-- 1 0 0 107 Jan 1 00:00 b-menu.gif -rw-r--r-- 1 0 0 49 Jan 1 00:00 bg-g.gif -rw-r--r-- 1 0 0 41 Jan 1 00:00 bg-r.gif -rw-r--r-- 1 0 0 49 Jan 1 00:00 bg-w.gif -rw-r--r-- 1 0 0 204 Jan 1 00:00 clb-gw.gif -rw-r--r-- 1 0 0 111 Jan 1 00:00 clb-rg.gif -rw-r--r-- 1 0 0 111 Jan 1 00:00 clb-rw.gif -rw-r--r-- 1 0 0 204 Jan 1 00:00 clb-wg.gif -rw-r--r-- 1 0 0 114 Jan 1 00:00 clb-wr.gif -rw-r--r-- 1 0 0 201 Jan 1 00:00 clt-gw.gif -rw-r--r-- 1 0 0 111 Jan 1 00:00 clt-rg.gif -rw-r--r-- 1 0 0 112 Jan 1 00:00 clt-rw.gif -rw-r--r-- 1 0 0 201 Jan 1 00:00 clt-wg.gif -rw-r--r-- 1 0 0 114 Jan 1 00:00 clt-wr.gif -rw-r--r-- 1 0 0 202 Jan 1 00:00 crb-gw.gif -rw-r--r-- 1 0 0 111 Jan 1 00:00 crb-rg.gif -rw-r--r-- 1 0 0 112 Jan 1 00:00 crb-rw.gif -rw-r--r-- 1 0 0 202 Jan 1 00:00 crb-wg.gif -rw-r--r-- 1 0 0 113 Jan 1 00:00 crb-wr.gif -rw-r--r-- 1 0 0 202 Jan 1 00:00 crt-gw.gif -rw-r--r-- 1 0 0 110 Jan 1 00:00 crt-rg.gif -rw-r--r-- 1 0 0 111 Jan 1 00:00 crt-rw.gif -rw-r--r-- 1 0 0 202 Jan 1 00:00 crt-wg.gif -rw-r--r-- 1 0 0 111 Jan 1 00:00 crt-wr.gif -rw-r--r-- 1 0 0 325 Jan 1 00:00 disabled.gif -rw-r--r-- 1 0 0 42 Jan 1 00:00 dot_clear.gif -rw-r--r-- 1 0 0 42 Jan 1 00:00 empty.gif -rw-r--r-- 1 0 0 323 Jan 1 00:00 enabled.gif -rw-r--r-- 1 0 0 242 Jan 1 00:00 i-conf.gif -rw-r--r-- 1 0 0 178 Jan 1 00:00 i-exp.gif -rw-r--r-- 1 0 0 242 Jan 1 00:00 i-fconf.gif -rw-r--r-- 1 0 0 240 Jan 1 00:00 i-fexp.gif -rw-r--r-- 1 0 0 238 Jan 1 00:00 i-fstat.gif -rw-r--r-- 1 0 0 226 Jan 1 00:00 i-fupg.gif -rw-r--r-- 1 0 0 238 Jan 1 00:00 i-stat.gif -rw-r--r-- 1 0 0 166 Jan 1 00:00 i-upg.gif -rw-r--r-- 1 0 0 67 Jan 1 00:00 item_folded.gif -rw-r--r-- 1 0 0 64 Jan 1 00:00 item_unfolded.gif -rw-r--r-- 1 0 0 607 Jan 1 00:00 logo.gif -rw-r--r-- 1 0 0 43 Jan 1 00:00 spacer.gif www/html/lib/js: drwxr-xr-x 1 0 0 32 Jan 1 00:00 . drwxr-xr-x 1 0 0 32 Jan 1 00:00 .. -rw-r--r-- 1 0 0 4479 Jan 1 00:00 interface.js -rw-r--r-- 1 0 0 162 Jan 1 00:00 shared.js -rw-r--r-- 1 0 0 13087 Jan 1 00:00 validation.js www/html/lib/noform: drwxr-xr-x 1 0 0 32 Jan 1 00:00 . drwxr-xr-x 1 0 0 32 Jan 1 00:00 .. -rw-r--r-- 1 0 0 65 Jan 1 00:00 begin.stm -rw-r--r-- 1 0 0 414 Jan 1 00:00 end.stm www/html/lib/popup: drwxr-xr-x 1 0 0 32 Jan 1 00:00 . drwxr-xr-x 1 0 0 32 Jan 1 00:00 .. -rw-r--r-- 1 0 0 290 Jan 1 00:00 close_window.shtml -rw-r--r-- 1 0 0 141 Jan 1 00:00 popup.js -rw-r--r-- 1 0 0 1932 Jan 1 00:00 popup.stm -rw-r--r-- 1 0 0 353 Jan 1 00:00 popup_parent.js www/html/lib/template: drwxr-xr-x 1 0 0 32 Jan 1 00:00 . drwxr-xr-x 1 0 0 32 Jan 1 00:00 .. -rw-r--r-- 1 0 0 1311 Jan 1 00:00 footer.stm -rw-r--r-- 1 0 0 4205 Jan 1 00:00 header.stm -rw-r--r-- 1 0 0 718 Jan 1 00:00 mid.stm -rw-r--r-- 1 0 0 27 Jan 1 00:00 pfooter.stm -rw-r--r-- 1 0 0 884 Jan 1 00:00 pheader.stm www/html/lib/tool: drwxr-xr-x 1 0 0 32 Jan 1 00:00 . drwxr-xr-x 1 0 0 32 Jan 1 00:00 .. -rw-r--r-- 1 0 0 933 Jan 1 00:00 begin.stm -rw-r--r-- 1 0 0 269 Jan 1 00:00 end.stm www/html/status: drwxr-xr-x 1 0 0 32 Jan 1 00:00 . drwxr-xr-x 1 0 0 32 Jan 1 00:00 .. lrwxrwxrwx 1 0 0 27 Jan 1 00:00 cloned_MAC.stm -> /proc/net/macnat/cloned_MAC lrwxrwxrwx 1 0 0 21 Jan 1 00:00 status-defgw.stm -> /var/run/status-defgw lrwxrwxrwx 1 0 0 15 Jan 1 00:00 status.stm -> /var/run/status www/html/templates: drwxr-xr-x 1 0 0 32 Jan 1 00:00 . drwxr-xr-x 1 0 0 32 Jan 1 00:00 .. www/html/toolbars: drwxr-xr-x 1 0 0 32 Jan 1 00:00 . drwxr-xr-x 1 0 0 32 Jan 1 00:00 ..

ls -laR /etc/*

|<pre> # ls -laR /etc/* -rw-r--r-- 1 0 0 41 Jan 1 00:00 /etc/BUILD -rwxr-xr-x 1 0 0 6863 Jan 1 00:00 /etc/aplogdb -rw-r--r-- 1 0 0 221 Jan 1 00:00 /etc/boa.conf -rwxr-xr-x 1 0 0 1863 Jan 1 00:00 /etc/inittab -rwxr-xr-x 1 0 0 434 Jan 1 00:00 /etc/ip-up -rw-r--r-- 1 0 0 49 Jan 1 00:00 /etc/passwd -rwxr-xr-x 1 0 0 1191 Jan 1 00:00 /etc/protocols -rw-r--r-- 1 0 0 2451 Jan 1 00:00 /etc/regulatory.conf lrwxrwxrwx 1 0 0 20 Jan 1 00:00 /etc/resolv.conf -> /var/etc/resolv.conf -rw-r--r-- 1 0 0 46577 Jan 1 00:00 /etc/schema -rwxr-xr-x 1 0 0 11138 Jan 1 00:00 /etc/services -rwxr-xr-x 1 0 0 212 Jan 1 00:00 /etc/startup.list -rwxr-xr-x 1 0 0 677 Jan 1 00:00 /etc/udhcpd_default.conf -rw-r--r-- 1 0 0 69 Jan 1 00:00 /etc/version.conf /etc/defaults: drwxr-xr-x 1 0 0 32 Jan 1 00:00 . drwxr-xr-x 1 0 0 32 Jan 1 00:00 .. -rw-r--r-- 1 0 0 13569 Jan 1 00:00 datastore.dat /etc/init.d: drwxr-xr-x 1 0 0 32 Jan 1 00:00 . drwxr-xr-x 1 0 0 32 Jan 1 00:00 .. -rwxr-xr-x 1 0 0 325 Jan 1 00:00 aplogd -rwxr-xr-x 1 0 0 931 Jan 1 00:00 boa -rwxr-xr-x 1 0 0 153 Jan 1 00:00 cybersupplicant -rwxr-xr-x 1 0 0 943 Jan 1 00:00 datastore -rwxr-xr-x 1 0 0 1161 Jan 1 00:00 defaults -rwxr-xr-x 1 0 0 514 Jan 1 00:00 iappd -rwxr-xr-x 1 0 0 486 Jan 1 00:00 macnat -rwxr-xr-x 1 0 0 98 Jan 1 00:00 modules -rwxr-xr-x 1 0 0 378 Jan 1 00:00 network -rwxr-xr-x 1 0 0 648 Jan 1 00:00 paed -rwxr-xr-x 1 0 0 218 Jan 1 00:00 shelld -rwxr-xr-x 1 0 0 910 Jan 1 00:00 snmpd -rwxr-xr-x 1 0 0 311 Jan 1 00:00 sysd -rwxr-xr-x 1 0 0 280 Jan 1 00:00 sysd_hiyan -rwxr-xr-x 1 0 0 1144 Jan 1 00:00 udhcpd -rwxr-xr-x 1 0 0 1157 Jan 1 00:00 upgraded -rwxr-xr-x 1 0 0 2214 Jan 1 00:00 wep -rwxr-xr-x 1 0 0 2300 Jan 1 00:00 wep_fromMax -rwxr-xr-x 1 0 0 2214 Jan 1 00:00 wep_orig /etc/ppp: drwxr-xr-x 1 0 0 32 Jan 1 00:00 . drwxr-xr-x 1 0 0 32 Jan 1 00:00 .. lrwxrwxrwx 1 0 0 21 Jan 1 00:00 chap-secrets -> /var/etc/chap-secrets -rwxr-xr-x 1 0 0 144 Jan 1 00:00 ip-up lrwxrwxrwx 1 0 0 20 Jan 1 00:00 pap-secrets -> /var/etc/pap-secrets lrwxrwxrwx 1 0 0 16 Jan 1 00:00 resolv.conf -> /etc/resolv.conf /etc/rc.d: drwxr-xr-x 1 0 0 32 Jan 1 00:00 . drwxr-xr-x 1 0 0 32 Jan 1 00:00 .. -rwxr-xr-x 1 0 0 289 Jan 1 00:00 rc -rwxr-xr-x 1 0 0 1936 Jan 1 00:00 rcS

Pictures

User Images

• external
•

  angled

•

  LED side

•

  label side

•

  back

•

  power adapter

• internal
•

  board top

•

  CPU

•

  left side of the Flash chip

•

  right side of the Flash chip

•

  RAM

•

  ISL3692 RF

•

  AC101L PHY

•

  CyberTAN board ID

•

  board bottom

Notes

Included PSU(s)

The included power supply would seem to be a Deer Computer AD1605CF.

Deer Computer AD1605CF (more)
Input: 100-240 VAC ~ 47-63 Hz, 0.8 A
Input connector: unknown Style: small, straight
Output: 5 VDC, 2.5 A
Output connector: barrel (center +)  OD: ??  ID: ??  LEN: ??
