ASUS ROG Areion 10G
From TechInfoDepot
Jump to navigationJump to search
| 10GbE PCI-Express LAN Card | |
|
| |
| Homepage | Product page |
|---|---|
| WikiDevi.wi-cat.ru | ASUS ROG Areion 10G |
| Wikipedia | Asus routers |
| Platform | |
| Brand • Model • Rev | ASUS ROG Areion10G |
| Serial number prefix | 90MC04N0-M0TAY0 |
| Interface | PCIe 3.0 |
| Connector | 4x |
| Form factor | single-lane |
|
| |
|
ID:1d6a:d107 (3 addl. devices) SS: 1043:872e | |
|
| |
| Chip1 | Aquantia AQC107 |
|
Ethernet OUI: none specified | |
| Ethernet Port Count | 1-10GbE |
| Ethernet connector | 8P8C |
| Wired Standard | IEEE 802.3i/3u/3ab/3bz/3ae |
| Auto-MDIX | supported |
| Jumbo frame | yes |
| Other | |
Flags: | |
|
| |
|
| |
| Retail | |
| (Est.) release date | 04 April 2017 |
| Newegg | 9SIA4UG5RB2658 |
| ASIN |
B071WJ7G51 |
| Country of manuf | China |
| Physical | |
| Power LED color/ function tag | none |
| Media connection/ activity LED color/ function tag | red (activity) |
| Media speed LED color/ function tag | green (10G), yellow (5G) |
| Media duplex LED color/ function tag | none |
For a list of all currently documented Aquantia SoC's with specifications, see Aquantia.
For a list of all currently documented ASUS devices with specifications, see ASUS.
Overview

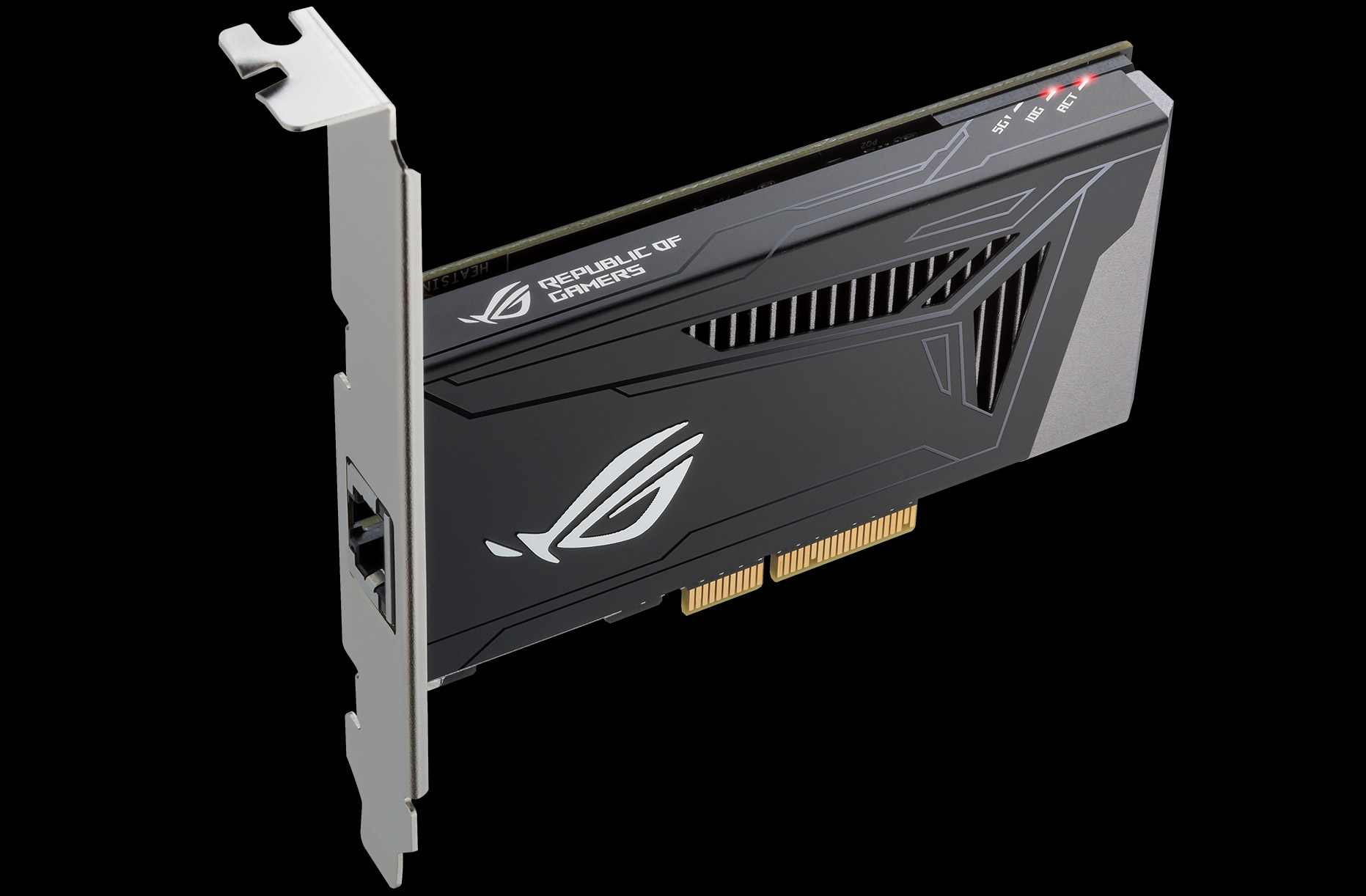

"REPUBLIC OF GAMERS" is silkscreened on the top of the cover.
- This device has a heatsink affixed to the Ethernet controller.
Manufacturer reference: 90MC04N0-M0TAY0
Specifications
- Interface: 1x RJ-45, PCIe 3.0 x4
- Data Connection Rate: 100Mbps/1Gbps/2.5Gbps/5Gbps/10Gbps
- Standard Compliance:
- 802.3u 100BaseTX
- 802.3ab 1000BaseT
- 802.3bz 2.5GBaseT
- 802.3bz 5GBaseT
- 802.3bz 10GBaseT
- LED Indicator:
- 10G (Green): Flashing-NIC card is transferring data at 10Gbps
- Under 5G (Yellow): Flashing-NIC card is transferring data under 5Gbps
- Speed LED (Red): LED indicators On the Edge of PCB,
- shows Under 5G/10G/Activity (Flashing)
Links of Interest
News
- AQC107: 100Mb/1GbE/2.5GbE/5GbE/10GbE (10GBase-T)
- AQC108: 100Mb/1GbE/2.5GbE/5GbE (11x7 mm)
vendor: 1d6a, device: 0001 vendor: 1d6a, device: d100 vendor: 1d6a, device: d107 vendor: 1d6a, device: d108 vendor: 1d6a, device: d109 %AsusROG.DeviceDesc% = Jamaica10G.ndi, PCI\VEN_1D6A&DEV_D107&SUBSYS_872E1043&REV_01 %AsusROG.DeviceDesc% = Atlantic10G.ndi, PCI\VEN_1D6A&DEV_D107&SUBSYS_872E1043&REV_02 %AsusXG.DeviceDesc% = Jamaica10G.ndi, PCI\VEN_1D6A&DEV_D107&SUBSYS_87411043&REV_01 %AsusXG.DeviceDesc% = Atlantic10GAsus.ndi, PCI\VEN_1D6A&DEV_D107&SUBSYS_87411043&REV_02
