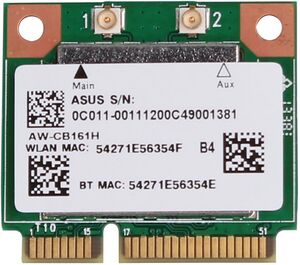

AzureWave AW-CB161H
From TechInfoDepot
Jump to navigationJump to search
abgn+ac (AC600) | |||||||
---|---|---|---|---|---|---|---|
802.11a/b/g/n/ac Wireless Combo Module | |||||||
WikiDevi.wi-cat.ru | AzureWave AW-CB161H | ||||||
Platform | |||||||
Brand • Model • Rev | AzureWave AW-CB161H | ||||||
Interface | Mini PCIe | ||||||
Connector | Mini PCIe | ||||||
Form factor | (half) | ||||||
ID:10ec:8821 (2 addl. devices) SS: 1a3b:2161 Windows: PCI\VEN_10EC&DEV_8821&SUBSYS_21611A3B | |||||||
FCCID | TX2-RTL8821AE, TLZ-CB161H | ||||||
ICID | 6317A-RTL8821AE | ||||||
Chip1 | Realtek RTL8821AE | ||||||
Antenna Connection | U.FL | ||||||
MIMO status | 1x1:1 | ||||||
Wireless Standards | IEEE 802.11a/b/g/n/ac | ||||||
802.11ac | up to 433 Mbps | ||||||
802.11n | up to 150/150 Mbps | ||||||
802.11g | up to 54 Mbps | ||||||
802.11b | up to 11 Mbps | ||||||
802.11a | up to 54 Mbps | ||||||
Operating Frequency | 2.4 or 5 GHz | ||||||
Other | |||||||
Flags: Bluetooth | |||||||
Probable Linux driver | |||||||
Windows driver | |||||||
Retail | |||||||
FCC approval date | 10 July 2013 | ||||||
ASINs |
B012IBJ2PM ![]() B00HRFS1GQ ![]() | ||||||
Country of manuf | China | ||||||
|
For a list of all currently documented Realtek chipsets with specifications, see Realtek.
For a list of all currently documented AzureWave devices with specifications, see AzureWave.
Overview
The FCC test report states that there are two configurations of the EUT:
- 1: HMC, PCIe, Diversity antenna conifguration, I-PEX (U.FL compatible) RF connector
- 2: HMC, PCIe, Fixed antenna conifguration, I-PEX (U.FL compatible) RF connector
- AzureWave AW-CB161H - Realtek RTL8821AE (1T1R 802.11ac) BT 4.0
- ASUS M21AC (Desktop PC) models (forums topic)
- 10ec:8821 (1a3b:2161) PCI ID (AzureWave subsystem)
