Broadcom BCM94366MC

an+ac (AC2400)
802.11a/n/ac 4x4 Radio Mini PCIe Module
WikiDevi.wi-cat.ru	Broadcom BCM94366MC
Platform
Brand • Model • Rev	Broadcom BCM94366MCH5 E1
Interface	Mini PCIe 2.0
Connector	Mini PCIe
Form factor	module (oversized)
ID:14e4:43c6 (1 addl. devices) Windows: PCI\VEN_14E4&DEV_43C6
FCCID	QDS-BRCM1092
Chip1	Broadcom BCM4366E
OUI: 00:10:18 (3 E, 2 W)
Antenna Connection	U.FL
MIMO status	4x4:4
Wireless Standards	IEEE 802.11a/n/ac
802.11ac	up to 1733 Mbps
802.11n	up to 600 Mbps
802.11a	up to 54 Mbps
Operating Frequency	2.4 or 5 GHz
Other
Flags: MU-MIMO, high power
Additional chips 5GHz Power Amplifier Module;RFMD;RFPA5542;;4;
Probable Linux driver none PCI ID not yet observed in any mainline kernel / this list (note: outdated) (see also passys)
Retail
Availability	reference design
FCC approval date	18 April 2017

For a list of all currently documented Broadcom chipsets with specifications, see Broadcom.

For a list of all currently documented Broadcom device with specifications, see Broadcom.

• 1733 Mbps - 4SS 5GHz 802.11ac (80MHz chan.),

• 600 Mbps - 4SS 2.4GHz 802.11n (40MHz chan.) = AC2400 class

Overview

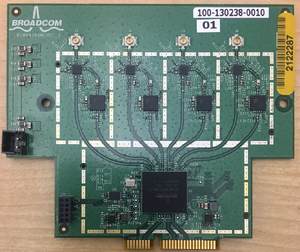

"BCM94366MCH5E_1" and Broadcom logo is silkscreened on the board.

• Broadcom BCM94366MC (H5) - 802.11a/n/ac 4x4 Radio Module

FCC ID: QDS-BRCM1092 (2017-04-18) • Broadcom BCM4366E

• ASUS RT-AC68U v2 nvram @ GitHub (RMerlin)

Reference Board: BCM94709R, boardtype=0x0665

Board revision is P103, boardrev=0x1103

See also ASUS PCE-AC88 Dual Band 4x4 802.11ac PCI-E Adapter..

• Broadcom BCM4366 4T4R 802.11ac PCIe

BCM4366_D11AC_ID	0x43c3    /* 4366 802.11ac dualband */
BCM4366_D11AC2G_ID	0x43c4    /* 4366 802.11n 2.4G device */
BCM4366_D11AC5G_ID	0x43c5    /* 4366 802.11ac 5G device */

See also

• Broadcom BCM94366MC (H5) - 802.11a/n/ac 4x4 Radio Module

FCC ID: QDS-BRCM1092 (2017-04-18) • Broadcom BCM4366E

• Broadcom BCM94709R-H - 802.11a/n/ac High-Power 5GHz AP

FCC ID: QDS-BRCM1092 (2017-04-18) • Broadcom BCM4366E

• Broadcom BCM94366EMC (H5) - 802.11a/n/ac 4x4 Radio Module

FCC ID: QDS-BRCM1091 (2017-04-14) • Broadcom BCM4366E

• Broadcom BCM94709R-M - 802.11a/n/ac Mid-Power 5GHz AP

FCC ID: QDS-BRCM1091 (2017-04-14) • Broadcom BCM4366E

• Broadcom BCM94709R4366AC - 802.11ac 4x4 Wireless Adapter

FCC ID: MSQ-PCIE0U00 (2015-11-23) • Broadcom BCM4366
