Moxa WAPC002

From TechInfoDepot
Jump to navigationJump to search
an+ac (AC1750)
MOXA IEEE 802.11a/n/ac 4x4 module
Generic mini-pcie card icon.png
Platform
BrandModelRev Moxa WAPC002
Interface Mini PCIe
Connector Mini PCIe
Form factor (oversized)
FCCID SLE-WAPC002
Chip1 Qualcomm Atheros QCA9984

OUI: none specified

Antenna Connection U.FL
MIMO status 4x4:4
Wireless Standards IEEE 802.11a/n/ac
802.11ac up to 1733 Mbps
802.11n up to 600 Mbps
802.11a up to 54 Mbps
Operating Frequency 5 GHz
Other

Flags:
Wave2, MU-MIMO, VHT160

Additional chips
5GHz RF Power Amplifier;RFMD;RFPA5542;>>>, PA5542, 00ZA;4;
256-Kbit serial EEPROM;STMicroelectronics;M24256-BW;4256BWP, ST K7198;1;

Probable Linux driver
unknown
(see also passys)

Windows driver
possibly see ath-drivers.eu

Retail
FCC approval date 06 November 2018
Country of manuf Taiwan

For a list of all currently documented Qualcomm Atheros (QCA) chipsets with specifications, see Qualcomm Atheros.

1300 Mbps - 3SS 5GHz 802.11ac (80MHz chan.),
450 Mbps - 3SS 2.4GHz 802.11n (40MHz chan.) = AC1750 class

Overview

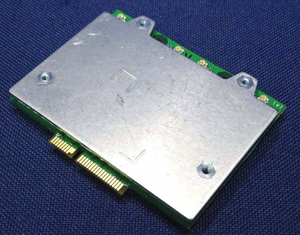

"PCB WAPC002 VER:0.91" and "MADE IN TAIWAN" are silkscreened on the board in the FCC photos.
