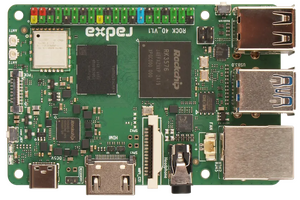

Radxa ROCK 4D
From TechInfoDepot
Jump to navigationJump to search
| abgn+ac+ax (AX600) | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Single Board Computer | |||||||||||||
|
| |||||||||||||
| Homepage | Product page | ||||||||||||
| 3rd Party Firmware | |||||||||||||
| dd-wrt | Status Unknown | ||||||||||||
| OpenWrt | Supported | ||||||||||||
| Tomato any flavor | Incompatible | ||||||||||||
| Gargoyle | Status Unknown | ||||||||||||
| Platform | |||||||||||||
| Brand • Model • Rev | Radxa ROCK 4D | ||||||||||||
| FCC ID (fcc.io) | none specified | ||||||||||||
| FCC ID (fcc.report) | none specified | ||||||||||||
| Type | single-board computer | ||||||||||||
| CPU1 | Rockchip RK3576 | ||||||||||||
| CPU1 Type | ARM Cortex-A72 | ||||||||||||
| CPU1 Type2 | ARM Cortex-A53 | ||||||||||||
| CPU1 Speed | 2.2 GHz ( 4 cores ) | ||||||||||||
| CPU1 Speed2 | 1.8 GHz ( 4 cores ) | ||||||||||||
| Flash1 Chip | Brand? Model? | ||||||||||||
| Flash1 Size | 16 MiB16,777,216 B <br />131,072 Kib <br />16,384 KiB <br />128 Mib <br />0.0156 GiB <br /> | ||||||||||||
| RAM1 Size | 2 GiB 2,048 MiB <br />2,147,483,648 B <br />16,777,216 Kib <br />2,097,152 KiB <br />16,384 Mib <br /> (LPDDR5) | ||||||||||||
| RAM1 Chip | Brand? Model? | ||||||||||||
| ETH chip1 | Brand? Model? | ||||||||||||
| Ethernet Port Count | 1-1GbE-LAN | ||||||||||||
| Wired Standard | IEEE 802.3i/3u/3ab | ||||||||||||
|
802dot11 OUI: none specified | |||||||||||||
| Stock bootloader | U-Boot | ||||||||||||
| Expansion IF types | 1-lane PCIe 2.1 via FPC connector, USB 2.0, USB 3.0, eMMC 5.1 | ||||||||||||
| Mini PCIe slots | 1 | ||||||||||||
| USB ports | 4 | ||||||||||||
| USB Hub Compatible | Untested | ||||||||||||
| Power | 5 VDC, ? A | ||||||||||||
| Connector type | USB Type-C | ||||||||||||
| Serial Port (UART) | yes, 3.3, 1500000 / 8N1 | ||||||||||||
|
Flags: | |||||||||||||
|
| |||||||||||||
| Other | |||||||||||||
|
| |||||||||||||
| 3rd Party Firmware Support |
OpenWrt • (List | Dev | DLs) | ||||||||||||
| Radio 1 | |||||||||||||
| Radio1 module | AIC AIC8800D80 | ||||||||||||
| Radio1 module IF | unknown | ||||||||||||
| Chip1 | Quectel FCU760K | ||||||||||||
| Wireless interface OUI | none specified | ||||||||||||
| Antenna Connector Type | none specified | ||||||||||||
| MIMO status | 1x1:1 | ||||||||||||
| Wireless Standard | IEEE 802.11a/b/g/n/ac/ax | ||||||||||||
| 802.11ax | up to 287/600.5 Mbps | ||||||||||||
| 802.11ac | up to 433 Mbps | ||||||||||||
| 802.11n | up to 150 Mbps | ||||||||||||
| 802.11g | up to 54 Mbps | ||||||||||||
| 802.11b | up to 11 Mbps | ||||||||||||
| 802.11a | up to 54 Mbps | ||||||||||||
| WiFi Operating Frequency | 2.4 or 5 GHz | ||||||||||||
| |||||||||||||
Quectel not currently documented.
For a list of all currently documented Rockchip SoC's with specifications, see Rockchip.
For a list of all currently documented Radxa devices with specifications, see Radxa.
Flashing
| NOTE: During configuration or flashing a device, the only things that should be hooked to the device is the computer and power. |
Flashing OpenWrt
| The development branch can contain experimental code that is under active development and should not be used for production environments. Snapshot images may support additional hardware; however, it is experimental, considered unstable, and sometimes won't compile. |
| Prebuilt snapshot images do not come with any web interface or GUI. You will need to be comfortable using a command line and remote shell to install one yourself → How to install LuCI |
OpenWrt Target: rockchip
OpenWrt Subtarget: armv8
OpenWrt Package architecture: aarch64_generic
Support started version: unknown
Current supported version: snapshot
OpenWrt Subtarget: armv8
OpenWrt Package architecture: aarch64_generic
Support started version: unknown
Current supported version: snapshot
WLAN Hardware: AIC AIC8800D80 (Quectel FCU760K)
Comment:
2/4/8 or 16GB DDR5 RAM, eMMC 5.1 / UFS 2.0 module connector
Comment:
2/4/8 or 16GB DDR5 RAM, eMMC 5.1 / UFS 2.0 module connector
Please insert instructions here
