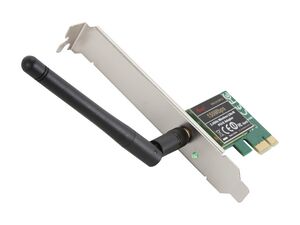

Rosewill RNX-N150PCe v2
From TechInfoDepot
Jump to navigationJump to search
| bgn (N150) | ||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2.4GHz Wireless N PCI-E Adapter | ||||||||||||||||||||||
|
| ||||||||||||||||||||||
| WikiDevi.wi-cat.ru | Rosewill RNX-N150PCe v2 | |||||||||||||||||||||
| Wikipedia | Rosewill | |||||||||||||||||||||
| Platform | ||||||||||||||||||||||
| Brand • Model • Rev | Rosewill RNX-N150PCe v2 | |||||||||||||||||||||
| Interface | PCIe | |||||||||||||||||||||
| Connector | PCIe | |||||||||||||||||||||
|
| ||||||||||||||||||||||
|
| ||||||||||||||||||||||
| FCCID | W6RRNX-N150PCEV2, TE7WN781NDV2 | |||||||||||||||||||||
|
| ||||||||||||||||||||||
| Chip1 | Atheros AR9485 | |||||||||||||||||||||
|
OUI: none specified | ||||||||||||||||||||||
| Antenna Connection | RP-SMA | |||||||||||||||||||||
| MIMO status | 1x1:1 | |||||||||||||||||||||
| Wireless Standards | IEEE 802.11b/g/n | |||||||||||||||||||||
| 802.11n | up to 150 Mbps | |||||||||||||||||||||
| 802.11g | up to 54 Mbps | |||||||||||||||||||||
| 802.11b | up to 11 Mbps | |||||||||||||||||||||
| Operating Frequency | 2.4 GHz | |||||||||||||||||||||
| Other | ||||||||||||||||||||||
| Manuf/OEM/ODM | TP-LINK TL-WN781ND v2 | |||||||||||||||||||||
|
| ||||||||||||||||||||||
|
Probable Linux driver | ||||||||||||||||||||||
|
Windows driver | ||||||||||||||||||||||
| Retail | ||||||||||||||||||||||
| FCC approval date | 19 June 2013 | |||||||||||||||||||||
| Country of manuf | China | |||||||||||||||||||||
| ||||||||||||||||||||||
| ||||||||||||||||||||||
For a list of all currently documented Atheros (QCA) chipsets with specifications, see Atheros.
For a list of all currently documented Rosewill devices with specifications, see Rosewill.
- • 150 Mbps - 1SS 2.4GHz 802.11n (40MHz chan.) = N150 class
Overview
"2052500348" and "Rev:2.0" is silkscreened on the board in the FCC photos.
- This is the same text found on the TP-LINK TL-WN781ND v2. It is presumed to be the same device.. thus the FCC ID of the parent product (TE7WN781NDV2) has also been assigned to this entry.
