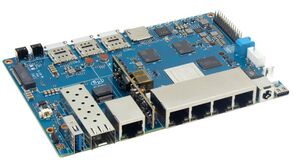

Banana Pi BPI R4 2.5GE
From TechInfoDepot
(Redirected from Sinovoip Banana Pi BPI-R4 2.5GE)
Jump to navigationJump to search
abgn+ac+ax+be (BE19000) | |||||||||||||||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Single Board Computer | |||||||||||||||||||||||||||||||||||||||||
![]() | |||||||||||||||||||||||||||||||||||||||||
Homepage | Product page | ||||||||||||||||||||||||||||||||||||||||
3rd Party Firmware | |||||||||||||||||||||||||||||||||||||||||
dd-wrt | Status Unknown | ||||||||||||||||||||||||||||||||||||||||
OpenWrt | Supported | ||||||||||||||||||||||||||||||||||||||||
Tomato any flavor | Incompatible | ||||||||||||||||||||||||||||||||||||||||
Gargoyle | Status Unknown | ||||||||||||||||||||||||||||||||||||||||
Platform | |||||||||||||||||||||||||||||||||||||||||
Brand • Model • Rev | Banana Pi BPI R4 2.5GE | ||||||||||||||||||||||||||||||||||||||||
FCC ID | none specified | ||||||||||||||||||||||||||||||||||||||||
Type | single-board computer, wireless router | ||||||||||||||||||||||||||||||||||||||||
CPU1 ![]() | MediaTek MT7988AV | ||||||||||||||||||||||||||||||||||||||||
CPU1 Type | ARM Cortex-A73 | ||||||||||||||||||||||||||||||||||||||||
CPU1 Speed | 1.8 GHz ( 4 cores ) 64-bit | ||||||||||||||||||||||||||||||||||||||||
Flash1 Chip | Macronix Model? | ||||||||||||||||||||||||||||||||||||||||
Flash1 Size | 128 MiB134,217,728 B <br />1,048,576 Kib <br />131,072 KiB <br />1,024 Mib <br />0.125 GiB <br /> (SPI NAND) | ||||||||||||||||||||||||||||||||||||||||
Flash2 Chip | Samsung Model? | ||||||||||||||||||||||||||||||||||||||||
Flash2 Size | 8 GiB 8,192 MiB <br />8,589,934,592 B <br />67,108,864 Kib <br />8,388,608 KiB <br />65,536 Mib <br /> | ||||||||||||||||||||||||||||||||||||||||
RAM1 Size | 4 GiB 4,096 MiB <br />4,294,967,296 B <br />33,554,432 Kib <br />4,194,304 KiB <br />32,768 Mib <br /> (DDR4) | ||||||||||||||||||||||||||||||||||||||||
RAM1 Chip | Samsung Model? x 2 | ||||||||||||||||||||||||||||||||||||||||
ETH chip1 | MediaTek MT7988AV | ||||||||||||||||||||||||||||||||||||||||
Switch | MediaTek MT7988AV | ||||||||||||||||||||||||||||||||||||||||
Ethernet Port Count |
1-2.5GbE-WAN 4-1GbE-LAN | ||||||||||||||||||||||||||||||||||||||||
Wired Standard | IEEE 802.3i/3u/3ab/3bz | ||||||||||||||||||||||||||||||||||||||||
802dot11 OUI: none specified | |||||||||||||||||||||||||||||||||||||||||
Expansion IF types | Mini PCIe, M.2, USB 3.2, SFP+, MicroSD Card slot, NanoSIM Card slots, M.2 Key B, M.2 Key M | ||||||||||||||||||||||||||||||||||||||||
SIM Card slot | 3 | ||||||||||||||||||||||||||||||||||||||||
Mini PCIe slots | 2 | ||||||||||||||||||||||||||||||||||||||||
USB ports | 1 | ||||||||||||||||||||||||||||||||||||||||
SD/MMC Slots | 1 | ||||||||||||||||||||||||||||||||||||||||
SFP ports | 2 | ||||||||||||||||||||||||||||||||||||||||
M.2 Slots | 2 | ||||||||||||||||||||||||||||||||||||||||
USB Hub Compatible | Untested | ||||||||||||||||||||||||||||||||||||||||
Power | 12 VDC, 5.2 A | ||||||||||||||||||||||||||||||||||||||||
Connector type | barrel | ||||||||||||||||||||||||||||||||||||||||
Serial Port (UART) | yes, 4-pin header, 3.3, (115200 8N1) | ||||||||||||||||||||||||||||||||||||||||
Flags: MicroSD Card slot, NanoSIM Card slots, SFP (10G), GPIO | |||||||||||||||||||||||||||||||||||||||||
Other | |||||||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||||||
3rd Party Firmware Support |
OpenWrt • (List | Dev | DLs) | ||||||||||||||||||||||||||||||||||||||||
Radio 1 | |||||||||||||||||||||||||||||||||||||||||
Radio1 module | MediaTek Filogic 680 | ||||||||||||||||||||||||||||||||||||||||
Radio1 module IF | Mini PCIe | ||||||||||||||||||||||||||||||||||||||||
Chip1 | MediaTek MT7996AV | ||||||||||||||||||||||||||||||||||||||||
Chip2 | MediaTek MT7975N | ||||||||||||||||||||||||||||||||||||||||
Wireless interface OUI | none specified | ||||||||||||||||||||||||||||||||||||||||
Antenna Connector Type | U.FL | ||||||||||||||||||||||||||||||||||||||||
MIMO status | 4x4:4 | ||||||||||||||||||||||||||||||||||||||||
Wireless Standard | IEEE 802.11b/g/n/ax/be | ||||||||||||||||||||||||||||||||||||||||
802.11be | up to 1376 Mbps | ||||||||||||||||||||||||||||||||||||||||
802.11ax | up to 1148 Mbps | ||||||||||||||||||||||||||||||||||||||||
802.11n | up to 600 Mbps | ||||||||||||||||||||||||||||||||||||||||
802.11g | up to 54 Mbps | ||||||||||||||||||||||||||||||||||||||||
802.11b | up to 11 Mbps | ||||||||||||||||||||||||||||||||||||||||
WiFi Operating Frequency | 2.4 GHz | ||||||||||||||||||||||||||||||||||||||||
Radio 2 | |||||||||||||||||||||||||||||||||||||||||
Radio2 module | MediaTek Filogic 680 | ||||||||||||||||||||||||||||||||||||||||
Radio2 module IF | Mini PCIe | ||||||||||||||||||||||||||||||||||||||||
Chip1 | MediaTek MT7996AV | ||||||||||||||||||||||||||||||||||||||||
Chip2 | MediaTek MT7977BN | ||||||||||||||||||||||||||||||||||||||||
Wireless interface OUI | none specified | ||||||||||||||||||||||||||||||||||||||||
Antenna Connector Type | U.FL | ||||||||||||||||||||||||||||||||||||||||
MIMO status | 4x4:4 | ||||||||||||||||||||||||||||||||||||||||
Wireless Standard | IEEE 802.11a/n/ac/ax/be | ||||||||||||||||||||||||||||||||||||||||
802.11be | up to 5765 Mbps | ||||||||||||||||||||||||||||||||||||||||
802.11ax | up to 2402 Mbps | ||||||||||||||||||||||||||||||||||||||||
802.11ac | up to 1733 Mbps | ||||||||||||||||||||||||||||||||||||||||
802.11n | up to 600 Mbps | ||||||||||||||||||||||||||||||||||||||||
802.11a | up to 54 Mbps | ||||||||||||||||||||||||||||||||||||||||
WiFi Operating Frequency | 5 GHz | ||||||||||||||||||||||||||||||||||||||||
Radio 3 | |||||||||||||||||||||||||||||||||||||||||
Radio3 module | MediaTek Filogic 680 | ||||||||||||||||||||||||||||||||||||||||
Radio3 module IF | Mini PCIe | ||||||||||||||||||||||||||||||||||||||||
Chip1 | MediaTek MT7996AV | ||||||||||||||||||||||||||||||||||||||||
Chip2 | MediaTek MT7977AN | ||||||||||||||||||||||||||||||||||||||||
Wireless interface OUI | none specified | ||||||||||||||||||||||||||||||||||||||||
Antenna Connector Type | U.FL | ||||||||||||||||||||||||||||||||||||||||
MIMO status | 4x5:4 | ||||||||||||||||||||||||||||||||||||||||
Wireless Standard | IEEE 802.11a/n/ac/ax/be | ||||||||||||||||||||||||||||||||||||||||
802.11be | up to 11530 Mbps | ||||||||||||||||||||||||||||||||||||||||
802.11ax | up to 2402 Mbps | ||||||||||||||||||||||||||||||||||||||||
802.11ac | up to 1733 Mbps | ||||||||||||||||||||||||||||||||||||||||
802.11n | up to 600 Mbps | ||||||||||||||||||||||||||||||||||||||||
802.11a | up to 54 Mbps | ||||||||||||||||||||||||||||||||||||||||
WiFi Operating Frequency | 6 GHz | ||||||||||||||||||||||||||||||||||||||||
|
For a list of all currently documented MediaTek chipsets with specifications, see MediaTek.
For a list of all currently documented Banana Pi devices with specifications, see Banana Pi.
Flashing
![]() | NOTE: During configuration or flashing a device, the only things that should be hooked to the device is the computer and power. |
Flashing OpenWrt
On the OpenWrt ToH (techdata entry)
On the OpenWrt Wiki
OpenWrt Target: mediatek
OpenWrt Subtarget: filogic
OpenWrt Package architecture: aarch64_cortex-a53
Support started version: 24.10.0
Current supported version: 24.10.2
LAN Comment:
1x SFP+ (10G, 5G, 2.5G, 1G), 1x 2.5Gbe with PoE-in
WLAN Comment:
Requires MT7995AV module (2.4GHz 2x2:2, 5GHz 3x3:3, 6GHz 3x3:3)
Comment:
WLAN requires additional module, custom double miniPCIe add-on board
On the OpenWrt Wiki
OpenWrt Target: mediatek
OpenWrt Subtarget: filogic
OpenWrt Package architecture: aarch64_cortex-a53
Support started version: 24.10.0
Current supported version: 24.10.2
LAN Comment:
1x SFP+ (10G, 5G, 2.5G, 1G), 1x 2.5Gbe with PoE-in
WLAN Comment:
Requires MT7995AV module (2.4GHz 2x2:2, 5GHz 3x3:3, 6GHz 3x3:3)
Comment:
WLAN requires additional module, custom double miniPCIe add-on board
Please insert instructions here
