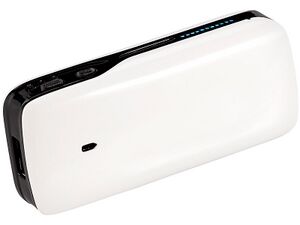

7Links PX-4885
From TechInfoDepot
Jump to navigationJump to search
bgn (N150) | |
---|---|
Mini WLAN Router w/ 5200mAh Powerbank for 3G/UMTS | |
![]() | |
Homepage | Product page |
WikiDevi.wi-cat.ru | 7Links PX-4885 |
3rd Party Firmware | |
dd-wrt | Status Unknown |
OpenWrt | Was Supported |
Tomato any flavor | Incompatible |
Gargoyle | Status Unknown |
Platform | |
Brand • Model • Rev | 7Links PX-4885 919 (4/8MB) |
FCC ID | none specified |
Type | mobile router, travel router |
CPU1 ![]() | Ralink RT5350 |
CPU1 Type | MIPS 24KEc |
CPU1 Speed | 360 MHz |
Flash1 Chip | Macronix MX25L3205D |
Flash1 Size | 8 MiB8,388,608 B <br />65,536 Kib <br />8,192 KiB <br />64 Mib <br />0.00781 GiB <br /> |
RAM1 Size | 32 MiB33,554,432 B <br />262,144 Kib <br />32,768 KiB <br />256 Mib <br />0.0313 GiB <br /> |
RAM1 Chip | ESMT M12L2561616A-6T |
ETH chip1 | Ralink RT5350 |
Ethernet Port Count | 1-100MbE-LAN |
Wired Standard | IEEE 802.3i/3u |
802dot11 OUI: none specified | |
Stock bootloader | U-Boot |
Expansion IF types | USB 2.0 |
USB ports | 1 |
USB Hub Compatible | Untested |
Power |
5 VDC, 0.5 A ?v BAT , 5200 mAh, ? cells |
Connector type | Micro USB (Female) |
Serial Port (UART) | yes |
Flags: | |
| |
Other | |
| |
3rd Party Firmware Support |
OpenWrt (Was) |
Retail | |
Availability | End of Life |
Radio 1 | |
Chip1 | Ralink RT5350 |
Wireless interface OUI | none specified |
Antenna Connector Type | none specified |
MIMO status | 1x1:1 |
Wireless Standard | IEEE 802.11b/g/n |
802.11n | up to 150 Mbps |
802.11g | up to 54 Mbps |
802.11b | up to 11 Mbps |
WiFi Operating Frequency | 2.4 GHz |
For a list of all currently documented Ralink chipsets with specifications, see Ralink.
- • 150 Mbps - 1SS 2.4GHz 802.11n (40MHz chan.) = N150 class
Overview
Available in both 4 and 8 MiB flavors
Flashing
![]() | NOTE: During configuration or flashing a device, the only things that should be hooked to the device is the computer and power. |
Flashing OpenWrt
![]() | This device is NO LONGER SUPPORTED OR POSSIBLE for future use with OpenWrt. |
On the OpenWrt ToH (techdata entry)
On the OpenWrt Wiki
OpenWrt Target: ramips
OpenWrt Subtarget: rt305x
OpenWrt Package architecture: mipsel_24kc
Support started version: 14.07
Current supported version: EOL
Last Supported Version: 22.03.7
Image too big: 23.05.0
Comment:
4M Image build disabled in master with commit d7d46da938e3
On the OpenWrt Wiki
OpenWrt Target: ramips
OpenWrt Subtarget: rt305x
OpenWrt Package architecture: mipsel_24kc
Support started version: 14.07
Current supported version: EOL
Last Supported Version: 22.03.7
Image too big: 23.05.0
Comment:
4M Image build disabled in master with commit d7d46da938e3
Please insert instructions here
