AVM FRITZ!Box WLAN 3390
From TechInfoDepot
Jump to navigationJump to searchabgn (AN900) | |
---|---|

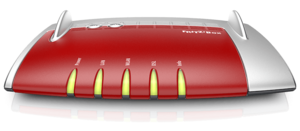

FRITZ!Box 3390 Wireless Hotspot | |
![]() | |
Homepage | |
Support | |
WikiDevi.wi-cat.ru | |
3rd Party Firmware | |
dd-wrt |
Status Unknown |
OpenWrt | |
Tomato any flavor |
Incompatible |
Gargoyle |
Status Unknown |
Platform | |
Brand • Model • Rev |
AVM FRITZ!Box WLAN 3390(HW193) |
FCC ID |
none specified |
Type |
wireless router, dsl modem |
CPU1 |
Lantiq (Intel) PSB 80920 |
CPU1 Type |
MIPS 34Kc |
CPU1 Speed |
500 MHz ( 2 cores ) |
CPU2 |
Atheros AR9342 |
Flash1 Chip |
Micron MT29F1G08ABADAWP |
Flash1 Size |
128 MiB134,217,728 B <br />1,048,576 Kib <br />131,072 KiB <br />1,024 Mib <br />0.125 GiB <br /> (NAND) |
Flash2 Chip |
Macronix MX25L2006EM1I-12G |
Flash2 Size |
256 KiB 0.25 MiB <br />262,144 B <br />2,048 Kib <br />2 Mib <br />2.441406e-4 GiB <br /> |
RAM1 Size |
128 MiB134,217,728 B <br />1,048,576 Kib <br />131,072 KiB <br />1,024 Mib <br />0.125 GiB <br /> |
RAM1 Chip |
Winbond W971GG6JB-25 |
RAM2 Size |
64 MiB67,108,864 B <br />524,288 Kib <br />65,536 KiB <br />512 Mib <br />0.0625 GiB <br /> |
ETH chip1 |
Lantiq (Intel) PSB 80920 |
ETH chip2 |
Atheros AR8035 |
ETH chip3 |
Atheros AR8035 |
Switch |
Lantiq (Intel) PSB 80920 |
Ethernet Port Count |
4-1GbE-LAN |
Wired Standard |
IEEE 802.3i/3u/3ab |
802dot11 OUI: none specified | |
Stock bootloader |
EVA |
Stock FW OS |
Linux 3.10.73 |
Expansion IF types |
USB 2.0 |
USB ports |
2 |
USB Hub Compatible |
Untested |
Power |
12 VDC, 2 A |
Connector type |
barrel |
Serial Port (UART) |
yes |
Flags: VDSL2, ADSL2+ | |
Additional chips | |
Other | |
| |
3rd Party Firmware Support | |
Retail | |
Availability | End of Life |
Radio 1 | |
Chip1 |
Atheros AR9381 |
Wireless interface OUI |
none specified |
Antenna Connector Type |
U.FL (internal) |
MIMO status |
3x3:3 |
Wireless Standard |
IEEE 802.11b/g/n |
802.11n |
up to 450 Mbps |
802.11g |
up to 54 Mbps |
802.11b |
up to 11 Mbps |
WiFi Operating Frequency |
2.4 GHz |
Radio 2 | |
Chip1 |
Atheros AR9580 |
Wireless interface OUI |
none specified |
Antenna Connector Type |
U.FL (internal) |
MIMO status |
3x3:3 |
Wireless Standard |
IEEE 802.11a/n |
802.11n |
up to 450 Mbps |
802.11a |
up to 54 Mbps |
WiFi Operating Frequency |
5 GHz |
For a list of all currently documented Atheros (QCA) chipsets with specifications, see Atheros.
For a list of all currently documented Lantiq (Intel) chipsets with specifications, see Lantiq.
For a list of all currently documented AVM device with specifications, see AVM.
Links of Interest
- AVM FRITZ!Box WLAN 3390 on OpenWrt wiki
- AVM FRITZ!Box WLAN 3390 on Andreas Böhler page
- BoxMatrix Wiki page: FRITZ!Box 3390 (EN)
- mips34_128MB_vdsl_4geth_2usb_host_wlan11n
Flashing
![]() | NOTE: During configuration or flashing a device, the only things that should be hooked to the device is the computer and power. |
Flashing OpenWrt
On the OpenWrt ToH (techdata entry)
On the OpenWrt Wiki
On the OpenWrt Forum
OpenWrt Target: lantiq
OpenWrt Subtarget: xrx200
OpenWrt Package architecture: mips_24kc
Support started version: 22.03.0
Current supported version: 23.05.5
On the OpenWrt Wiki
On the OpenWrt Forum
OpenWrt Target: lantiq
OpenWrt Subtarget: xrx200
OpenWrt Package architecture: mips_24kc
Support started version: 22.03.0
Current supported version: 23.05.5
Please insert instructions here
