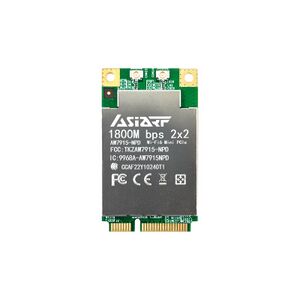

AsiaRF AW7915-NPD
From TechInfoDepot
Jump to navigationJump to searchabgn+ac+ax (AX1800) | ||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wi-Fi 6 802.11ax 2T2R 1800Mbps DBDC Mini PCIe Module | ||||||||||||||||||||||
| Homepage | ||||||||||||||||||||||
| WikiDevi.wi-cat.ru | ||||||||||||||||||||||
| Platform | ||||||||||||||||||||||
| Brand • Model • Rev |
AsiaRF AW7915-NPD V1.0 | |||||||||||||||||||||
| Interface |
Mini PCIe 2.1 | |||||||||||||||||||||
| Connector |
Mini PCIe | |||||||||||||||||||||
| Form factor |
Mini Card (full size) | |||||||||||||||||||||
| FCCID | ||||||||||||||||||||||
| Chip1 |
MediaTek MT7915DAN | |||||||||||||||||||||
| Chip2 |
MediaTek MT7975DN | |||||||||||||||||||||
| Antenna Connection |
U.FL | |||||||||||||||||||||
| MIMO status |
2x2:2 | |||||||||||||||||||||
| Wireless Standards |
IEEE 802.11a/b/g/n/ac/ax | |||||||||||||||||||||
| 802.11ax |
up to 574/1201 Mbps | |||||||||||||||||||||
| 802.11ac |
up to 867 Mbps | |||||||||||||||||||||
| 802.11n |
up to 300/300 Mbps | |||||||||||||||||||||
| 802.11g |
up to 54 Mbps | |||||||||||||||||||||
| 802.11b |
up to 11 Mbps | |||||||||||||||||||||
| 802.11a |
up to 54 Mbps | |||||||||||||||||||||
| Operating Frequency |
2.4 or 5 GHz | |||||||||||||||||||||
| Other | ||||||||||||||||||||||
| Manuf/OEM/ODM | ||||||||||||||||||||||
|
Flags: Wi-Fi 6, OFDMA, MU-MIMO, HE80, STBC, LDPC | ||||||||||||||||||||||
Windows driver | ||||||||||||||||||||||
| Retail | ||||||||||||||||||||||
| FCC approval date | 13 July 2022 | |||||||||||||||||||||
| (Est.) release date | 01 December 2021 | |||||||||||||||||||||
| (Est.) initial retail price (in USD) | $38 | |||||||||||||||||||||
| Country of manuf | Taiwan | |||||||||||||||||||||
| ||||||||||||||||||||||
| ||||||||||||||||||||||
For a list of all currently documented MediaTek chipsets with specifications, see MediaTek.
For a list of all currently documented AsiaRF device with specifications, see AsiaRF.
Overview
Features
- Embedded ARM Cortex-R4 processor for full host CPU offload
- Embedded 32-bit RISC microprocessor
- 2T2R in 2.4G and in 5G with support of up to 573+1201 Mbps PHY rate
- Supports 20, 40, 80 channels, HE MCS0-11 BW20/40/80MHz with Nss=1~2
- Support STBC, LDPC, TX Beamformer and RX Beamformee, DFS radar detection
- Short Guard Interval, Space-time block code (STBC), Low Density Partiy check (LDPC)
- Support digital pre-distortion to enhance PA performance
- Smoothing (channel estimation) extension to MIMO case
- Decoded BW20/40/80 up to 4×2 MU materix feedback
- Greenfield, mixed mode, legacy modes support
- Highly integrated RF with 40nm low power process
- Noise mitigation:
- Supports background scan function for fast channel switching
- Supports spectrum analysis for non-Wi-Fi signals
- Intelligent power saving, WFA WMM, WMM PS (QoS)
- Integrate high efficiency internal 4G/5G PAs
- Intelligent Calibration (iCal) reduces the production time
- Integrate high efficiency internal 4G/5G PAs
