AzureWave AW-NB114H

From TechInfoDepot
Jump to navigationJump to search
bgn (N150)
802.11b/g/n PCIe Wi-Fi/Bluetooth Combo Mini Card

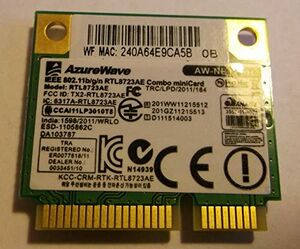

AzureWave AW-NB114H.jpg
WikiDevi.wi-cat.ru AzureWave AW-NB114H
Platform
BrandModelRev AzureWave AW-NB114H
Interface Mini PCIe
Connector Mini PCIe
Form factor (half)

ID:10ec:8723 SS: 1a3b:2114
Windows: PCI\VEN_10EC&DEV_8723&SUBSYS_21141A3B

FCCID TX2-RTL8723AE
ICID 6317A-RTL8723AE
Chip1 Realtek RTL8723AE

OUI: 6C:71:D9 (-, 3 W), 24:0A:64 (1 E, 6 W), 28:C2:DD (-, 2 W)

Antenna Connection U.FL
MIMO status 1x1:1
Wireless Standards IEEE 802.11b/g/n
802.11n up to 150 Mbps
802.11g up to 54 Mbps
802.11b up to 11 Mbps
Operating Frequency 2.4 GHz
Other
Manuf/OEM/ODM AzureWave

Flags:
Bluetooth 4.0

Probable Linux driver
rtl8723ae (3.8+)
or rtlwifi_new (WIP)
PCI ID first seen in kernel v3.8 (2013-02-18)
(see also passys)

Windows driver
possibly see Realtek's website, but the majority of legacy drivers have been removed
know a better source? LMK

Retail
FCC approval date 06 December 2011
ASIN B00PO6I4TY Flag of Germany.svg
Country of manuf China
 FCC ID
Lite-On WCBN610LHTX2-RTL8723AE
Realtek RTL8723AE Combo miniCardTX2-RTL8723AE

For a list of all currently documented Realtek chipsets with specifications, see Realtek.

For a list of all currently documented AzureWave devices with specifications, see AzureWave.

150 Mbps - 1SS 2.4GHz 802.11n (40MHz chan.) = N150 class

Overview

  • Wi-Fi/Bluetooth PCIe Mini Card Module
802.11b/g/n + Bluetooth 4.0/3.0 + HS
up to 150 Mbps and 2/3 Mbps EDR
Realtek RTL8723AE Chipset

AzureWave Wireless Adapters

Realtek RTL8723AE Combo Mini Card (802.11b/g/n)
Subsystem ID: 13d3:3394 (BT USB)
MSI CX70 2QF, BT OUI: 28:C2:DD

Links of Interest

Datasheet showing PCI ID, subsystem, and USB ID for BT portion
BT USB ID noted as 13d3:3394
