AzureWave AW-NH931
From TechInfoDepot
Jump to navigationJump to search
| bgn (N150) | |
|---|---|
|
802.11b/g/n Wireless LAN Bluetooth Combo Half Mini Card Wireless LAN, Bluetooth, and FM Rx | |
|
| |
| WikiDevi.wi-cat.ru | AzureWave AW-NH931 |
| Platform | |
| Brand • Model • Rev | AzureWave AW-NH931 |
| Interface | Mini PCIe 2.0 |
| Connector | SDIO |
| Form factor | (half) |
|
| |
|
| |
| FCCID | TLZ-NH931 |
| ICID | 6100A-NH931 |
|
| |
| Chip1 | Broadcom BCM4329 |
| Antenna Connection | U.FL |
| MIMO status | 1x1:1 |
| Wireless Standards | IEEE 802.11b/g/n |
| 802.11n | up to 150 Mbps |
| 802.11g | up to 54 Mbps |
| 802.11b | up to 11 Mbps |
| Operating Frequency | 2.4 GHz |
| Other | |
Flags: | |
|
| |
|
Probable Linux driver | |
| Retail | |
| FCC approval date | 17 February 2011 |
| Country of manuf | China |
For a list of all currently documented Broadcom chipsets with specifications, see Broadcom.
For a list of all currently documented AzureWave devices with specifications, see AzureWave.
- • 150 Mbps - 1SS 2.4GHz 802.11n (40MHz chan.) = N150 class
Overview
While this card is physically compatible with PCI-Express mini, it isn't electrically compatible.
It goes undetected by standard x86 hardware (like the Soekris net6501 or PC Engines APU)
- because WiFi chip uses an SPI (SDIO) interface, Bluetooth uses UART, and FM uses I2C.
The IC used is unlabeled, but the device's specifications indicate it's Broadcom based.
- Googlery indicates it's using BCM4329.
AzureWave sells a variety of modules which embed Broadcom and Marvell silicon, such as AW-NH611.
However, like most (if not all) of AzureWave's modules, AW-NH611 seems to use a PBGA package.
Devices likely using this module
- Toshiba Thrive tablet
- Lenovo Thinkpad Tablet (FRU # 60Y3285)

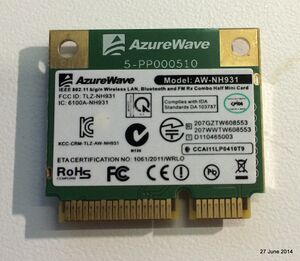

Pictures
