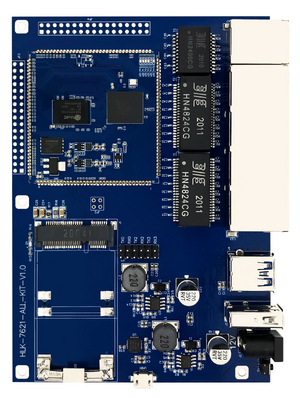

Hi-Link HLK-7621A
From TechInfoDepot
Jump to navigationJump to search
| Gigabit 1000Mbps openwrt Router module Board | |
 | |
| 3rd Party Firmware | |
|---|---|
| dd-wrt | Status Unknown |
| OpenWrt | Supported |
| Tomato any flavor | Incompatible |
| Gargoyle | Status Unknown |
| Platform | |
| Brand • Model • Rev | Hi-Link HLK-7621A |
| Type | router |
CPU1  | MediaTek MT7621AT |
| CPU1 Type | MIPS 1004Kc |
| CPU1 Speed | 880 MHz ( 2 cores ) 16-bit |
| Flash1 Chip | Brand? Model? |
| Flash1 Size | 256 MiB 268,435,456 B <br />2,097,152 Kib <br />262,144 KiB <br />2,048 Mib <br />0.25 GiB <br /> |
| RAM1 Size | 256 MiB 268,435,456 B <br />2,097,152 Kib <br />262,144 KiB <br />2,048 Mib <br />0.25 GiB <br /> |
| RAM1 Chip | Brand? Model? |
| ETH chip1 | MediaTek MT7621AT |
| Switch | MediaTek MT7621AT |
| Ethernet Port Count |
1-1GbE-WAN 4-1GbE-LAN |
| Wired Standard | IEEE 802.3i/3u/3ab |
|
| |
| Expansion IF types | Mini PCIe, USB 2.0, USB 3.0 |
| Mini PCIe slots | 3 |
| USB ports | 2 |
| USB Hub Compatible | Untested |
| Power | 12 VDC, 1.25 A |
| Serial Port (UART) | yes, 3.3V TTL, (57600 8N1) |
|
| |
|
| |
| Other | |
|
| |
| 3rd Party Firmware Support |
OpenWrt • (List | Dev | DLs) |
For a list of all currently documented MediaTek chipsets with specifications, see MediaTek.
Flashing
 | NOTE: During configuration or flashing a device, the only things that should be hooked to the device is the computer and power. |
Flashing OpenWrt
Target: ramips
Subtarget: mt7621
Package architecture: mipsel_24kc
Supported Since Commit
Support started version: 23.05.0
Current supported version: 25.12.3
Subtarget: mt7621
Package architecture: mipsel_24kc
Supported Since Commit
Support started version: 23.05.0
Current supported version: 25.12.3
LAN Hardware: MediaTek MT7621AT
Installation method(s):
GUI OEM, U-Boot TFTP + serial recovery
Recovery method(s):
U-Boot TFTP + serial recovery
Comment:
stock u-boot needs replacement to activate Dual Core support (RALINK_DUAL_CORE_FUN)
Installation method(s):
GUI OEM, U-Boot TFTP + serial recovery
Recovery method(s):
U-Boot TFTP + serial recovery
Comment:
stock u-boot needs replacement to activate Dual Core support (RALINK_DUAL_CORE_FUN)
| git • >> |
|---|
ramips: add support for HiLink HLK-7621A evaluation board Specifications: - SoC: MediaTek MT7621AT - RAM: 256 MB (DDR3) - Flash: 32 MB SPI NOR 44MHz - Switch: 1 WAN, 4 LAN (Gigabit) - LEDs: 1 WAN, 4 LAN (controlled by PHY) - USB Ports: 1 x USB2, 1 x USB3 - WLAN: 1 x 2.4, 5 GHz 866Mbps (MT7612E) - Button: 1 button (reset) - UART Serial: UART1 as console : 57600 baud - Power: 12VDC, 1A Installation: Update openWRT firmware using internal GNUBEE uboot: https://github.com/gnubee-git/GnuBee-MT7621-uboot By HTTP: Initial uboot address is http://10.10.10.123, your address needs to be 10.10.10.x, and mask 255.255.255.0. By TFTP: Uboot is in client mode, the address of the firmware must be tftp://10.10.10.3/uboot.bin Recovery: Manufacturer provides MTK OpenWrt 14.07 source code, compile then flash it by uboot. HLK-7621A is a stamp hole package module for embedded development, users have to design IO boards to use it. MAC addresses: - u-boot-env contains a placeholder address: > mtd_get_mac_ascii u-boot-env ethaddr 03:17:73:ab:cd:ef - phy0 gets a valid-looking address: > cat /sys/class/ieee80211/phy0/macaddress f8:62:aa:**:**:a8 - Calibration data for &pcie2 contains a valid address, however the zeros in the right half look like it's not real: 8c:88:2b:00:00:1b - Since it's an evaluation board and there is no solid information about the MAC address assignment, the ethernet MAC address is left random. Signed-off-by: Chen Yijun [add keys and pcie nodes to properly support evaluation board] Signed-off-by: Sergio Paracuellos [remove ethernet address, wrap lines properly] Signed-off-by: Adrian Schmutzler |
