Linksys EA8250

From TechInfoDepot
Jump to navigationJump to search
abgn+ac (AC21003R)
Max-Stream AC2100 Tri-Band Wi-Fi Router ??

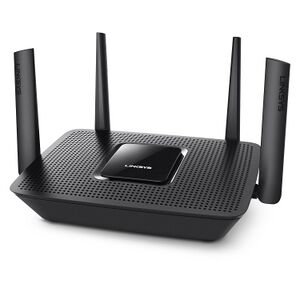

Linksys EA8250.jpeg
Wikipedia Linksys routers
3rd Party Firmware
dd-wrt Status Unknown
OpenWrt Status Unknown
Tomato any flavor Incompatible
Platform
BrandModelRev Linksys EA8250
FCC ID Q87-EA8300
IC ID 3839A-EA8300
Type wireless router, bridge
CPU1 checkY Qualcomm IPQ4019
CPU1 Type ARMv7 Cortex-A7
CPU1 Speed 716 MHz ( 4 cores )
Flash1 Chip Macronix MX30LF2G18AC-TI
Flash1 Size 256 MiB268,435,456 B <br />2,097,152 Kib <br />262,144 KiB <br />2,048 Mib <br />0.25 GiB <br />
RAM1 Size 256 MiB268,435,456 B <br />2,097,152 Kib <br />262,144 KiB <br />2,048 Mib <br />0.25 GiB <br />
RAM1 Chip Nanya NT5CC128M16IP-DI
ETH chip1 Qualcomm IPQ4019
Switch Qualcomm Atheros QCA8075
Ethernet Port Count 1-WAN
4-1GbE-LAN
Wired Standard IEEE 802.3i/3u/3ab

802dot11 OUI: 14:91:82 (4 E, 4 W)

Expansion IF types USB 3.0
USB ports 1
USB Hub Compatible Untested
Power 12 VDC, 2 A
Connector type barrel

Flags:
Wave2, MU-MIMO, DFS, Bluetooth 4.1

Additional chips
Bluetooth 4.1 SoC;Cambridge Silicon Radio (CSR);CSR8811;CSR, 8811, A12U, K6338MT10;1;
5GHz Power Amplifier IC;Skyworks;SKY85408-11;85408-11, 53999, 1632 MX;4;

Other

Default SSID: LinksysXXXXX (17 addl. devices)

Retail
FCC approval date 01 March 2017
Country of manuf China
Radio 1
Chip1 Qualcomm IPQ4019
Wireless interface OUI 14:91:82
Antenna Connector Type none specified
MIMO status 2x2:2
Wireless Standard IEEE 802.11b/g/n
802.11n up to 300 Mbps
802.11g up to 54 Mbps
802.11b up to 11 Mbps
WiFi Operating Frequency 2.4 GHz
Radio 2
Chip1 Qualcomm IPQ4019
Wireless interface OUI 14:91:82
Antenna Connector Type none specified
MIMO status 2x2:2
Wireless Standard IEEE 802.11a/n/ac
802.11ac up to 867 Mbps
802.11n up to 300 Mbps
802.11a up to 54 Mbps
WiFi Operating Frequency 5 GHz
Radio 3
Chip1 Qualcomm Atheros QCA9886
Wireless interface OUI 14:91:82
Antenna Connector Type none specified
MIMO status 2x2:2
Wireless Standard IEEE 802.11a/n/ac
802.11ac up to 867 Mbps
802.11n up to 300 Mbps
802.11a up to 54 Mbps
WiFi Operating Frequency 5 GHz
 FCC ID
Linksys EA8300Q87-EA8300
Linksys MR8300Q87-EA8300

For a list of all currently documented Qualcomm chipsets with specifications, see Qualcomm.
For a list of all currently documented Qualcomm Atheros (QCA) chipsets with specifications, see Qualcomm Atheros.

For a list of all currently documented Linksys devices with specifications, see Linksys.

• 2x 867 Mbps - 2SS 5GHz 802.11ac (80MHz chan.),
• 1x 300 Mbps - 2SS 2.4GHz 802.11n (40MHz chan.) = AC2100 class

Overview

This product is not yet released but it is mentioned in the FCC documents for the Linksys EA8300. Most information is copied from that entry. According to the RF Test Report BT BR+EDR, "All models are identical except for the EA8300 supports 256QAM and the EA8250 disable 256QAM."

"EWW516-A1-BL REV:025(XC) 308.02448.025" is silkscreened on the board in the FCC photos.

Web GUI: http://LinksysSmartWiFi.com
