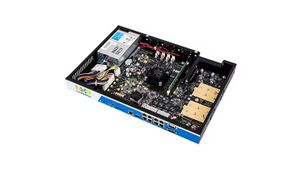

Layerscape LS1088A Reference Design Board | |
![]() | |
Homepage | Product page |
---|---|
3rd Party Firmware | |
dd-wrt | Status Unknown |
OpenWrt | Supported |
Tomato any flavor | Incompatible |
Gargoyle | Status Unknown |
Platform | |
Brand • Model • Rev | NXP LS1088A-RDB |
Type | single-board computer |
CPU1 ![]() | NXP LS1088A |
CPU1 Type | ARMv8 Cortex-A53 |
CPU1 Speed | 1.8 GHz ( 8 cores ) 64-bit |
Flash1 Chip | Brand? Model? |
Flash1 Size | 2 GiB 2,048 MiB <br />2,147,483,648 B <br />16,777,216 Kib <br />2,097,152 KiB <br />16,384 Mib <br /> (NAND) |
Flash2 Size | 128 MiB134,217,728 B <br />1,048,576 Kib <br />131,072 KiB <br />1,024 Mib <br />0.125 GiB <br /> (SPI NOR) |
RAM1 Size | 4 GiB 4,096 MiB <br />4,294,967,296 B <br />33,554,432 Kib <br />4,194,304 KiB <br />32,768 Mib <br /> |
RAM1 Chip | Brand? Model? |
ETH chip1 | NXP LS1088A |
Ethernet Port Count | 8-1GbE-LAN |
Wired Standard | IEEE 802.3i/3u/3ab |
| |
Stock bootloader | U-Boot |
Expansion IF types | eMMC, SD, Mini PCIe, PCIe, USB 3.0, SFP+ |
Mini PCIe slots | 3 |
USB ports | 2 |
SD/MMC Slots | 1 |
SFP ports | 1 |
USB Hub Compatible | Untested |
Power | 90 - 264 VAC ~ ? Hz, ? A |
Connector type | AC (direct) |
Serial Port (UART) | yes, (115200 8N1) |
JTAG Port | yes |
| |
| |
Other | |
| |
3rd Party Firmware Support |
OpenWrt • (List | Dev | DLs) |
For a list of all currently documented NXP (Freescale) SoC's with specifications, see NXP.
For a list of all currently documented NXP devices with specifications, see NXP.
Overview
The LS1088A reference design board provides a comprehensive platform that enables design and evaluation of the product (LS1088A processor). This RDB comes pre-loaded with a board support package (BSP) based on a standard Linux kernel.
Flashing
![]() | NOTE: During configuration or flashing a device, the only things that should be hooked to the device is the computer and power. |
Flashing OpenWrt
On the OpenWrt ToH (techdata entry)
On the OpenWrt Wiki
OpenWrt Target: layerscape
OpenWrt Subtarget: armv8_64b
OpenWrt Package architecture: aarch64_cortex-a53
Support started version: 17.01.0
Current supported version: 24.10.2
LAN Comment:
1x 10G copper network port and 1x 10G optical network port
WLAN Comment:
WLAN dependent on mPCIe installed
Comment:
Also 64b firmware available
On the OpenWrt Wiki
OpenWrt Target: layerscape
OpenWrt Subtarget: armv8_64b
OpenWrt Package architecture: aarch64_cortex-a53
Support started version: 17.01.0
Current supported version: 24.10.2
LAN Comment:
1x 10G copper network port and 1x 10G optical network port
WLAN Comment:
WLAN dependent on mPCIe installed
Comment:
Also 64b firmware available
Please insert instructions here
