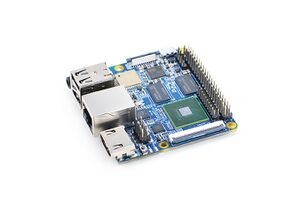

NanoPi M2A

From TechInfoDepot
Jump to navigationJump to search
multiple revisions of this device, use caution
bgn (N150)
Single-board Computer
WikiDevi.wi-cat.ru NanoPi M2A
3rd Party Firmware
dd-wrt Status Unknown
OpenWrt Status Unknown
Tomato any flavor Incompatible
Platform
BrandModelRev FriendlyARM NanoPi M2A
FCC ID none specified
Type single-board computer
CPU1 checkY Samsung S5P4418
CPU1 Type ARM Cortex-A9
CPU1 Speed 1.4 GHz ( 4 cores )
Flash1 Chip Brand? Model?
Flash1 Size 0 MiB0 B <br />0 Kib <br />0 KiB <br />0 Mib <br />0 GiB <br />
RAM1 Size 1 GiB 1,024 MiB <br />1,073,741,824 B <br />8,388,608 Kib <br />1,048,576 KiB <br />8,192 Mib <br /> (DDR3 SDRAM)
RAM1 Chip Samsung K4B4G16460-BCK0 x 2
ETH chip1 Samsung S5P4418
ETH chip2 Realtek RTL8211E
Ethernet Port Count 1-1GbE-LAN
Wired Standard IEEE 802.3i/3u/3ab

802dot11 OUI: CC:B8:A8 (-, 1 W)

Stock bootloader U-Boot
Stock FW OS Linux 4.4.172 FriendlyELEC
Expansion IF types USB 2.0, MicroSD Card slot
USB ports 2
SD/MMC Slots 1
USB Hub Compatible Untested
Power 5 VDC, 3 A
Connector type USB Female (Micro-B)
Serial Port (UART) yes, 3.3V TTL, 4-pin header, populated, (115200 8N1),
JTAG Port none,

Flags:
MicroSD Card slot, HDMI 1.4a, LVDS, DVP Camera Interface, 3.5mm audio output, microphone, Bluetooth 4.0, I2S, I2C, SPI, GPIO

Additional chips
4-port USB Hub Controller;Genesys Logic;GL852G;;1;
Low Power Audio CODEC;Everest Semiconductor;ES8316;;1;
Single-Cell Li-Battery and Power System Management IC;X-Powers;AXP228;;1;
300mA CMOS LDO Regulator;Richtek;RT9193;;1;
2.5A Adaptive COT Step Down Converter;ETA Solutions;ETA3451;;1;
Single 2-Input Positive OR Gate;Diodes Inc;74AHC1G32;;1;

Other

Default IP address: acquired via DHCP
the IP acquired via DHCP is used by 228 additional devices
of which 14 are FriendlyARM devices
Default login user: pi
Default login password: pi
pi:pi credentials used by 8 additional devices
of which 8 are FriendlyARM devices

Retail
(Est.) release date May 2017
(Est.) initial retail price (in USD): $30
Country of manuf China
Radio 1
Radio1 module AMPAK AP6212
Radio1 module IF SD (solder down)
Chip1 Broadcom BCM43430
Wireless interface OUI CC:B8:A8,
Antenna Connector Type U.FL
MIMO status 1x1:1
Wireless Standard IEEE 802.11b/g/n
802.11n up to 150 Mbps
802.11g up to 54 Mbps
802.11b up to 11 Mbps
WiFi Operating Frequency 2.4 GHz
 CPU1 brandRadio1 chip1 brandRadio1 chip2 brand
NanoPi M2ASamsungBroadcom
NanoPi M4 (2GB)RockchipBroadcom

For a list of all currently documented Broadcom chipsets with specifications, see Broadcom.
For a list of all currently documented Realtek chipsets with specifications, see Realtek.
For a list of all currently documented Samsung chipsets with specifications, see Samsung.

For a list of all currently documented FriendlyARM devices with specifications, see FriendlyARM.

150 Mbps - 1SS 2.4GHz 802.11n (40MHz chan.) = N150 class

Overview

Hardware specification

  • CPU: Nexell S5P4418 (Quad-core ARM Cortex-A9) @1.4GHz • Datasheet
  • Memory: 1GB (DDR3) SDRAM
  • Onboard Storage: TF card (64GB)/MMC card slot
  • Wi-Fi: AMPAK (Broadcom BCM43430) • Datasheet
  • Ports: 1x GbE LAN, 2x USB 2.0
