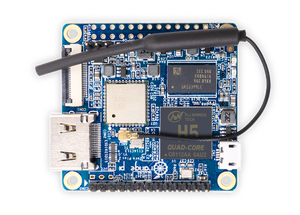

Orange Pi Zero Plus 2
From TechInfoDepot
Jump to navigationJump to searchbgn (N150) | |||||||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Open-source Single-board Computer | |||||||||||||||||||||||||||||||||
Homepage |
Product page (H3/H5) | ||||||||||||||||||||||||||||||||
3rd Party Firmware | |||||||||||||||||||||||||||||||||
dd-wrt |
Status Unknown | ||||||||||||||||||||||||||||||||
OpenWrt |
Status Unknown | ||||||||||||||||||||||||||||||||
Tomato any flavor |
Incompatible | ||||||||||||||||||||||||||||||||
Platform | |||||||||||||||||||||||||||||||||
Brand • Model • Rev |
Orange Pi OPI Zero Plus 2 | ||||||||||||||||||||||||||||||||
FCC ID |
none specified | ||||||||||||||||||||||||||||||||
Type |
single-board computer | ||||||||||||||||||||||||||||||||
CPU1 |
Allwinner H3 | ||||||||||||||||||||||||||||||||
CPU1 Type |
ARMv7-A Cortex-A7 | ||||||||||||||||||||||||||||||||
CPU1 Speed |
1.3 GHz ( 4 cores ) | ||||||||||||||||||||||||||||||||
Flash1 Chip |
Samsung Model? | ||||||||||||||||||||||||||||||||
Flash1 Size |
8 GiB 8,192 MiB <br />8,589,934,592 B <br />67,108,864 Kib <br />8,388,608 KiB <br />65,536 Mib <br /> (eMMC) | ||||||||||||||||||||||||||||||||
RAM1 Size |
512 MiB536,870,912 B <br />4,194,304 Kib <br />524,288 KiB <br />4,096 Mib <br />0.5 GiB <br /> | ||||||||||||||||||||||||||||||||
RAM1 Chip |
Samsung K4B2G1646F-BYNA x 2 | ||||||||||||||||||||||||||||||||
ETH chip1 |
Allwinner H3 | ||||||||||||||||||||||||||||||||
802dot11 OUI: none specified | |||||||||||||||||||||||||||||||||
Stock bootloader |
U-Boot | ||||||||||||||||||||||||||||||||
Expansion IF types |
USB 2.0, MicroSD Card slot | ||||||||||||||||||||||||||||||||
USB ports |
1 | ||||||||||||||||||||||||||||||||
SD/MMC Slots |
1 | ||||||||||||||||||||||||||||||||
USB Hub Compatible |
Untested | ||||||||||||||||||||||||||||||||
Power |
5 VDC, 2 A | ||||||||||||||||||||||||||||||||
Connector type |
micro USB | ||||||||||||||||||||||||||||||||
Serial Port (UART) |
yes, 3-pin, (115200 8N1) | ||||||||||||||||||||||||||||||||
Flags: Bluetooth, HDMI out, CSI in, GPIO | |||||||||||||||||||||||||||||||||
Other | |||||||||||||||||||||||||||||||||
Default login user: root | |||||||||||||||||||||||||||||||||
Manuf/OEM/ODM | |||||||||||||||||||||||||||||||||
Retail | |||||||||||||||||||||||||||||||||
(Est.) release date | March 2017 | ||||||||||||||||||||||||||||||||
(Est.) initial retail price (in USD): | $23 | ||||||||||||||||||||||||||||||||
Country of manuf | China | ||||||||||||||||||||||||||||||||
Radio 1 | |||||||||||||||||||||||||||||||||
Radio1 module | |||||||||||||||||||||||||||||||||
Radio1 module IF |
SDIO | ||||||||||||||||||||||||||||||||
Chip1 |
Broadcom BCM43430 | ||||||||||||||||||||||||||||||||
Wireless interface OUI |
none specified | ||||||||||||||||||||||||||||||||
Antenna Connector Type |
U.FL | ||||||||||||||||||||||||||||||||
MIMO status |
1x1:1 | ||||||||||||||||||||||||||||||||
Wireless Standard |
IEEE 802.11b/g/n | ||||||||||||||||||||||||||||||||
802.11n |
up to 150 Mbps | ||||||||||||||||||||||||||||||||
802.11g |
up to 54 Mbps | ||||||||||||||||||||||||||||||||
802.11b |
up to 11 Mbps | ||||||||||||||||||||||||||||||||
WiFi Operating Frequency |
2.4 GHz | ||||||||||||||||||||||||||||||||
|
For a list of all currently documented Allwinner SoC's with specifications, see Allwinner.
For a list of all currently documented Broadcom chipsets with specifications, see Broadcom.
For a list of all currently documented Orange Pi device with specifications, see Orange Pi.
- • 150 Mbps - 1SS 2.4GHz 802.11n (40MHz chan.) = N150 class
Overview
See also: List of Single-board computers
Hardware specification
- CPU: Allwinner H3 @1.3GHz (Quad-core ARM Cortex-A7)
- High Efficiency Video Coding (HEVC) 4K / H.265
- GPU: Mali-400MP2 @600MHz (OpenGL ES 2.0)
- Memory: 512MB (SDRAM) DDR3 (shared with GPU)
- Onboard Storage: TF card (max. 32GB) / MMC card slot
- 8GB eMMC Flash
