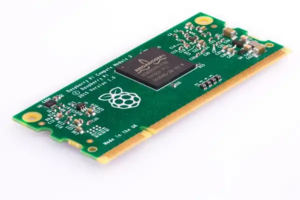

Raspberry Pi Compute Module 3
From TechInfoDepot
Jump to navigationJump to search
Single Board Computer | |
![]() | |
Homepage | Product page |
---|---|
3rd Party Firmware | |
dd-wrt | Status Unknown |
OpenWrt | Supported |
Tomato any flavor | Status Unknown |
Gargoyle | Status Unknown |
Platform | |
Brand • Model • Rev | RPF Raspberry Pi Compute Module 3 |
Type | SoM |
CPU1 ![]() | Broadcom BCM2837 |
CPU1 Type | ARMv8 Cortex-A53 |
CPU1 Speed | 1.2 GHz ( 4 cores ) |
Flash1 Chip | Brand? Model? |
Flash1 Size | 0 MiB0 B <br />0 Kib <br />0 KiB <br />0 Mib <br />0 GiB <br /> (microSDHC) |
RAM1 Size | 1 GiB 1,024 MiB <br />1,073,741,824 B <br />8,388,608 Kib <br />1,048,576 KiB <br />8,192 Mib <br /> |
RAM1 Chip | Brand? Model? |
| |
Stock bootloader | U-Boot |
Expansion IF types | USB 2.0 |
USB ports | 1 |
USB Hub Compatible | Untested |
Power | 5.1 VDC, 2.5 A |
Serial Port (UART) | yes, 3.3V TTL, (115200 8N1) |
Other | |
| |
3rd Party Firmware Support |
OpenWrt • (List | Dev | DLs) |
For a list of all currently documented Broadcom chipsets with specifications, see Broadcom.
For a list of all currently documented RPF devices with specifications, see RPF.
Flashing
![]() | NOTE: During configuration or flashing a device, the only things that should be hooked to the device is the computer and power. |
Flashing OpenWrt
On the OpenWrt ToH (techdata entry)
On the OpenWrt Wiki
OpenWrt Target: bcm27xx
OpenWrt Subtarget: bcm2710
OpenWrt Package architecture: aarch64_cortex-a53
Support started version: 19.07.0
Current supported version: 24.10.0
LAN Comment:
The bandwidth of ethernet port is shared with USB (4 USB ports and ethernet are shared on 1 usb controller)
WLAN Comment:
No WLAN
Comment:
The bootloader is an image on MicroSD Card (the data partition can be resized to provide more storage), you may need to boot up Raspbian (released in or after April 2018) and set up WiFi country-code first before install OpenWrt
On the OpenWrt Wiki
OpenWrt Target: bcm27xx
OpenWrt Subtarget: bcm2710
OpenWrt Package architecture: aarch64_cortex-a53
Support started version: 19.07.0
Current supported version: 24.10.0
LAN Comment:
The bandwidth of ethernet port is shared with USB (4 USB ports and ethernet are shared on 1 usb controller)
WLAN Comment:
No WLAN
Comment:
The bootloader is an image on MicroSD Card (the data partition can be resized to provide more storage), you may need to boot up Raspbian (released in or after April 2018) and set up WiFi country-code first before install OpenWrt
Please insert instructions here
