SolidRun HummingBoard Pro i2ex

multiple revisions of this device, use caution

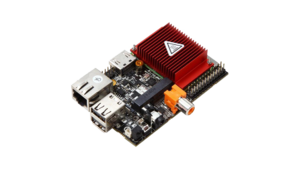

HummingBoard Pro i2ex
Homepage	Product page
3rd Party Firmware
dd-wrt	Status Unknown
OpenWrt	Supported
Tomato any flavor	Incompatible
Gargoyle	Status Unknown
Platform
Brand • Model • Rev	SolidRun HummingBoard Pro i2ex
Type	single-board computer
CPU1	Freescale (NXP) i.MX6D
CPU1 Type	ARM Cortex-A9
CPU1 Speed	1.0 GHz ( 2 cores )
Flash1 Chip	Brand? Model?
Flash1 Size	0 MiB0 B <br />0 Kib <br />0 KiB <br />0 Mib <br />0 GiB <br />
RAM1 Size	1 GiB 1,024 MiB <br />1,073,741,824 B <br />8,388,608 Kib <br />1,048,576 KiB <br />8,192 Mib <br />
RAM1 Chip	Samsung K4B2G1646E-BCK0 x 4
ETH chip1	Freescale (NXP) i.MX6D
ETH chip2	Atheros AR8035-A
Ethernet Port Count	1-1GbE-LAN
Wired Standard	IEEE 802.3i/3u/3ab
Ethernet OUI: D0:63:B4 (2 E, -)
Stock bootloader	U-Boot
Stock FW OS	Linux
Expansion IF types	USB 2.0, Mini PCIe, mSATA, Micro SD Card slot
Mini PCIe slots	1
USB ports	2
SD/MMC Slots	1
SATA Ports	1
USB Hub Compatible	Untested
Power	5 VDC, 2 A
Connector type	USB Female Micro-B
Flags: Micro SD Card slot, HDMI, MIPI CSI, LVDS, GPIO, RTC w/ battery backup, IR receiver, Audio In/Out (3.5mm), SPDIF
Additional chips Low Power Stereo Codec;Freescale Semiconductor;SGTL5000;;1; Low Power USB 2 Hub Controller;Cypress;CY7C65632;;1; 4A, 2MHz Step-Down Converter;Richtek;RT8070;;1; I2C RTC;NXP;PCF8523;;1; .5A Dual Channel Current-Limited Power Switch;Diodes Inc;AP2156;;1; ESD Protection Diode for High Speed Data Line;ON Semi;ESD7004;;3; 250mA CMOS Low Dropout Voltage Regulator;Taiwan Semiconductor;TS9011;;2; Dual Non-inverting Buffer;ON Semi;NLX2G16;;1;
Other
3rd Party Firmware Support	Armbian, OpenWrt • (List | Dev | DLs)
Retail
Country of manuf	Israel
CPU1 brand FLA1 RAM1 SolidRun HummingBoard Pro i2ex Freescale (NXP) 0 MiB0 B <br />0 Kib <br />0 KiB <br />0 Mib <br />0 GiB <br /> 1,024 MiB1,073,741,824 B <br />8,388,608 Kib <br />1,048,576 KiB <br />8,192 Mib <br />1 GiB <br /> SolidRun HummingBoard Pro i4P Freescale (NXP) 0 MiB0 B <br />0 Kib <br />0 KiB <br />0 Mib <br />0 GiB <br /> 2,048 MiB2,147,483,648 B <br />16,777,216 Kib <br />2,097,152 KiB <br />16,384 Mib <br />2 GiB <br />

For a list of all currently documented Atheros (QCA) chipsets with specifications, see Atheros.
For a list of all currently documented Freescale (NXP) SoC's with specifications, see Freescale.

For a list of all currently documented SolidRun device with specifications, see SolidRun.

Flashing

Flashing OpenWrt

On the OpenWrt ToH (techdata entry)
OpenWrt Target: imx
OpenWrt Subtarget: cortexa9
OpenWrt Package architecture: arm_cortex-a9_neon
Support started version: 19.07.0
Current supported version: 23.05.5

Please insert instructions here
