Texas Instruments CC3100MODR1

From TechInfoDepot
Jump to navigationJump to search
multiple revisions of this device, use caution
bgn (N150)
CC3100MOD Booster Pack
3rd Party Firmware
dd-wrt Status Unknown
OpenWrt Status Unknown
Tomato any flavor Incompatible
Platform
BrandModelRev Texas Instruments CC3100MODR1
FCC ID Z64-CC3100MODR1
IC ID 451I-CC3100MODR1
Type Wi-Fi enabled MCU dev. kit
CPU1 ☒N Texas Instruments CC3100
Flash1 Chip Brand? Model?
Flash1 Size ? MiB
RAM1 Size ? MiB
RAM1 Chip Texas Instruments CC3100

802dot11 OUI: none specified

Expansion IF types GPIO
Power 5 VDC, ? A
Connector type USB Female Micro-B
Flags:
parts list, schematics, block diagram
Other
Manuf/OEM/ODM Foxconn T77H533.00
Retail
FCC approval date 09 October 2014
Radio 1
Chip1 Texas Instruments CC3100
Wireless interface OUI none specified
Antenna Connector Type U.FL
MIMO status 1x1:1
Wireless Standard IEEE 802.11b/g/n
802.11n up to 150 Mbps
802.11g up to 54 Mbps
802.11b up to 11 Mbps
WiFi Operating Frequency 2.4 GHz
 CPU1 brandRadio1 chip1 brandRadio1 chip2 brand
Texas Instruments CC3100BOOSTTexas InstrumentsTexas Instruments
Texas Instruments CC3100MODR1Texas InstrumentsTexas Instruments

For a list of all currently documented Texas Instruments (TI) chipsets with specifications, see Texas Instruments.

For a list of all currently documented Texas Instruments devices with specifications, see Texas Instruments.

150 Mbps - 1SS 2.4GHz 802.11n (40MHz chan.) = N150 class

Overview

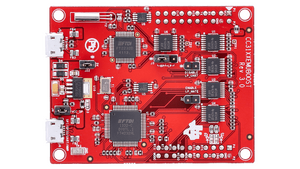

"CC3100MOD BP" is silkscreened on the evaluation board in the FCC photos.
