ASUS AAM6020VI-F1
From TechInfoDepot
Jump to navigationJump to search
bg (G54) | |||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Wi-Fi Router + 4-Port Ethernet Switch | |||||||||||||||||
![]() | |||||||||||||||||
Homepage | Product page (RU) | ||||||||||||||||
Wikipedia | Asus routers | ||||||||||||||||
WikiDevi.wi-cat.ru | ASUS AAM6020VI-FI | ||||||||||||||||
3rd Party Firmware | |||||||||||||||||
dd-wrt | Incompatible | ||||||||||||||||
OpenWrt | Incompatible | ||||||||||||||||
Tomato any flavor | Incompatible | ||||||||||||||||
Platform | |||||||||||||||||
Brand • Model • Rev | ASUS AAM6020 VI-F1 | ||||||||||||||||
FCC ID | MSQAAM6KVIF1 | ||||||||||||||||
IC ID | ASUDL07AAAM6KVIFI | ||||||||||||||||
Type | wireless router, dsl modem | ||||||||||||||||
CPU1 ![]() | Infineon (Lantiq) PSB 50505 | ||||||||||||||||
CPU1 Type | MIPS 4KEc | ||||||||||||||||
CPU1 Speed | 235 MHz | ||||||||||||||||
Flash1 Chip | Macronix MX29LV160BBTC-90 | ||||||||||||||||
Flash1 Size | 2 MiB2,097,152 B <br />16,384 Kib <br />2,048 KiB <br />16 Mib <br />0.00195 GiB <br /> | ||||||||||||||||
RAM1 Size | 16 MiB16,777,216 B <br />131,072 Kib <br />16,384 KiB <br />128 Mib <br />0.0156 GiB <br /> | ||||||||||||||||
RAM1 Chip | Samsung K4S281632F-TC75 | ||||||||||||||||
ETH chip1 | Infineon (Lantiq) PSB 50505 | ||||||||||||||||
Switch | Infineon ADM6996 | ||||||||||||||||
Ethernet Port Count | 4-100MbE-LAN | ||||||||||||||||
Wired Standard | IEEE 802.3i/3u | ||||||||||||||||
802dot11 OUI: none specified | |||||||||||||||||
Expansion IF types | none | ||||||||||||||||
Power | 15 VAC ~ 50/60 Hz, 1 A | ||||||||||||||||
Connector type | barrel | ||||||||||||||||
Flags: | |||||||||||||||||
| |||||||||||||||||
Other | |||||||||||||||||
Default IP address: 192.168.1.1 | |||||||||||||||||
Manuf/OEM/ODM | ASUS | ||||||||||||||||
Retail | |||||||||||||||||
FCC approval date | 07 November 2005 | ||||||||||||||||
Country of manuf | China | ||||||||||||||||
Radio 1 | |||||||||||||||||
Chip1 | Infineon ADM8262 | ||||||||||||||||
Chip2 | Airoha AL2230 | ||||||||||||||||
Wireless interface OUI | none specified | ||||||||||||||||
Antenna Connector Type | U.FL | ||||||||||||||||
Wireless Standard | IEEE 802.11b/g | ||||||||||||||||
802.11g | up to 54 Mbps | ||||||||||||||||
802.11b | up to 11 Mbps | ||||||||||||||||
WiFi Operating Frequency | 2.4 GHz | ||||||||||||||||
|
For a list of all currently documented Airoha (EcoNet) chipsets with specifications, see Airoha.
For a list of all currently documented Infineon (Lantiq) chipsets with specifications, see Infineon.
For a list of all currently documented Infineon (Lantiq) chipsets with specifications, see Infineon.
For a list of all currently documented ASUS devices with specifications, see ASUS.
- • 54 Mbps - 2.4GHz 802.11g = G54 class
Overview

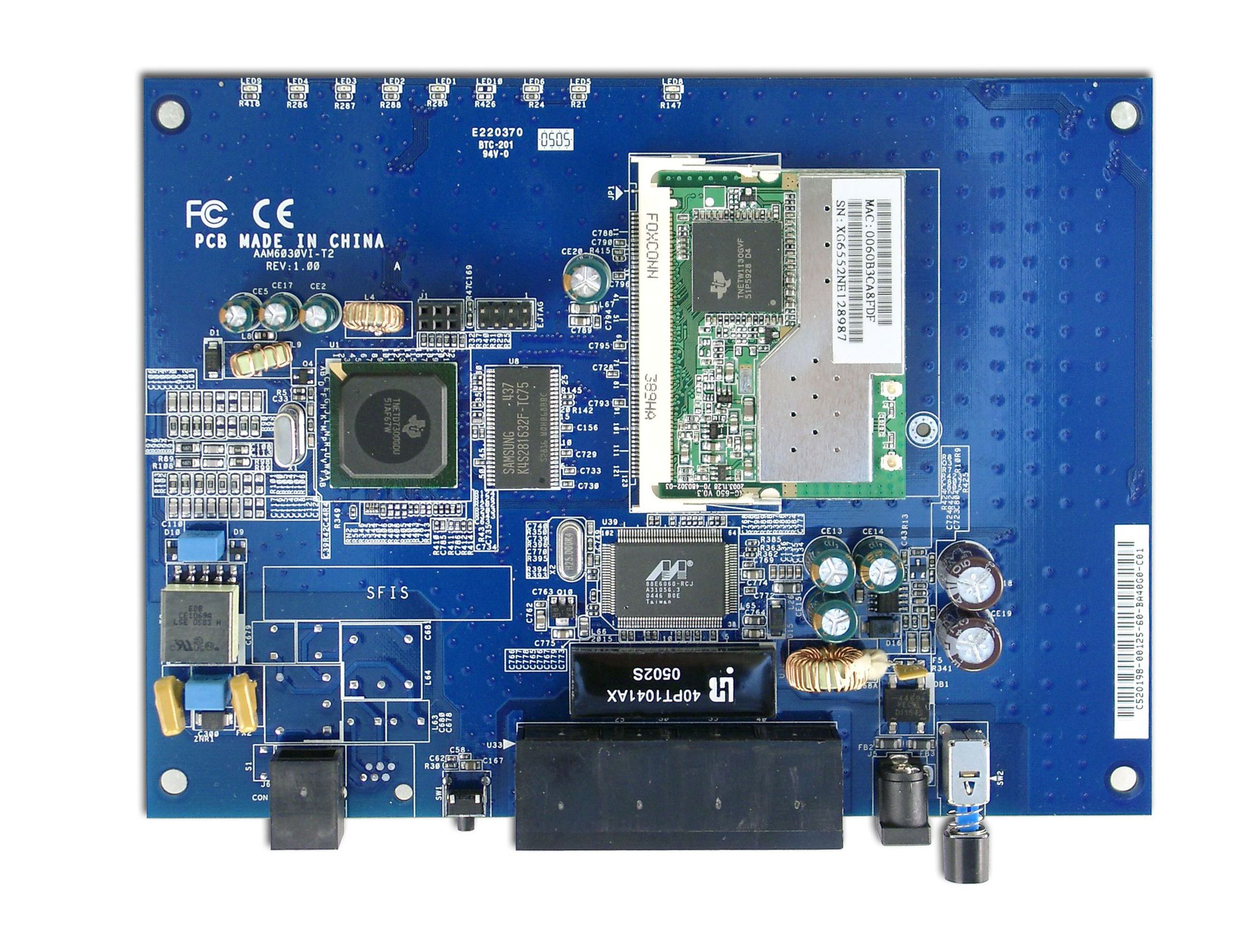

"PCB MADE IN CHINA" is silkscreened on the board in the FCC photos.
- Default settings are per the FCC manual.
See also
- CPU: Texas Instruments TNETD7300GDU
- RAM: Samsung K4S281632F (16MB SDRAM)
- WLAN: TI TNETW1130GVF (Z-Com XG-650)
- Switch: Marvell 88E6060 (PCB image) [00:60:B3]
- ASUS AM604g (AAM6020VI-B6) • Series
- ASUS AM200g (AAM6070TP-B2) • (ADSL/VoIP)
- ASUS AAM6020VI-DL1 • D-Link DSL-2640U rev B2
- CPU: Broadcom BCM6348, WLAN: /BCM4318, SW: BCM5325E
- Infineon PSB 50505/ADM8262/ADM6996
- TI TNETD7300GDU (AR7RD) - FW Acorp LAN420M (adam2)
- ASUS AAM6010EV (Z2) - TrendChip TC3085, (T4) - TI, (M) - BCM
- ASUS AAM6000EV (G6) - Conexant Viking GS8120 (D-Link 500G)
- ASUS AAM6000UG
