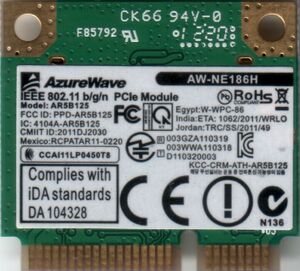

AzureWave AW-NE186H
From TechInfoDepot
Jump to navigationJump to search
| bgn (N150) | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
'AR9485 Mini PCIe (half-size) reference design aka HB125' | |||||||||||||||
|
| |||||||||||||||
| WikiDevi.wi-cat.ru | AzureWave AW-NE186H | ||||||||||||||
| Platform | |||||||||||||||
| Brand • Model • Rev | AzureWave AW-NE186H | ||||||||||||||
| Interface | Mini PCIe | ||||||||||||||
| Connector | Mini PCIe | ||||||||||||||
| Form factor | (half) | ||||||||||||||
|
ID:168c:0032 (8 addl. devices) SS: 1a3b:1186 | |||||||||||||||
|
| |||||||||||||||
| FCCID | PPD-AR5B125 | ||||||||||||||
| ICID | 4104A-AR5B125 | ||||||||||||||
|
| |||||||||||||||
| Chip1 | Atheros AR9485 | ||||||||||||||
| MIMO status | 1x1:1 | ||||||||||||||
| Wireless Standards | IEEE 802.11b/g/n | ||||||||||||||
| 802.11n | up to 150 Mbps | ||||||||||||||
| 802.11g | up to 54 Mbps | ||||||||||||||
| 802.11b | up to 11 Mbps | ||||||||||||||
| Operating Frequency | 2.4 GHz | ||||||||||||||
| Other | |||||||||||||||
| Manuf/OEM/ODM | AzureWave | ||||||||||||||
|
| |||||||||||||||
|
Probable Linux driver | |||||||||||||||
|
Windows driver | |||||||||||||||
| Retail | |||||||||||||||
| FCC approval date | 08 March 2011 | ||||||||||||||
| |||||||||||||||
For a list of all currently documented Atheros (QCA) chipsets with specifications, see Atheros.
For a list of all currently documented AzureWave devices with specifications, see AzureWave.
- • 150 Mbps - 1SS 2.4GHz 802.11n (40MHz chan.) = N150 class
Overview
This card is used in the ASUS VivoBook Q200E-BHI3T45 (model variant of X202E) and Q200E-BCL0803E (model variant of X202EV) and on the ASUS P8Z77-V PRO inside of the Wi-Fi GO! Adapter without a brand sticker.
