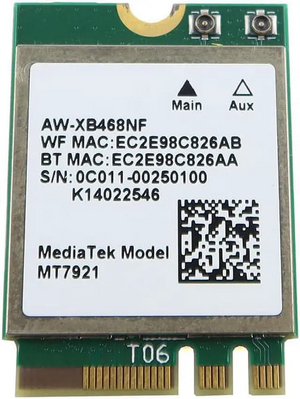

AzureWave AW-XB468NF

From TechInfoDepot
Jump to navigationJump to search
abgn+ac+ax (AX1800)
2T2R 802.11ax (WiFi 6) WLAN/BT Combo Card
WikiDevi.wi-cat.ru AzureWave AW-XB468NF
Platform
BrandModelRev AzureWave AW-XB468NF
Interface M.2 2.1
Connector M.2
Form factor module
ID:14c3:7961 (2 addl. devices) SS: 1a3b:4680
Windows: PCI\VEN_14C3&DEV_7961&SUBSYS_46801A3B
FCCID RAS-MT7921
ICID 7542A-MT7921
Chip1 MediaTek MT7921L

OUI: none specified

Antenna Connection MHF4
MIMO status 2x2:2
Wireless Standards IEEE 802.11a/b/g/n/ac/ax
802.11ax up to 1201/574 Mbps
802.11ac up to 867 Mbps
802.11n up to 300 Mbps
802.11g up to 54 Mbps
802.11b up to 11 Mbps
802.11a up to 54 Mbps
Operating Frequency 2.4 or 5 GHz
Other
Flags:
WiFi 6, Bluetooth 5.0 LE, WPA3, Wi-Fi Direct, WMM, Wi-Fi Agile Multiband

Windows driver
Win 10 (64-bit)

Retail
FCC approval date 25 September 2020
Country of manuf China
 FCC ID
AI-LINK WF-M921E-MPA1RAS-MT7921
LinkStar-H68K-1432RAS-MT7921
MediaTek MT7921 Reference DesignRAS-MT7921
MediaTek MT7921K Reference DesignRAS-MT7921K
RAS-MT7921

For a list of all currently documented MediaTek chipsets with specifications, see MediaTek.

For a list of all currently documented AzureWave devices with specifications, see AzureWave.

1201 Mbps - 2SS 5GHz 802.11ax (80MHz chan., 1024-QAM)
574 Mbps - 2SS 2.4GHz 802.11ax (40MHz chan., 256-QAM) = AX1800 class

Overview

  • WPA3-Enterprise, WPA3-Personal, Wi-Fi Direct, WMM, Wi-Fi Agile Multiband
The full part of the MediaTek chip used in this device is MT7921LEN
MediaTek MT7921 Reference Design
MediaTek MT7921 - MediaTek MT7921LEN
WFA100148 (2020-11-05)
See also: AzureWave and MediaTek
