Cubietech Cubieboard 5
| abgn (AN300) | |||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Single-board Computer | |||||||||||||||||||||||||||||
|
| |||||||||||||||||||||||||||||
| Homepage | Product page | ||||||||||||||||||||||||||||
| WikiDevi.wi-cat.ru | Cubietech Cubieboard 5 | ||||||||||||||||||||||||||||
| 3rd Party Firmware | |||||||||||||||||||||||||||||
| dd-wrt | Status Unknown | ||||||||||||||||||||||||||||
| OpenWrt | Status Unknown | ||||||||||||||||||||||||||||
| Tomato any flavor | Incompatible | ||||||||||||||||||||||||||||
| Gargoyle | Status Unknown | ||||||||||||||||||||||||||||
| Platform | |||||||||||||||||||||||||||||
| Brand • Model • Rev | Cubietech Cubieboard 5 V1.1 150925 | ||||||||||||||||||||||||||||
| FCC ID (fcc.io) | none specified | ||||||||||||||||||||||||||||
| FCC ID (fcc.report) | none specified | ||||||||||||||||||||||||||||
| Type | single-board computer, development board | ||||||||||||||||||||||||||||
| CPU1 | Allwinner H8 | ||||||||||||||||||||||||||||
| CPU1 Type | ARMv7-A Cortex-A7 | ||||||||||||||||||||||||||||
| CPU1 Speed | 2.0 GHz ( 8 cores ) | ||||||||||||||||||||||||||||
| Flash1 Chip | SK hynix H26M41103HPR | ||||||||||||||||||||||||||||
| Flash1 Size | 8 GiB 8,192 MiB <br />8,589,934,592 B <br />67,108,864 Kib <br />8,388,608 KiB <br />65,536 Mib <br /> | ||||||||||||||||||||||||||||
| RAM1 Size | 2 GiB 2,048 MiB <br />2,147,483,648 B <br />16,777,216 Kib <br />2,097,152 KiB <br />16,384 Mib <br /> | ||||||||||||||||||||||||||||
| RAM1 Chip | SK hynix H5TQ4G83AFR-PBC x 4 | ||||||||||||||||||||||||||||
| ETH chip1 | Allwinner H8 | ||||||||||||||||||||||||||||
| ETH chip2 | Realtek RTL8211E | ||||||||||||||||||||||||||||
| Ethernet Port Count | 1-1GbE-LAN | ||||||||||||||||||||||||||||
| Wired Standard | IEEE 802.3i/3u/3ab | ||||||||||||||||||||||||||||
| Stock bootloader | U-Boot 2011.09 rc1-00019 | ||||||||||||||||||||||||||||
| Stock FW OS | Linux 3.4.39 Linaro 14.04 | ||||||||||||||||||||||||||||
| Expansion IF types | USB 2.0, SATA 2, Micro SD Card slot | ||||||||||||||||||||||||||||
| USB ports | 3 | ||||||||||||||||||||||||||||
| SD/MMC Slots | 1 | ||||||||||||||||||||||||||||
| SATA Ports | 1 | ||||||||||||||||||||||||||||
| USB Hub Compatible | Untested | ||||||||||||||||||||||||||||
| Power | 5 VDC, 3 A | ||||||||||||||||||||||||||||
| Connector type |
barrel 1.7 mm (OD) 4 mm (LEN) | ||||||||||||||||||||||||||||
| Serial Port (UART) | yes, 3.3V TTL, 4-pin header, populated, (115200 8N1) | ||||||||||||||||||||||||||||
|
Flags: | |||||||||||||||||||||||||||||
|
Additional chips | |||||||||||||||||||||||||||||
| Other | |||||||||||||||||||||||||||||
|
| |||||||||||||||||||||||||||||
| 3rd Party Firmware Support | Android 4.4 | ||||||||||||||||||||||||||||
| Retail | |||||||||||||||||||||||||||||
| (Est.) release date | January 2016 | ||||||||||||||||||||||||||||
| (Est.) initial retail price (in USD): | $84 | ||||||||||||||||||||||||||||
| UPC |
9787115284167 (UPC DB, On eBay) | ||||||||||||||||||||||||||||
| ASIN |
B06XB3H7X5 | ||||||||||||||||||||||||||||
| Country of manuf | China | ||||||||||||||||||||||||||||
| Radio 1 | |||||||||||||||||||||||||||||
| Radio1 module | AMPAK AP6330 | ||||||||||||||||||||||||||||
| Radio1 module IF | SDIO (module) | ||||||||||||||||||||||||||||
| Chip1 | Broadcom BCM4330 | ||||||||||||||||||||||||||||
| Chip2 | Broadcom BCM40183 | ||||||||||||||||||||||||||||
| Wireless interface OUI | CC:B8:A8 | ||||||||||||||||||||||||||||
| Antenna Connector Type | U.FL | ||||||||||||||||||||||||||||
| MIMO status | 1x1:1 | ||||||||||||||||||||||||||||
| Wireless Standard | IEEE 802.11a/b/g/n | ||||||||||||||||||||||||||||
| 802.11n | up to 150 Mbps | ||||||||||||||||||||||||||||
| 802.11g | up to 54 Mbps | ||||||||||||||||||||||||||||
| 802.11b | up to 11 Mbps | ||||||||||||||||||||||||||||
| 802.11a | up to 54 Mbps | ||||||||||||||||||||||||||||
| WiFi Operating Frequency | 2.4 or 5 GHz | ||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||
For a list of all currently documented Allwinner SoC's with specifications, see Allwinner.
For a list of all currently documented Broadcom chipsets with specifications, see Broadcom.
For a list of all currently documented Realtek chipsets with specifications, see Realtek.
For a list of all currently documented Cubietech devices with specifications, see Cubietech.
Overview

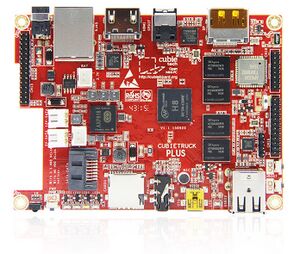

This board is also referred to as Cubietruck Plus which is silkscreened on the PCB.
Hardware specification
- CPU: Allwinner H8 @2.0GHz
- SoC: Octa-core ARM (Cortex-A7)
- GPU: PowerVR SGX544MP1
- Memory: 2GB (DDR3) RAM @672MHz
- Onboard Storage: 8GB (eMMC) Flash,
- TF card (max.64GB)/MMC card slot
Links of Interest
- Cubietech Cubietruck Plus on Linux-Sunxi Wiki
- Cubieboard 5 Development Board is Powered by Allwinner H8 SoC on CNX-Software
- Cubietruck Plus Development Board with DisplayPort & HDMI on CNX-Software
See also
- Cubietech Cubietruck - Allwinner A20 2-cores ARM Cortex-A7 CPU @1.0GHz
- Cubietech Cubieboard - Allwinner A10 1-cores ARM Cortex-A8 CPU @1.0GHz
- Cubietech Cubieboard 2 - Allwinner A20 2-cores ARM Cortex-A7 CPU @1.0GHz
- Cubietech Cubieboard 3 - Allwinner A20 2-cores ARM Cortex-A7 CPU @1.0GHz
- Cubietech Cubieboard 4 - Allwinner A80 SoC (4-cores ARM Cortex-A15 and
- 4-cores ARM Cortex-A7 big.LITTLE), GPU: PowerVR G6230, Wi-Fi (2.4/5GHz)
- Cubietech Cubieboard 5 - Allwinner H8 8-cores ARM Cortex-A7 CPU @2.0GHz
- GPU: PowerVR SGX544 @700MHz, Toshiba TC358777XBG, Wi-Fi (2.4/5GHz)
- Cubietech
- Embedded system/single-board computer
- Embedded system/development board
- Embedded System Allwinner
- Embedded System H8
- Allwinner
- Embedded System ARMv7-A
- Embedded System Cortex-A7
- Embedded System RTL8211E
- Embedded System Realtek
- Realtek
- Embedded System Broadcom
- Embedded System BCM4330
- Broadcom
- Embedded System BCM40183
- Has Mimo Status
- Embedded System IEEE 802.11a/b/g/n
- Single-Radio Wireless Embedded System
- Wireless Embedded System
- Dual-Band
- Embedded System
- English Documentation
