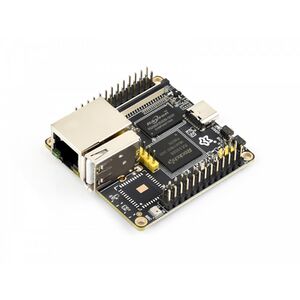

Luckfox Nova W

From TechInfoDepot
Jump to navigationJump to search
bgn+ax (AX287)
Single-board Computer
Homepage Product page
WikiDevi.wi-cat.ru Luckfox Nova W
3rd Party Firmware
dd-wrt Status Unknown
OpenWrt Status Unknown
Tomato any flavor Incompatible
Platform
BrandModelRev Luckfox Nova W
FCC ID 2AR82-SKIWB800D21
Type single-board computer
CPU1 ☒N Rockchip RK3308B
CPU1 Type ARM Cortex-A35
CPU1 Speed 1.3 GHz ( 4 cores )
Flash1 Chip Rayson RS70B08G3-S03F
Flash1 Size 8 GiB 8,192 MiB <br />8,589,934,592 B <br />67,108,864 Kib <br />8,388,608 KiB <br />65,536 Mib <br /> (eMMC)
RAM1 Size 512 MiB536,870,912 B <br />4,194,304 Kib <br />524,288 KiB <br />4,096 Mib <br />0.5 GiB <br /> (DDR3)
RAM1 Chip Rayson RS256M16V0DB-107AT
ETH chip1 Rockchip RK3308B
ETH chip2 Realtek RTL8201F
Ethernet Port Count 1-100MbE-LAN
Wired Standard IEEE 802.3i/3u

802dot11 OUI: 38:54:39 (-, 2 W)

Stock bootloader U-Boot 2017.09
Stock FW OS Linux 5.10.198 Buildroot 2021.11
Expansion IF types USB 2.0, Micro SD Card slot
USB ports 1
SD/MMC Slots 1
USB Hub Compatible Untested
PoE 802.3af, standard
Power 5 VDC, 2 A
Connector type USB (Type C) Female
Serial Port (UART) yes, via 26-pin header, 3.3V TTL, (1500000 8N1)

Flags:
Micro SD Card slot, Bluetooth 5.2 BLE, PoE Expansion header, MIPI CSI, microphone

Additional chips
1W Audio Power Amplifier;TI;LM4890;;1;
3 Channel Power Management IC;Everanalog;EA3036C;;1;,

Other

Default IP address: acquired via DHCP
the IP acquired via DHCP is used by 230 additional devices
of which 4 are Luckfox devices
Default login user: root
Default login password: luckfox
root:luckfox credentials used by 4 additional devices
of which 4 are Luckfox devices

Retail
FCC approval date 11 January 2022
(Est.) release date March 2025
(Est.) initial retail price (in USD): $19
Country of manuf China
Radio 1
Radio1 module CVTE SKI.WB800D.2
Radio1 module IF USB (module)
Chip1 AIC AIC8800D
Wireless interface OUI 38:54:39
Antenna Connector Type MHF4
MIMO status 1x1:1
Wireless Standard IEEE 802.11b/g/n/ax
802.11ax up to 287 Mbps
802.11n up to 150 Mbps
802.11g up to 54 Mbps
802.11b up to 11 Mbps
WiFi Operating Frequency 24 GHz
 FCC ID
Luckfox Lyra Ultra W2AR82-SKIWB800D21
Luckfox Omni3576 4GB/32GB2AR82-SKIWB800D21

For a list of all currently documented AIC chipsets with specifications, see AIC.
For a list of all currently documented Realtek chipsets with specifications, see Realtek.
For a list of all currently documented Rockchip SoC's with specifications, see Rockchip.

287 Mbps - 1SS 2.4GHz 802.11ax (40MHz chan., 256-QAM) = AX287 class

Overview

The PoE HAT is optional and required for PoE support.

Hardware specification

Quad-core (ARM Cortex-A35)
  • Memory: 512MB (SDRAM) DDR3
  • Storage: 8GB eMMC, TF card (max.64GB)/MMC card
  • WiFi & BT: , Bluetooth 5.2/BLE
  • Network: 1x Fast Ethernet w/ PoE (opt.)
  • USB: 1x USB 2.0 port
  • GPIO: 2x 26-pin Headers
  • Power Source: 5V/2A via USB Type-C
