Orange Pi CM5 Base Board (4G32G)

From TechInfoDepot
Jump to navigationJump to search
multiple revisions of this device, use caution
Orange Pi CM5 Base Board (4G32G)
Homepage Product page
WikiDevi.wi-cat.ru Orange Pi CM5 Base Board (4G32G)
3rd Party Firmware
dd-wrt Status Unknown
OpenWrt Supported (Unofficially)
Tomato any flavor Incompatible
Gargoyle Status Unknown
Platform
BrandModelRev Orange Pi OPI CM5 Base Board (4G32G) v1.2
Type single-board computer, SoM
CPU1 ☒N Rockchip RK3588S
CPU1 Type ARM Cortex-A76
CPU1 Type2 ARM Cortex-A55
CPU1 Speed 2.4 GHz ( 4 cores )
CPU1 Speed2 1.8 GHz ( 4 cores )
Flash1 Chip SanDisk SDINBDV4-32G
Flash1 Size 32 GiB 32,768 MiB <br />34,359,738,368 B <br />268,435,456 Kib <br />33,554,432 KiB <br />262,144 Mib <br /> (eMMC 5.1)
RAM1 Size 4 GiB 4,096 MiB <br />4,294,967,296 B <br />33,554,432 Kib <br />4,194,304 KiB <br />32,768 Mib <br /> (LPDDR4 SDRAM)
RAM1 Chip Micron MT53E512M32D1ZW-046 WT:B x 2
ETH chip1 Rockchip RK3588S
ETH chip2 Motorcomm YT8531C
ETH chip3 Realtek RTL8125BG
ETH chip4 Realtek RTL8125BG
Ethernet Port Count 1-1GbE-WAN
2-2.5GbE-LAN
Wired Standard IEEE 802.3i/3u/3ab/3bz

Ethernet OUI: C0:74:2B (1 E, -)

Stock bootloader U-Boot 2017.09 g9b3ad1ec03-230907-dirty
Stock FW OS Linux 5.10.157
Expansion IF types USB 3.0, USB 2.0, Micro SD Card slot, HDMI 2.1
USB ports 2
SD/MMC Slots 1
HDMI 1
USB Hub Compatible Untested
Power 5 VDC, 5 A
Connector type USB (Type C) Female
Serial Port (UART) yes, 3-pin header, 3.3V TTL, (1500000 8N1)

Flags:
Micro SD Card slot, HDMI 2.1, MIPI CSI, IR Receiver, ADC, RTC w/ battery, fan header, PWM, I2C, SPI, CAN, GPIO, UART

Additional chips
Low Power I2C RTC;AnalogTek;AT8563S;;1;
Power Management IC;Rockchip;RK806-1;;1;
3MHz 1.5/2A Step-Down Converter;ETA Solutions;ETA3409;;1;

Other

Default IP address: acquired via DHCP
the IP acquired via DHCP is used by 228 additional devices
of which 5 are Orange Pi devices
Default login user: orangepi
Default login password: orangepi
orangepi:orangepi credentials used by 2 additional devices
of which 2 are Orange Pi devices

Manuf/OEM/ODM Shenzhen Xunlong
3rd Party Firmware Support Ubuntu
, Debian
, OpenWrt (unofficial), Android 13
Retail
(Est.) release date July 2024
(Est.) initial retail price (in USD): $90
ASIN B0DPLXX1D9 Flag of the United States.svg
Country of manuf China
 CPU1 brandFLA1RAM1
Orange Pi CM5 (4G32G)Rockchip32,768 MiB34,359,738,368 B <br />268,435,456 Kib <br />33,554,432 KiB <br />262,144 Mib <br />32 GiB <br />4,096 MiB4,294,967,296 B <br />33,554,432 Kib <br />4,194,304 KiB <br />32,768 Mib <br />4 GiB <br />
Orange Pi CM5 Base Board (4G32G)Rockchip32,768 MiB34,359,738,368 B <br />268,435,456 Kib <br />33,554,432 KiB <br />262,144 Mib <br />32 GiB <br />4,096 MiB4,294,967,296 B <br />33,554,432 Kib <br />4,194,304 KiB <br />32,768 Mib <br />4 GiB <br />

Motorcomm not currently documented.
For a list of all currently documented Realtek chipsets with specifications, see Realtek.
For a list of all currently documented Rockchip SoC's with specifications, see Rockchip.

For a list of all currently documented Orange Pi devices with specifications, see Orange Pi.

Overview

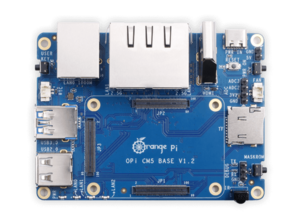

OrangePi logo and "OPi CM5 BASE V1.2" are on top of board under the SoM.

Consists of base board and Orange Pi CM5 (4G32G) SoM

Hardware specification

  • CPU: Rockchip RK3588 @2.4GHz Quad-core ARM (Cortex-A76)
+ @1.8GHz Quad-Core ARM (Cortex-A55)
  • GPU: Mali-G610 MP4 (OpenGL ES3.2, OpenCL 2.2); NPU Support 6T,
VPU (with 8K@60fps VP9 and 8K@30fps H265/H264 decoding)
  • Storage: 32GB eMMC 5.1 flash,
TF Card (max. 256GB)/MMC Card slot
  • Memory: 4GB (LPDDR4) SDRAM
  • Network: 1x GbE port, 2x 2.5GbE ports
  • USB: 1x USB 3.0, 1x USB 2.0 ports
  • GPIO: 12-pin FPC
  • Power Source: 5V/5A via USB (Type-C)

Links of Interest

Flashing

Flashing OpenWrt

Support started version: unknown
Current supported version: unknown

Please insert instructions here
