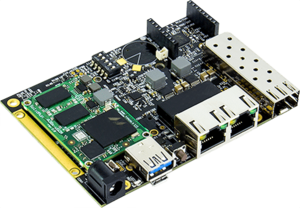

SolidRun ClearFog Base
From TechInfoDepot
Jump to navigationJump to search
| Router | |||||||||||||||||||||
|
| |||||||||||||||||||||
| Homepage | Product page | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3rd Party Firmware | |||||||||||||||||||||
| dd-wrt | Status Unknown | ||||||||||||||||||||
| OpenWrt | Supported | ||||||||||||||||||||
| Tomato any flavor | Incompatible | ||||||||||||||||||||
| Gargoyle | Status Unknown | ||||||||||||||||||||
| Platform | |||||||||||||||||||||
| Brand • Model • Rev | SolidRun ClearFog Base | ||||||||||||||||||||
| Type | router | ||||||||||||||||||||
| CPU1 | Marvell 88F6828 | ||||||||||||||||||||
| CPU1 Type | ARMv7 Cortex-A9 | ||||||||||||||||||||
| CPU1 Speed | 1.6 GHz ( 2 cores ) | ||||||||||||||||||||
| Flash1 Chip | Brand? Model? | ||||||||||||||||||||
| Flash1 Size | 0 MiB 0 B <br />0 Kib <br />0 KiB <br />0 Mib <br />0 GiB <br /> (microSD) | ||||||||||||||||||||
| RAM1 Size | 1 GiB 1,024 MiB <br />1,073,741,824 B <br />8,388,608 Kib <br />1,048,576 KiB <br />8,192 Mib <br /> | ||||||||||||||||||||
| RAM1 Chip | Brand? Model? | ||||||||||||||||||||
| ETH chip1 | Marvell 88F6828 | ||||||||||||||||||||
| Switch | Marvell 88F6828 | ||||||||||||||||||||
| Ethernet Port Count | 2-1GbE-LAN | ||||||||||||||||||||
| Wired Standard | IEEE 802.3i/3u/3ab | ||||||||||||||||||||
|
| |||||||||||||||||||||
| Stock bootloader | U-Boot | ||||||||||||||||||||
| Expansion IF types | microSD, Mini PCIe, M.2 2242, USB 3.0, SATA | ||||||||||||||||||||
| USB ports | 1 | ||||||||||||||||||||
| SD/MMC Slots | 1 | ||||||||||||||||||||
| SATA Ports | 1 | ||||||||||||||||||||
| M.2 Slots | 1 | ||||||||||||||||||||
| USB Hub Compatible | Untested | ||||||||||||||||||||
| Power | 9-32 VDC, ? A | ||||||||||||||||||||
| Serial Port (UART) | yes, 3.3V TTL, (115200 8N1) | ||||||||||||||||||||
| JTAG Port | no | ||||||||||||||||||||
|
| |||||||||||||||||||||
|
| |||||||||||||||||||||
| Other | |||||||||||||||||||||
|
| |||||||||||||||||||||
| 3rd Party Firmware Support |
OpenWrt • (List | Dev | DLs) | ||||||||||||||||||||
| Retail | |||||||||||||||||||||
| Availability | End of Life | ||||||||||||||||||||
| |||||||||||||||||||||
For a list of all currently documented Marvell chipsets with specifications, see Marvell.
For a list of all currently documented SolidRun devices with specifications, see SolidRun.
Flashing
| NOTE: During configuration or flashing a device, the only things that should be hooked to the device is the computer and power. |
Flashing OpenWrt
OpenWrt Target: mvebu
OpenWrt Subtarget: cortexa9
OpenWrt Package architecture: arm_cortex-a9_vfpv3-d16
Support started version: 17.01.4
Current supported version: 24.10.4
OpenWrt Subtarget: cortexa9
OpenWrt Package architecture: arm_cortex-a9_vfpv3-d16
Support started version: 17.01.4
Current supported version: 24.10.4
WLAN Comment: WLAN dependent on mPCIe installed
Comment:
SATA via M.2 2242, Serial console is populated on a micro-USB port
Comment:
SATA via M.2 2242, Serial console is populated on a micro-USB port
Please insert instructions here
