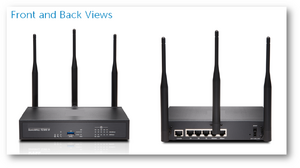

SonicWALL TZ 300W (APL28-0B5)

abgn+ac (AC1750)
Wireless Network Security Appliance
Wikipedia	SonicWALL
WikiDevi.wi-cat.ru	SonicWALL TZ 300W (APL29-0B5)
3rd Party Firmware
dd-wrt	Status Unknown
OpenWrt	Status Unknown
Tomato any flavor	Incompatible
Platform
Brand • Model • Rev	SonicWALL TZ 300W
Model Part Number	APL28-0B5
FCC ID	E2K-APL280B5, 2AKCZ-0B5
Type	Router Firewall, wireless router
CPU1 Y	Cavium CN7020
CPU1 Type	MIPS64 OCTEON III
CPU1 Speed	800 MHz ( 2 cores )
Flash1 Chip	Micron Model?
Flash1 Size	64 MiB 67,108,864 B <br />524,288 Kib <br />65,536 KiB <br />512 Mib <br />0.0625 GiB <br />
RAM1 Size	1 GiB 1,024 MiB <br />1,073,741,824 B <br />8,388,608 Kib <br />1,048,576 KiB <br />8,192 Mib <br />
RAM1 Chip	Micron Model? x 2
ETH chip1	Broadcom BCM54616
Switch	Broadcom BCM53125S
Ethernet Port Count	1-1GbE-WAN 4-1GbE-LAN
Wired Standard	IEEE 802.3i/3u/3ab
802dot11 OUI: none specified
Expansion IF types	Mini PCIe, USB 3.0
Mini PCIe slots	1
USB ports	1
USB Hub Compatible	Untested
Serial Port (UART)	yes
Retail
FCC approval date	17 March 2016
Radio 1
Radio1 module	unknown
Radio1 module IF	Mini PCIe
Chip1	Qualcomm Atheros QCA9880
Wireless interface OUI	none specified
Antenna Connector Type	RP-SMA
MIMO status	3x3:3
Wireless Standard	IEEE 802.11a/b/g/n/ac
802.11ac	up to 1300 Mbps
802.11n	up to 450 Mbps
802.11g	up to 54 Mbps
802.11b	up to 11 Mbps
802.11a	up to 54 Mbps
WiFi Operating Frequency	2.4 or 5 GHz
FCC ID SonicWALL TZ 400W (APL28-0B5) E2K-APL280B5 2AKCZ-0B5   FCC ID SonicWALL TZ 400W (APL28-0B5) E2K-APL280B5 2AKCZ-0B5

For a list of all currently documented Broadcom chipsets with specifications, see Broadcom.
For a list of all currently documented Cavium (Star) SoC's with specifications, see Cavium.
For a list of all currently documented Qualcomm Atheros (QCA) chipsets with specifications, see Qualcomm Atheros.

For a list of all currently documented SonicWALL devices with specifications, see SonicWALL.

• 450 Mbps - 3SS 2.4GHz 802.11n (40MHz chan.),

• 1300 Mbps - 3SS 5GHz 802.11ac (80MHz chan.) = AC1750 class

Models

SonicWALL • Cavium

• SonicWALL TZ 105W - CPU: Cavium (1x @500MHz)
• SonicWALL TZ 205W - CPU: Cavium (2x @400MHz)
• SonicWALL TZ 215W - CPU: Cavium (2x @500MHz)
• SonicWALL TZ 180 - CPU: Cavium CN220 (1x @200MHz)
• SonicWALL TZ 180W - CPU: Cavium CN220 (1x @200MHz)
• SonicWALL TZ 190W - CPU: Cavium CN220 (1x @200MHz)
• SonicWALL TZ 210(W) - CPU: Cavium Octeon
• SonicWALL TZ 250MW - CPU: Cavium Octeon

• SonicWALL SOHO 250W (APL41-0BA) - CPU: Cavium CN7020

Octeon III CN7020-800 (2 cores @800MHz) • Manual (W)

• SonicWALL TZ 300W (APL28-0B5) - CPU: Cavium CN7020

Octeon III CN7020-800 (2 cores @800MHz) • Manual

• SonicWALL TZ 350W - CPU: Cavium CN7020

Octeon III CN7020-800 (2 cores @800MHz)

• SonicWALL TZ 400W (APL28-0B5) - CPU: Cavium CN7130-SCP

Octeon III (4 cores @800MHz, 512kB cache)

• SonicWALL TZ 500W (APL29-0B7) - CPU: Cavium CN7130

Octeon III CN7130-1000 (4 cores @1.0 GHz) • Manual

• SonicWALL TZ 600P - CPU: Cavium CN7130

Octeon III CN7130-1400 (4 cores 1.4GHz)

• SonicWALL NSA 2600 - CPU: Cavium CN6230/CN6330

Octeon II (4 cores @800MHz, 1/2MB cache)
