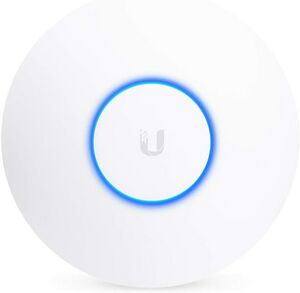

Ubiquiti Networks UniFi AP AC HD
From TechInfoDepot
Jump to navigationJump to search
| abgn+ac (AC2600) | |||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 802.11ac Wave 2 Enterprise Wi-Fi Access Point (UAP-AC-HD-US) | |||||||||||||||||||||||||||||
|
| |||||||||||||||||||||||||||||
| Wikipedia | Ubiquiti Networks | ||||||||||||||||||||||||||||
| 3rd Party Firmware | |||||||||||||||||||||||||||||
| dd-wrt | Status Unknown | ||||||||||||||||||||||||||||
| OpenWrt | Supported | ||||||||||||||||||||||||||||
| Tomato any flavor | Incompatible | ||||||||||||||||||||||||||||
| Gargoyle | Status Unknown | ||||||||||||||||||||||||||||
| Platform | |||||||||||||||||||||||||||||
| Brand • Model • Rev | Ubiquiti Networks UniFi AP ACHD | ||||||||||||||||||||||||||||
| Model Part Number | UAP-AC-HD-US | ||||||||||||||||||||||||||||
| FCC ID (fcc.io) | SWX-UAPACHD | ||||||||||||||||||||||||||||
| FCC ID (fcc.report) | SWX-UAPACHD | ||||||||||||||||||||||||||||
| Type | access point | ||||||||||||||||||||||||||||
| CPU1 | Qualcomm IPQ8064 | ||||||||||||||||||||||||||||
| CPU1 Type | ARMv7-A Cortex-A15 | ||||||||||||||||||||||||||||
| CPU1 Speed | 1.4 GHz ( 2 cores ) | ||||||||||||||||||||||||||||
| Flash1 Chip | Micron MT29F2G08ABBEAH4 | ||||||||||||||||||||||||||||
| Flash1 Size | 256 MiB 268,435,456 B <br />2,097,152 Kib <br />262,144 KiB <br />2,048 Mib <br />0.25 GiB <br /> (NAND) | ||||||||||||||||||||||||||||
| Flash2 Chip | Macronix MX25U25635F | ||||||||||||||||||||||||||||
| Flash2 Size | 32 MiB33,554,432 B <br />262,144 Kib <br />32,768 KiB <br />256 Mib <br />0.0313 GiB <br /> (SPI NOR) | ||||||||||||||||||||||||||||
| RAM1 Size | 512 MiB 536,870,912 B <br />4,194,304 Kib <br />524,288 KiB <br />4,096 Mib <br />0.5 GiB <br /> (DDR3) | ||||||||||||||||||||||||||||
| RAM1 Chip | Brand? Model? | ||||||||||||||||||||||||||||
| ETH chip1 | Qualcomm IPQ8064 | ||||||||||||||||||||||||||||
| ETH chip2 | Atheros AR8033 | ||||||||||||||||||||||||||||
| ETH chip3 | Atheros AR8033 | ||||||||||||||||||||||||||||
| Ethernet Port Count | 2-1GbE-LAN | ||||||||||||||||||||||||||||
| Wired Standard | IEEE 802.3i/3u/3ab | ||||||||||||||||||||||||||||
|
802dot11 OUI: none specified | |||||||||||||||||||||||||||||
| Stock bootloader | U-Boot | ||||||||||||||||||||||||||||
| Stock FW OS | UBNT System | ||||||||||||||||||||||||||||
| Expansion IF types | Mini PCIe, USB 3.0 | ||||||||||||||||||||||||||||
| Mini PCIe slots | 2 | ||||||||||||||||||||||||||||
| USB ports | 1 | ||||||||||||||||||||||||||||
| USB Hub Compatible | Untested | ||||||||||||||||||||||||||||
| PoE | 802.3at, standard | ||||||||||||||||||||||||||||
| Power | ? VDC, ? A | ||||||||||||||||||||||||||||
| Serial Port (UART) | yes, 3.3V TTL, (115200 8N1) | ||||||||||||||||||||||||||||
|
Flags: | |||||||||||||||||||||||||||||
|
| |||||||||||||||||||||||||||||
| Other | |||||||||||||||||||||||||||||
|
| |||||||||||||||||||||||||||||
| 3rd Party Firmware Support |
OpenWrt • (List | Dev | DLs) | ||||||||||||||||||||||||||||
| Retail | |||||||||||||||||||||||||||||
| (Est.) release date | 01 January 2017 | ||||||||||||||||||||||||||||
| ASIN |
B01N15FSAG | ||||||||||||||||||||||||||||
| Country of manuf | China | ||||||||||||||||||||||||||||
| Physical | |||||||||||||||||||||||||||||
| Dimensions | 8.66 x 8.66 x 1.89 inches | ||||||||||||||||||||||||||||
| Weight | 1.83 pounds | ||||||||||||||||||||||||||||
| Radio 1 | |||||||||||||||||||||||||||||
| Radio1 module | unknown | ||||||||||||||||||||||||||||
| Radio1 module IF | Mini PCIe | ||||||||||||||||||||||||||||
| Chip1 | Qualcomm Atheros QCA9994 | ||||||||||||||||||||||||||||
| Wireless interface OUI | none specified | ||||||||||||||||||||||||||||
| Antenna Connector Type | none specified | ||||||||||||||||||||||||||||
| MIMO status | 4x4:4 | ||||||||||||||||||||||||||||
| Wireless Standard | IEEE 802.11b/g/n | ||||||||||||||||||||||||||||
| N-QAM | up to 800 Mbps | ||||||||||||||||||||||||||||
| 802.11n | up to 600 Mbps | ||||||||||||||||||||||||||||
| 802.11g | up to 54 Mbps | ||||||||||||||||||||||||||||
| 802.11b | up to 11 Mbps | ||||||||||||||||||||||||||||
| WiFi Operating Frequency | 2.4 GHz | ||||||||||||||||||||||||||||
| Radio 2 | |||||||||||||||||||||||||||||
| Radio2 module | unknown | ||||||||||||||||||||||||||||
| Radio2 module IF | Mini PCIe | ||||||||||||||||||||||||||||
| Chip1 | Qualcomm Atheros QCA9994 | ||||||||||||||||||||||||||||
| Wireless interface OUI | none specified | ||||||||||||||||||||||||||||
| Antenna Connector Type | none specified | ||||||||||||||||||||||||||||
| MIMO status | 4x4:4 | ||||||||||||||||||||||||||||
| Wireless Standard | IEEE 802.11a/n/ac | ||||||||||||||||||||||||||||
| 802.11ac | up to 1733 Mbps | ||||||||||||||||||||||||||||
| 802.11n | up to 600 Mbps | ||||||||||||||||||||||||||||
| 802.11a | up to 54 Mbps | ||||||||||||||||||||||||||||
| WiFi Operating Frequency | 5 GHz | ||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||
For a list of all currently documented Atheros (QCA) chipsets with specifications, see Atheros.
For a list of all currently documented Qualcomm chipsets with specifications, see Qualcomm.
For a list of all currently documented Qualcomm Atheros (QCA) chipsets with specifications, see Qualcomm Atheros.
For a list of all currently documented Ubiquiti Networks devices with specifications, see Ubiquiti Networks.
Flashing
| NOTE: During configuration or flashing a device, the only things that should be hooked to the device is the computer and power. |
Flashing OpenWrt
Target: ipq806x
Subtarget: generic
Package architecture: arm_cortex-a15_neon-vfpv4
Support started version: 21.02.0
Current supported version: 25.12.2
Subtarget: generic
Package architecture: arm_cortex-a15_neon-vfpv4
Support started version: 21.02.0
Current supported version: 25.12.2
LAN Comment: Atheros AR8033
WLAN Hardware: 2x Qualcomm Atheros QCA9994
WLAN Comment: 4x4 MU-MIMO Wave 2
Installation method(s):
CLI generic, see git-commit
Recovery method(s):
Ubiquiti TFTP
Comment:
Since OpenWRT version 24.10, CPU ipq806x has switched to DSA architecture. Hence upgrading from earlier versions to 24.10.x or later requires *complete reset* of router configuration.
WLAN Hardware: 2x Qualcomm Atheros QCA9994
WLAN Comment: 4x4 MU-MIMO Wave 2
Installation method(s):
CLI generic, see git-commit
Recovery method(s):
Ubiquiti TFTP
Comment:
Since OpenWRT version 24.10, CPU ipq806x has switched to DSA architecture. Hence upgrading from earlier versions to 24.10.x or later requires *complete reset* of router configuration.
| git • >> |
|---|
ipq806x: add support for Ubiquiti UniFi AC HD
Hardware
--------
SoC: Qualcomm IPQ8064
RAM: 512MB DDR3
Flash: 256MB NAND (Micron MT29F2G08ABBEAH4)
32MB SPI-NOR (Macronix MX25U25635F)
WLAN: Qualcomm Atheros QCA9994 4T4R b/g/n
Qualcomm Atheros QCA9994 4T4R a/n/ac
ETH: eth0 - SECONDARY (Atheros AR8033)
eth1 - MAIN (Atheros AR8033)
USB: USB-C
LED: Dome (white / blue)
BTN: Reset
Installation
------------
Copy the OpenWrt sysupgrade image to the /tmp directory of the device
using scp. Default IP address is 192.168.1.20 and default username and
password are "ubnt".
SSH to the device and write the bootselect flag to ensure it is booting
from the mtd partition the OpenWrt image will be written to. Verify the
output device below matches mtd partition "bootselect" using /proc/mtd.
> dd if=/dev/zero bs=1 count=1 seek=7 conv=notrunc of=/dev/mtd11
Write the OpenWrt sysupgrade image to the mtd partition labeled
"kernel0". Also verify the used partition device using /proc/mtd.
> dd if=/tmp/sysupgrade.bin of=/dev/mtdblock12
Reboot the device.
Back to stock
-------------
Use the TFTP recovery procedure with the Ubiquiti firmware image to
restore the vendor firmware.
|
