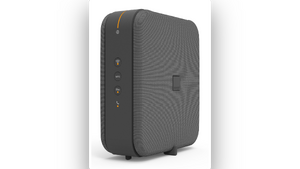

Orange Funbox 7
From TechInfoDepot
Jump to navigationJump to search
| abgn+ac+ax+be (BE6800) | |||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Funbox 7 Router | |||||||||||||||||||||
|
| |||||||||||||||||||||
| Homepage | Product page (PL) | ||||||||||||||||||||
| WikiDevi.wi-cat.ru | Orange Funbox 7 | ||||||||||||||||||||
| 3rd Party Firmware | |||||||||||||||||||||
| dd-wrt | Status Unknown | ||||||||||||||||||||
| OpenWrt | Status Unknown | ||||||||||||||||||||
| Tomato any flavor | Status Unknown | ||||||||||||||||||||
| Platform | |||||||||||||||||||||
| Brand • Model • Rev | Orange Funbox 7 | ||||||||||||||||||||
| FCC ID (fcc.io) | none specified | ||||||||||||||||||||
| FCC ID (fcc.report) | none specified | ||||||||||||||||||||
| Type | wireless router, ONT, CPE | ||||||||||||||||||||
| CPU1 | Broadcom BCM68370 | ||||||||||||||||||||
| Flash1 Chip | Samsung KLM8G1GETF-B041 | ||||||||||||||||||||
| Flash1 Size | 8 GiB 8,192 MiB <br />8,589,934,592 B <br />67,108,864 Kib <br />8,388,608 KiB <br />65,536 Mib <br /> (eMMC) | ||||||||||||||||||||
| RAM1 Size | 2 GiB 2,048 MiB <br />2,147,483,648 B <br />16,777,216 Kib <br />2,097,152 KiB <br />16,384 Mib <br /> | ||||||||||||||||||||
| RAM1 Chip | Leahkinn LTHS0066GS4-ZPK2 | ||||||||||||||||||||
| ETH chip1 | Broadcom BCM68370 | ||||||||||||||||||||
| Switch | Broadcom BCM68370 | ||||||||||||||||||||
| Ethernet Port Count |
1-2.5GbE-WAN 3-1GbE-LAN | ||||||||||||||||||||
| Wired Standard | IEEE 802.3i/3u/3ab/3bz | ||||||||||||||||||||
|
802dot11 OUI: none specified | |||||||||||||||||||||
| Expansion IF types | none specified | ||||||||||||||||||||
| Power | 12 VDC, 2 A | ||||||||||||||||||||
| Connector type | barrel | ||||||||||||||||||||
|
Flags: | |||||||||||||||||||||
|
| |||||||||||||||||||||
| Other | |||||||||||||||||||||
|
Default IP address: 192.168.1.1 | |||||||||||||||||||||
| Manuf/OEM/ODM | Arcadyan | ||||||||||||||||||||
| Retail | |||||||||||||||||||||
| (Est.) release date | 2025 | ||||||||||||||||||||
| Country of manuf | Vietnam | ||||||||||||||||||||
| Radio 1 | |||||||||||||||||||||
| Chip1 | Broadcom BCM6711 | ||||||||||||||||||||
| Wireless interface OUI | none specified | ||||||||||||||||||||
| Antenna Connector Type | none specified | ||||||||||||||||||||
| MIMO status | 3x3:3 | ||||||||||||||||||||
| Wireless Standard | IEEE 802.11b/g/n/ax/be | ||||||||||||||||||||
| 802.11be | up to 1032 Mbps | ||||||||||||||||||||
| 802.11ax | up to 867 Mbps | ||||||||||||||||||||
| 802.11n | up to 450 Mbps | ||||||||||||||||||||
| 802.11g | up to 54 Mbps | ||||||||||||||||||||
| 802.11b | up to 11 Mbps | ||||||||||||||||||||
| WiFi Operating Frequency | 2.4 GHz | ||||||||||||||||||||
| Radio 2 | |||||||||||||||||||||
| Chip1 | Broadcom BCM6726 | ||||||||||||||||||||
| Wireless interface OUI | none specified | ||||||||||||||||||||
| Antenna Connector Type | none specified | ||||||||||||||||||||
| MIMO status | 4x4:4 | ||||||||||||||||||||
| Wireless Standard | IEEE 802.11a/n/ac/ax/be | ||||||||||||||||||||
| 802.11be | up to 5765 Mbps | ||||||||||||||||||||
| 802.11ax | up to 2402 Mbps | ||||||||||||||||||||
| 802.11ac | up to 1733 Mbps | ||||||||||||||||||||
| 802.11n | up to 600 Mbps | ||||||||||||||||||||
| 802.11a | up to 54 Mbps | ||||||||||||||||||||
| WiFi Operating Frequency | 5 GHz | ||||||||||||||||||||
| |||||||||||||||||||||
For a list of all currently documented Broadcom chipsets with specifications, see Broadcom.
For a list of all currently documented Orange devices with specifications, see Orange.
