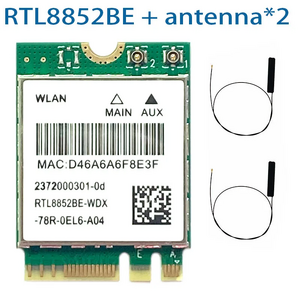

Realtek RTL8852BE Combo Module

abgn+ac+ax (AX1800)
802.11ax RTL8852BE Combo Module
Platform
Brand • Model • Rev	Realtek RTL8852BE Combo Module
Interface	PCIe/USB 2.0
Connector	M.2 2.0 (Key A/E)
Form factor	2230
ID:10ec:b852 (2 addl. devices) SS: 10ec:b852 Windows: PCI\VEN_10EC&DEV_B852&SUBSYS_B85210EC
FCCID	TX2-RTL8852BE
ICID	6317A-RTL8852BE
Chip1	Realtek RTL8852BE
OUI: none specified
Antenna Connection	MHF4
MIMO status	2x2:2
Wireless Standards	IEEE 802.11a/b/g/n/ac/ax
802.11ax	up to 574/1148 Mbps
802.11ac	up to 867 Mbps
802.11n	up to 300/300 Mbps
802.11g	up to 54 Mbps
802.11b	up to 11 Mbps
802.11a	up to 54 Mbps
Operating Frequency	2.4 or 5 GHz
Other
Flags: Wi-Fi 6, WPA3, MU-MIMO, HE80, Bluetooth 5.0
UART	has accessible UART
Probable Linux driver rtw89 (5.16-rc+) (see also passys)
Windows driver Win 10 (64-bits)
Retail
Availability	reference design
FCC approval date	13 August 2021
Country of manuf	China
FCC ID AzureWave AW-XB547NF TX2-RTL8852BE Radxa Wireless Module A8 TX2-RTL8852BE

For a list of all currently documented Realtek chipsets with specifications, see Realtek.

For a list of all currently documented Realtek device with specifications, see Realtek.

• 1201 Mbps - 2SS 5GHz 802.11ax (80MHz chan., 1024-QAM)

• 574 Mbps - 2SS 2.4GHz 802.11ax (40MHz chan., 256-QAM) = AX1800 class

Overview

• Realtek#ax RTL8852BE - PCIe 2.0 (WLAN)/USB 2.0 (BT)/UART

802.11abgn+ac+ax 2T2R (2x2:2), Wi-Fi 6, MU-MIMO, BT 5.0

• Realtek RTL8852BE Combo Module (Wi-Fi 6, AX1800, 2T2R 2.4/5GHz, BT)

802.11ax RTL8852BE Combo Module (NGFF 2230, PCIe/USB, MHF4)

FCC ID: TX2-RTL8852BE (2021-08-13) • IC ID: 6317A-RTL8852BE

See also: Realtek reference design

Drivers

• PCI ID: 10ec:a852 on station-drivers (DH)

• Realtek-RTL8852BE-8852AE-8852CE

:;RTL8852BE
PCI\VEN_10EC&DEV_B852&SUBSYS_B85210EC [10ec:b852/10ec:b852]
PCI\VEN_10EC&DEV_B852&SUBSYS_B85B10EC ;;1T1R [10ec:b852/10ec:b85b]
:;ASUS
PCI\VEN_10EC&DEV_B852&SUBSYS_54711A3B ;;AzureWave [10ec:b852/1a3b:5471]
PCI\VEN_10EC&DEV_B852&SUBSYS_54731A3B ;;AzureWave [10ec:b852/1a3b:5473]
PCI\VEN_10EC&DEV_B852&SUBSYS_B81111AD ;;Lite-On [10ec:b852/11ad:b811]
PCI\VEN_10EC&DEV_B852&SUBSYS_E111105B ;;Foxconn [10ec:b852/105b:e111]
PCI\VEN_10EC&DEV_B852&SUBSYS_E113105B ;;Foxconn [10ec:b852/105b:e113]
:;AzureWave
PCI\VEN_10EC&DEV_B852&SUBSYS_54701A3B [10ec:b852/1a3b:5470]
PCI\VEN_10EC&DEV_B852&SUBSYS_54721A3B [10ec:b852/1a3b:5472]
PCI\VEN_10EC&DEV_B852&SUBSYS_54801A3B [10ec:b852/1a3b:5480]
:;AMD
PCI\VEN_10EC&DEV_B852&SUBSYS_B88510EC [10ec:b852/10ec:b885]
:;ACER
PCI\VEN_10EC&DEV_B852&SUBSYS_B88610EC [10ec:b852/10ec:b886]
:;DELL
PCI\VEN_10EC&DEV_B852&SUBSYS_B88710EC [10ec:b852/10ec:b887]
PCI\VEN_10EC&DEV_B85B&SUBSYS_B88110EC ;;1T2R [10ec:b852/10ec:b881]
:;HP
PCI\VEN_10EC&DEV_B852&SUBSYS_88E3103C ;;2T2R, MP [10ec:b852/103c:88e3]
PCI\VEN_10EC&DEV_B85B&SUBSYS_88E6103C ;;1T1R [10ec:b852/103c:88e6]
:;NEC
PCI\VEN_10EC&DEV_B852&SUBSYS_B05210EC [10ec:b852/10ec:b052]
:;Fujitsu
PCI\VEN_10EC&DEV_B852&SUBSYS_B15210EC [10ec:b852/10ec:b152]
PCI\VEN_10EC&DEV_B852&SUBSYS_00AB1E26 [10ec:b852/1e26:00ab]
:;Dynabook
PCI\VEN_10EC&DEV_B852&SUBSYS_B25210EC [10ec:b852/10ec:b252]
:;Lenovo
PCI\VEN_10EC&DEV_B852&SUBSYS_485317AA [10ec:b852/17aa:4853]
:;HONOR
PCI\VEN_10EC&DEV_B852&SUBSYS_24781057 [10ec:b852/1057:2478]
:;Xiaomi
PCI\VEN_10EC&DEV_B852&SUBSYS_C8261D3E [10ec:b852/1d3e:c826]
