Orange Pi RV

From TechInfoDepot
Jump to navigationJump to search
abgn+ac (AC600)
High Performance Open Source RISC-V SBC

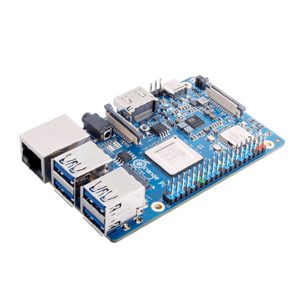

Orange Pi RV.png
Homepage Product page
3rd Party Firmware
dd-wrt Status Unknown
OpenWrt Status Unknown
Tomato any flavor Incompatible
Platform
BrandModelRev Orange Pi RV (v1.3)
FCC ID none specified
Type single-board computer
CPU1 Question? StarFive JH7110
CPU1 Speed 1.5 GHz ( 4 cores )
Flash1 Chip GigaDevice GD25LQ128ESIG
Flash1 Size 16 MiB16,777,216 B <br />131,072 Kib <br />16,384 KiB <br />128 Mib <br />0.0156 GiB <br />
RAM1 Size 4 GiB 4,096 MiB <br />4,294,967,296 B <br />33,554,432 Kib <br />4,194,304 KiB <br />32,768 Mib <br />
RAM1 Chip Micron MT53D1024M32D4DT-046 WT:D
ETH chip1 StarFive JH7110
ETH chip2 Motorcomm YT8531C
Ethernet Port Count 1-1GbE-LAN
Wired Standard IEEE 802.3i/3u/3ab

802dot11 OUI: none specified

Stock bootloader U-Boot 2021-10
Stock FW OS Linux 5.15.0-starfive2 Debian 12
Expansion IF types Mini PCIe (NGFF M.2), USB 3.0, USB 2.0, Micro SD Card slot, HDMI 2.0
USB ports 5
SD/MMC Slots 1
M.2 Slots 2
HDMI 1
USB Hub Compatible Untested
Power 5 VDC, 4 A
Connector type USB (Type C) Female
Serial Port (UART) yes, 3-pin header, populated, 3.3V TTL, (115200 8N1)

Flags:
Micro SD Card slot, HDMI 2.0, MIPI DSI, MIPI CSI, WiFi 5, Bluetooth 5.2, Audio out (3.5mm)

Additional chips
1Mbit SPI Flash;Macronix;MX25L1006E;;1;
Super Speed USB 3.0 Host Controller;VIA;VL805;;1;
PMIC for Multi-Core High Performance System;X-Powers;AXP15060;;1;,I2C, UART, GPIO

Other

Default IP address: acquired via DHCP
the IP acquired via DHCP is used by 228 additional devices
of which 5 are Orange Pi devices
Default login user: root
Default login password: orangepi
root:orangepi credentials used by 13 additional devices
of which 13 are Orange Pi devices

Manuf/OEM/ODM Shenzhen Xunlong
Retail
(Est.) release date March 2025
(Est.) initial retail price (in USD): $40
ASIN B0F2HHYRFF Flag of the United States.svg
Country of manuf China
Radio 1
Radio1 module AMPAK AP6256
Radio1 module IF SDIO 2.0
Chip1 Broadcom BCM43456
Wireless interface OUI none specified
Antenna Connector Type MHF4
MIMO status 1x1:1
Wireless Standard IEEE 802.11a/b/g/n/ac
802.11ac up to 433 Mbps
802.11n up to 150 Mbps
802.11g up to 54 Mbps
802.11b up to 11 Mbps
802.11a up to 54 Mbps
WiFi Operating Frequency 2.4 or 5 GHz

For a list of all currently documented Broadcom chipsets with specifications, see Broadcom.
Motorcomm not currently documented.
For a list of all currently documented StarFive chipsets with specifications, see StarFive.

For a list of all currently documented Orange Pi devices with specifications, see Orange Pi.

433 Mbps - 1SS 5GHz 802.11ac (80MHz chan.),
150 Mbps - 1SS 2.4GHz 802.11n (40MHz chan.) = AC600 class

Overview

OrangePi logo and "OPI RV V1.3" are on top of board.

Hardware specification

SoC: Quad-Core RISC-V (RV64GC) 64-bit
  • GPU: Imagination BXE-4-32 @600MHz
(OpenGL ES3.2, OpenVG 1.2, Vulkan 1.2)
VPU: H.264/H.265 decoder up to 4Kp30,
H.265 encoder up to 1080p30
TF card (max.128GB)/MMC card slot,
802.11abgn/ac (1T1R) + BT 5.2 Combo SiP Module
  • Network: 1x GbE ports
  • PCIe: NGFF M.2 (Key M) socket w/ PCIe 2.0
  • USB: 4x USB 3.0, 1x USB (Type-C) 2.0 ports
  • GPIO: 1x 40-pin headers
  • Power Source: 5V/4A via USB (Type-C)
